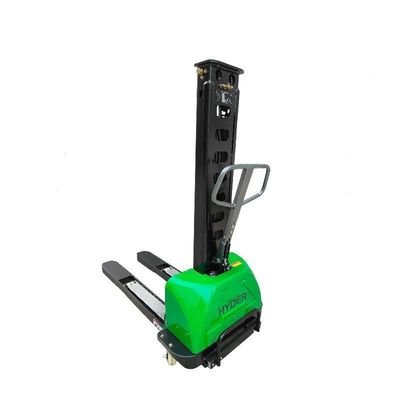

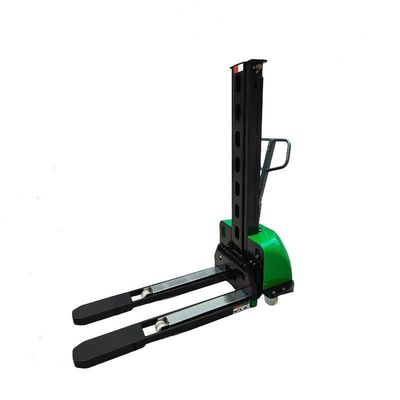

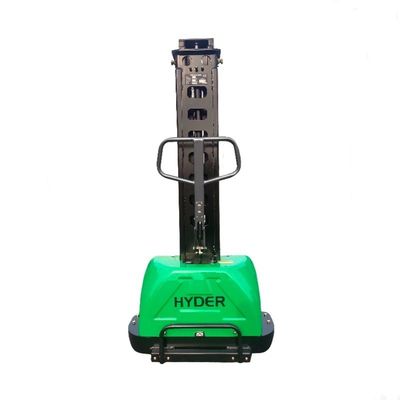

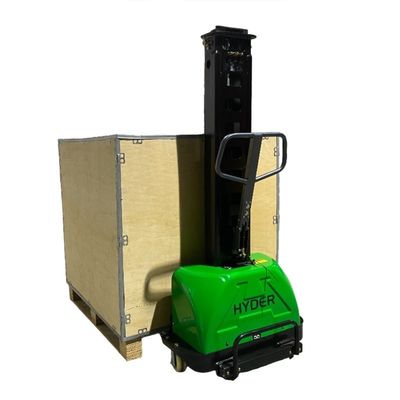

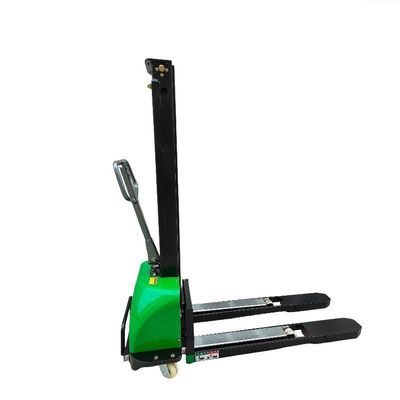

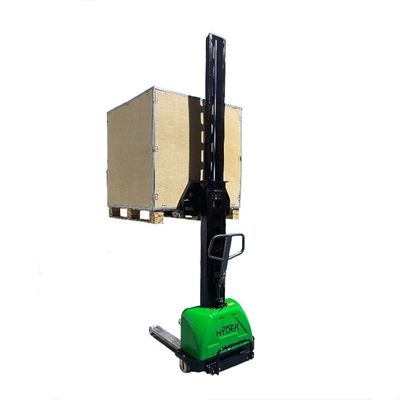

Semi Electric Stacker 500kg 800mm Forklift Self Lifting Loading Equipment for Warehouse
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLS500 | Type | Stacker |
|---|---|---|---|
| Power | Semi Electric | Load Capacity | 500kgs |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800mm | Condition | New |
| Product Name | 500kg 800mm 1000mm 1300mm Semi Electric Portable S | Model | Hsls500 |
| Material Of Wheels | Polyurethane | Battery | 12V / 45ah |
| Charger | Included | Lifting Height | 800/1000/1300mm/1600mm |
| Fork Length | 1250mm | Weight | 193kgs |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 1650*786*1180(H)mm |
| Trademark | HYDER | Origin | China |
| HS Code | 84272099 | Supply Ability | 3000units/Year |
| Package Size | 165.00cm * 80.00cm * 118.00cm | Package Gross Weight | 193.000kg |
| Customization | Available | After-sales Service | 100% In Warranty |
| Warranty | 1 Year After Delivery | Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. |
| Support Payment In USD | Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | |
| Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description
Factory Equipment 500kg 800mm Forklift Self Lifting Loading Stacker
Semi-electric stacker is an important equipment widely used in the modern logistics and storage industry. It occupies a place in the industry due to its moderate price and small size. It is mainly used in logistics handling places such as warehouses and workshops. The battery is not used as a power source, driven by a DC motor, and the oil pump is driven to supply pressure, and the walking is driven by manpower. It is suitable for short-distance pallet transportation and stacking operations, and requires flat ground, and is now only allowed to operate inside the warehouse.
Hyder New design :
| Semi Electric Self Loading Pallet Stacker-HSLS500 | |||||
| Features | 1.1 | Model | HSLS500 | ||
| 1.2 | Motor | Battery | |||
| 1.3 | Rated load capacity | Q | kg | 500 | |
| 1.4 | Load centre | c | mm | 400 | |
| 1.5 | Wheel distance | L0 | mm | 815 | |
| 1.6 | Front wheel distance | W1 | mm | 380 | |
| 1.7 | Back wheel distance | W2 | mm | 665 | |
| 1.8 | Operator type | Walkie | |||
| Size | 2.1 | Front wheel size | mm | φ70×60 | |
| 2.2 | Multi direction wheels | mm | φ100×45 | ||
| 2.3 | Middle wheel size | mm | φ40×25 | ||
| 2.4 | Fork length | mm | 1000 | ||
| 2.5 | Max fork lifting height | H | mm | 800/1000/1300 | |
| 2.6 | For outside width | W3 | mm | 540 | |
| 2.7 | Fork length | L2 | mm | 1150 | |
| 2.8 | Fork Thickness | B1 | mm | 60 | |
| 2.9 | Fork width | B2 | mm | 155 | |
| 2.1 | Total length | L1 | mm | 1570 | |
| 2.11 | Total width | W | mm | 786 | |
| 2.12 | Total height( Mast closed) | H1 | mm | 1150/1297/1597 | |
| 3.1 | Lifting speed | mm/s | 55 | ||
| 3.2 | Lowering speed | mm/s | 70 | ||
| 3.3 | Lifting motor | kw | 0.8 | ||
| 3.4 | Battery voltage | V | 12 | ||
| 3.5 | Battery capacity | Ah | 45 | ||
| Weight | 4.1 | Battery weight | kg | 13.5 | |
| 4.2 | Truck weight(battery included) | kg | 230/240/255 | ||
Portable Self lifting Semi Electric Stacker :HSLS500
Full Electric Lifting Stackers 0.5T and 1.0T HSLF500&HSLF1000 Also Instock
Hyder is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
