Power Source Mosfet/Pmsm 2650kgs Cpd Z Series Lifting Equipment Electric Forklift Truck

 Export CPD Z Series Lifting Equipment 1500KG to 5000KG Electric Forklift Truck

Product Description

HYDER Electric Forklifts CPD Z Series is built on IC truck chassis and euipped with a streamlined design counterweight, more durable and greater maneuverability in confined spaces. Complete series from 1.5tons to 5tons, widely applied to construction sites, farm sites and outdoor services. Felixiable lithium battery capacity available for all kind working condition, from 206Ah to 480Ah for working 4-8hours, quick charge and environmentally friendly to most countries

CPD 15Z  ELECTRIC FORKLIFT SPECIFICATION
Manufacturer				Hyder
1	Characteristics
2	Model			CPD15Z
3	driving mode			seated
4	rated capacity	Q	kg	1500
5	load center distance	C	mm	500
6	power mode			lithium battery
7	wheelbase	L1	mm	1450
8	Tyre
9	tyre type			Pneumatic
10	wheels number(front/rear)			2/2
11	front track	W3	mm	890
12	rear track	W2	mm	920
13	tyre(front)			6.50-10
14	tyre(rear)			5.00-8
15	Size
16	front overhang	L2	mm	430
17	tilt of the mast,front/rear	α/β	°	6/12
18	height,mast retraction	H1	mm	1995
19	free lift height	H3	mm	70
20	overall maximum lift height	H	mm	3000
21	height,mast extended	H2	mm	4030
22	overhead guard height	H4	mm	2085
23	lateral Fork Adjustment(Outside of Forks)Max/Min	W5	mm
24	fork size(LxWxT)	T*W*L4	mm	35*100*920
25	truck body length(fork excluded)	L'	mm	2277
26	truck body width	W1	mm	1085
27	turning radius	R	mm	2000
28	groubd clearance under mast	H5	mm	/
29	Ground clearance at center of wheelbase(laden)	H6	mm	110
30	Min. width of aisle angle stacking		mm	1770
31	width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	Ast	mm	/
32	width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	Ast	mm	/
33	Performance
34	travel speed,laden/unladen		km/h	12/15
35	lifting speed,laden/unladen		mm/s	280/320
36	lowering speed,laden/unladen		mm/s	400/350
37	maximum negoniable gradient,laden/unladen		%	15/15
38	Weight
39	service mass(with battery)		kg	2650
40	battery voltage /nominal capacity		V/Ah	48V350AH
41	battery weight		kg	134
42	Electrical configuration
43	drive motor power-60 minutes		kW	8.2
44	lift motor  power-15 minutes		kW	10.6
45	drive motor controlling mode			MOSFET/PMSM
46	lifting motor controlling mode			MOSFET/PMSM
47	service brake/parking brake			Hydraulic/Mechanial

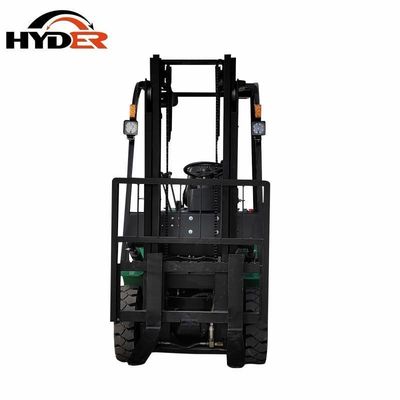

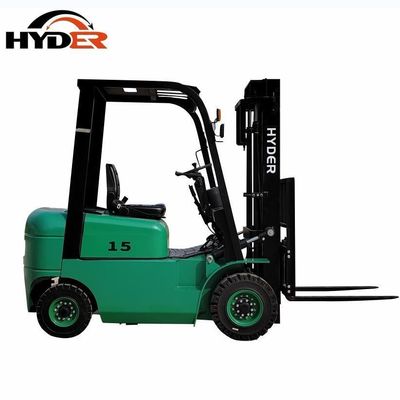

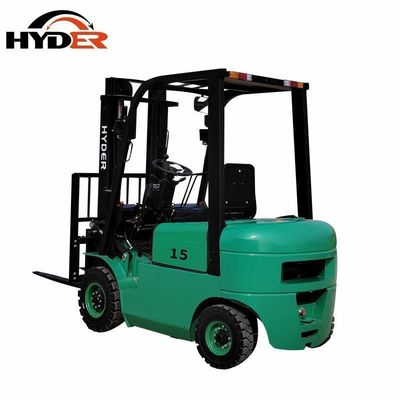

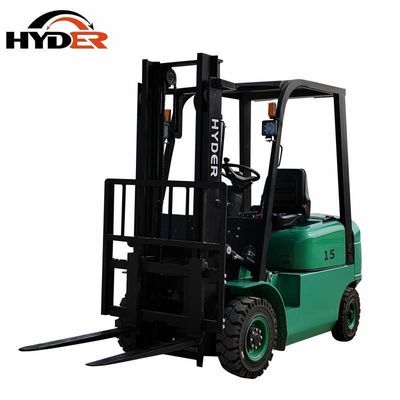

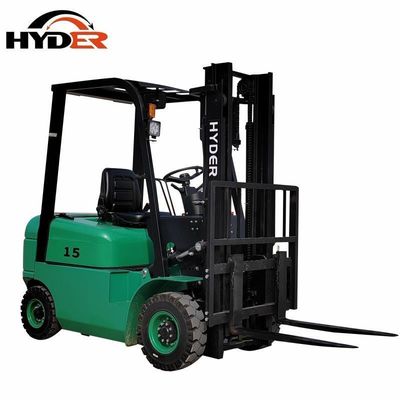

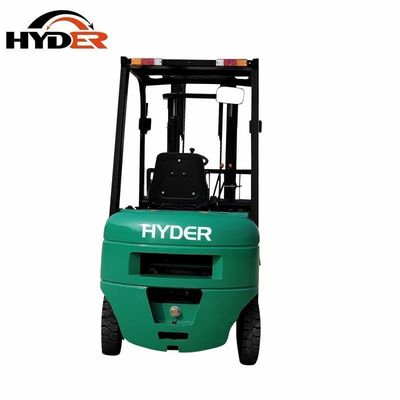

Detailed Photos









HYDER Work Shop Produce Line

The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
