Electric Pallet Forklift 2ton 2000kg with AC Motor and Lifting Height From 6m to 14m
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | NA20 | Type | Narrow Aisle Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 2.0t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 6000-1400mm | Condition | New |
| Name | Narrow Aisle Forklift | Drive Motor | AC Motor |
| Lift Motor | AC Motor | Tire Type | No Mark Solid Tire |
| Battery | 80V/500ah | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2780*1220*2270mm | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year | Package Size | 278.00cm * 122.00cm * 227.00cm |
| Package Gross Weight | 7400.000kg | Customization | Available |
| After-sales Service | 1 Year After Delivery | Warranty | 12 Months |
| Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. | Support Payment In USD | |
| Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description

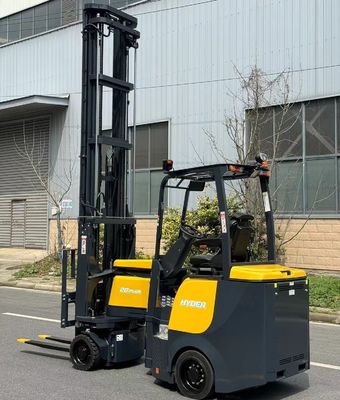

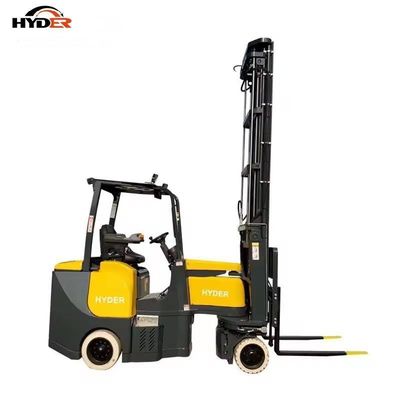

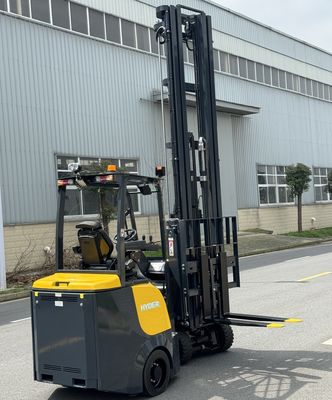

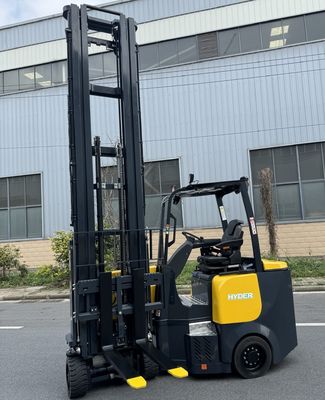

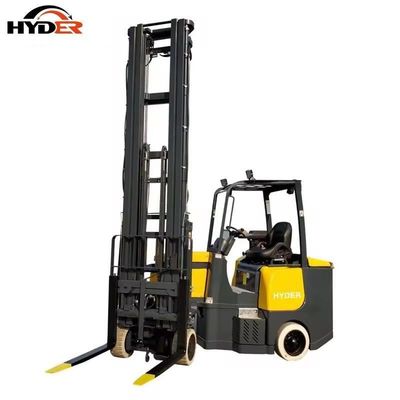

Articulated Forklift Truck 2ton 2000kg Warehouse Narrow Aisle Electric Pallet Forklift with Lifting Height from 6m to 14m
Articulated Narrow Aisle Forklifts combine the advantages of counterbalanced forklifts and electric stackers. Therefore, it has some advantages in use, and can have good operational flexibility and high load. At the same time, the volume and dead weight of the vehicle will not increase much, which can effectively save the working space, thereby improving the utilization rate of the space in the warehouse.
LED Light Fork
Operation and driving Mast
| Specification | ||||
| 1 | Manufacturer | -- | HYDER | |
| 2 | Model | NA20 | ||
| 3 | Capacity | kg | 2000 | |
| 4 | Light height | mm | 6000/7000/8000/9000/10000/14000 | |
| 5 | Free lift | mm | 1965 | |
| 6 | Mast closed height | mm | 2865 | |
| 7 | Extended height | mm | 7261 | |
| 8 | Overall length | mm | 2780 | |
| 9 | Ground clearance | mm | 50 | |
| 10 | Overhead guard height | mm | 2270 | |
| 11 | Chassis width rear | mm | 1220 | |
| 12 | Chassis width front | mm | 980 | |
| 13 | Load center | mm | 600 | |
| 14 | Wheel base | mm | 1735 | |
| 15 | Seat height | mm | 1220 | |
| 16 | Mast tilt(back/fwd) | degree | 3/1 | |
| 17 | Rotate angle (left/right) | degree | 220 | |
| 18 | Ground speed | Km/h | 16 | |
| 19 | Lift speed(load/unload) | m/s | 0.44/0.5 | |
| 20 | Front tyre size | mm | 412*174 | |
| 21 | Rear tyre size | mm | 457*150 | |
| 22 | Grade ability(load/unload) | % | 18/20 | |
| 23 | Battery voltage/capacity | V/Ah | 80V/500AH | |
| 24 | Weight including battery | kg | 7400 | |
| 25 | Weight excluding battery | 5800 | ||
| 26 | Traction motor | AC | 19.5kw | |
| 27 | Lifting motor | AC | 15kw | |
| 28 | Aisle width | mm | 1960 | |
| 29 | Transfer aisle | mm | 2700 | |
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5:Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
