2 Ton Reach Truck Forklift Counterbalance Pallet Stacker for Narrow Aisle Warehouse
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTFA20 | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1.6-2.0t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 3000~5000mm | Condition | New |
| Name | 1ton Walkie Electric Stacker | Model | Htb10e |
| Lifting Height | 3.5m | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2110X850X2070MM | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year | Package Size | 330.00cm * 115.00cm * 280.00cm |
| Package Gross Weight | 2050.000kg | Lead Time | 1 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
| Customization | Available | After-sales Service | Available |
| Warranty | 12 Months | Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. |
| Support Payment In USD | Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | |
| Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description

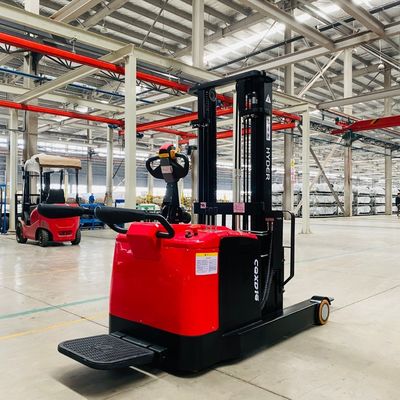

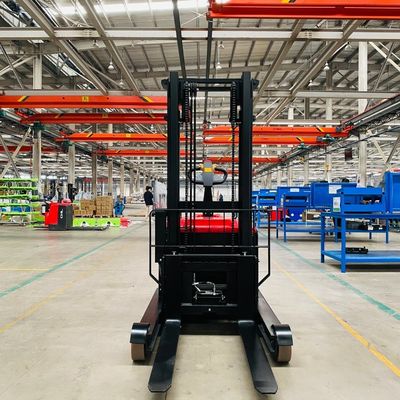

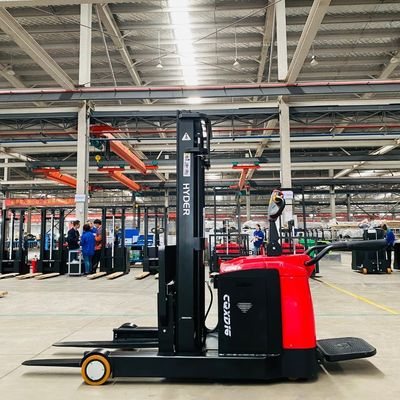

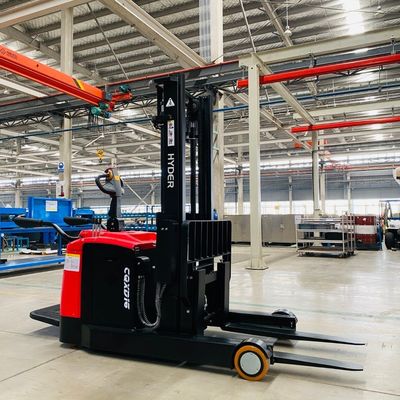

Narrow aisle walkie standing on Counterbalanced Stacker for warehouse
The electric stacker is a kind of industrial storage equipment powered by a motor and powered by a battery. Its main function is to carry out operations such as stacking, unloading, and handling with pallets. It is an industrial vehicle required by modern factories, workshops, and warehouses. Electric stackers are widely used in factories, workshops, warehouses, distribution centers and distribution centers, ports, docks, stations, airports and other places that require logistics, and can enter containers and warehouses for operation.
Hyder Electric Walkie Pallet Stacker
Hyder walkie forklift or walk-behind pallet truck is oftentimes used for transporting products over short distances and lifting
pallets where a traditional forklift isn't necessary.
* Max load capacity: 1600/2000kg
* Max lifting height 5M
* Lead acid battery 24V 240AH
* Working hours: 5-6hours
* Work for single deck pallets
* Small turning radius
*Energy -saving design
*24V/ electrical system
*High-strengthen cover
*Rema handle bar
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
*Maintenance free battery
Hyder walkie forklift or walk-behind pallet truck is oftentimes used for transporting products over short distances and lifting
pallets where a traditional forklift isn't necessary.
* Max load capacity: 1600/2000kg
* Max lifting height 5M
* Lead acid battery 24V 240AH
* Working hours: 5-6hours
* Work for single deck pallets
* Small turning radius
*Energy -saving design
*24V/ electrical system
*High-strengthen cover
*Rema handle bar
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
*Maintenance free battery
| HTFA20 ELECTRIC FORKLIFT SPECIFICATION | ||||
| Performance | Rated load capacity | Q | kg | 2000 |
| with load center at | C | mm | 600 | |
| Lifting height | H3 | mm | 5000 | |
| Reach length | E | mm | 680 | |
| Tiltiing angle (up/down) | α/β | 4°/ 2° | ||
| Travel speed (without load) | km/h | 6 | ||
| Travel speed (with load) | km/h | 6 | ||
| Lifting speed (without load) | mm/s | 160 | ||
| Lifting speed (with load) | mm/s | 100 | ||
| Ascend slope ability (without load ) | % | 8 | ||
| Ascend slope ability (with load ) | % | 4 | ||
| Weight (without battery) | kg | 1780 | ||
| Dimensions | Overall length of frame(mast no reach) | L | mm | 2445 |
| Overall length (mast no reach) | L1 | mm | 2865 | |
| Overall length (mast reach) | L2 | mm | 3520 | |
| Overall width of frame | B | mm | 1030 | |
| Overhead guard height | mm | / | ||
| Mast lowered height | H1 | mm | 2298 | |
| Max height(mast lifted with backrest) | H2 | mm | 5855 | |
| Wheelbase | Y | mm | 1612 | |
| Fork length | mm | 1070 | ||
| Fork width | e | mm | 122 | |
| Fork lowered height | S | mm | 40 | |
| Fork spread width | mm | 250-740 | ||
| Min frounf height | m1 | mm | 52 | |
| Turning radius | Wa | mm | 1890 | |
| Min intersecting aisle width | Ast | mm | 2990 | |
| Tire | Front wheel | mm | ∅210*85 | |
| Drive wheel | mm | ∅230*75 | ||
| Caster wheel | mm | ∅115*55 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 1.5 | ||
| Hoist motor type | DC series motor | |||
| Rated output | kw | 3 | ||
| Battery | Voltage | V | 24 | |
| Capacity | AH | 240 | ||
| Weight | kg | 233 | ||
| Drawing size & Capacity Chart | ||||
HYDER mainly engaged in global warehousing and logistics business, and has 17+ years experiences forklift.Hyder products are Pallet truck series, Stacker series and Electric forklift series. All of them have passed the CE, BV, ISO and third-party detection institution test and certificate.
Hyder professional markting anlysis, sales, QC Systems and after-sales service teams online 24*7, whom providing high effecieny reply and solve customers proble, every forklift will be delivered after qualifying testing, so Hyder offers qualified products for the customers in more than 40 countries where the sales network has built, and get well-known repuation from Hyder servered customers.
Shaanxi hyder Intelligent Machinery Co., Ltd. based on responsible and diligent attitude towards each customer, which mission is becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company ,offices brancheds located in Shanghai,Anhui,Shannxi.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
