Electric Self Loading Stacker 700 Kg Fuel Electric Lift Height 800/1000/1300/1600mm
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLF700 | Type | Electric Forklift |
|---|---|---|---|
| Power | AC Motor/DC Motor | Load Capacity | ≤1T |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800/1000/1300/1600mm | Condition | New |
| Name | Electric Straddle/Walkie Stacker | Battery | Full Electric |
| Color | Yellow, Green, Etc | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2110X850X2070MM | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year | Package Size | 181.00cm * 80.00cm * 200.00cm |
| Package Gross Weight | 890.000kg |
Product Description

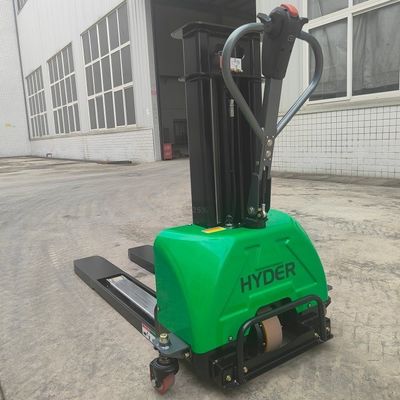

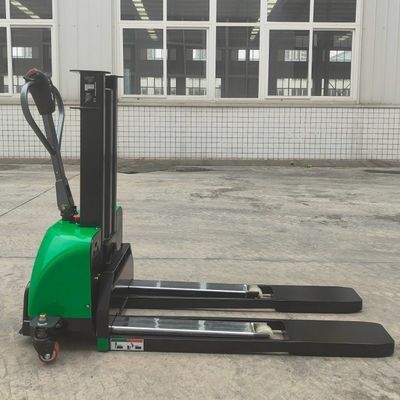

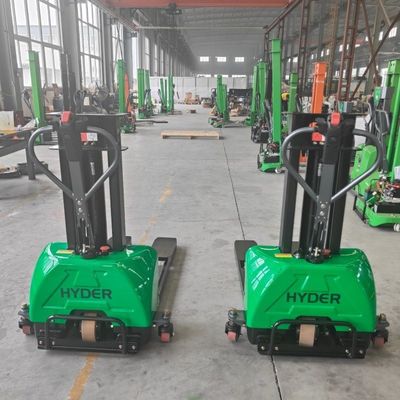

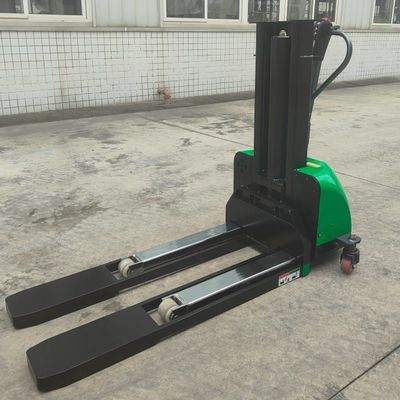

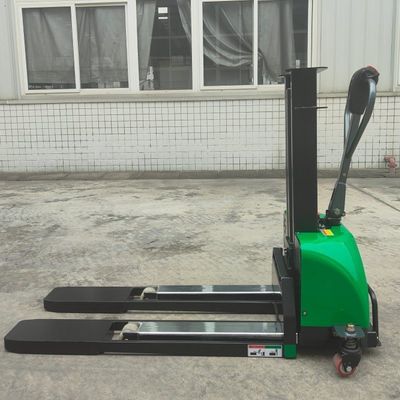

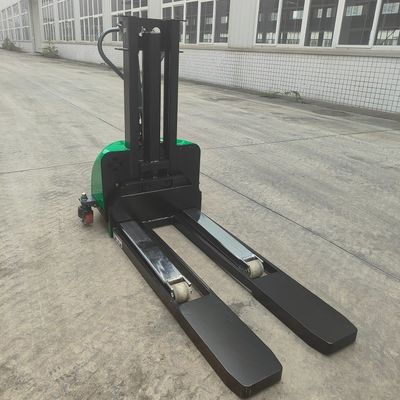

Van Truck Other Vehicles Electric Self Loading Stacker 700 Kg
Self-lift function
It can easily lift by itself to truck or other vehicles then deliver cargo to customers' door by it. This changes traditionallogistics means and saves logistics cost.
Light design in weight
Any adult can operate it easily and it is deft and smooth during operation
Any adult can operate it easily and it is deft and smooth during operation
Double-control switch design
This will make operation more efficient and safety
This will make operation more efficient and safety
Max capacity 500kg, 700kg, 1000kg
It can satisfy 80% of logistics demands
It can satisfy 80% of logistics demands
Large capacity lithium battery 48V/15Ah
It can make sure the operation time is longer during logistics distribution and quick recharge within 2 hours
It can make sure the operation time is longer during logistics distribution and quick recharge within 2 hours
Full electric in driving and lifting
More and fast delivery efficiency
More and fast delivery efficiency
| Specification | |||||
| 1 | Standard | ||||
| 1.1 | Brand | HYDER | |||
| 1.2 | Model | HSLF700 | |||
| 1.3 | Power unit | battery | |||
| 1.4 | Operation type | Walkie | |||
| 1.5 | Load capality | Q (kg) | 700 | ||
| 1.6 | Load center | C (mm) | 400 | ||
| 1.7 | Front wheel tread | W1 (mm) | 405/525 | ||
| 1.8 | Rear wheel tread | W2 (mm) | 752/820 | ||
| 1.9 | Wheelbase | L0 (mm) | 912 | ||
| 2 | Dimension | ||||
| 2.1 | Tire type | front/rear | Nylon/PU | ||
| 2.2 | Tire no. Driving wheel/front wheel/middle wheel/balanced wheel/ | pcs | 1/2/2/2 | ||
| 2.3 | Front wheel | mm | φ80×60 | ||
| 2.4 | Universal wheel | mm | φ75×50 | ||
| 2.5 | Middle wheel | mm | Φ42×30 | ||
| 2.6 | Driving wheel | mm | Φ185×70 | ||
| 2.7 | Leg length | L3 (mm) | 760 | ||
| 2.8 | Middle wheels position | L4 (mm) | 160 | ||
| 2.9 | Lift height | H (mm) | 800/1000/1300/1600 | ||
| 2.10 | Overall Height (Mast Closed) | H1 (mm) | 1155/1355/1655/1955 | ||
| 2.11 | Overall Height(Mast extended) | H2 (mm) | 1875/2275/2875/3475 | ||
| 2.12 | Fork outside width | W3 (mm) | 565/685 | ||
| 2.13 | Fork length | L2 (mm) | 1195 | ||
| 2.14 | Fork thickness | B1 (mm) | 60 | ||
| 2.15 | Fork width | B2 (mm) | 190 | ||
| 2.16 | Fork height above ground | H4 (mm) | 81 | ||
| 2.17 | Total Length | L1 (mm) | 1595 | ||
| 2.18 | Total Width | W (mm) | 802/870 | ||
| 2.19 | Body thickness | L6 (mm) | 400 | ||
| 2.20 | Min. turning radius | Wa(mm) | 1090 | ||
| 3 | Performance&Configuration | ||||
| 3.1 | Lifting Speed | mm/s | 55 | ||
| 3.2 | Descent Speed | mm/s | 100 | ||
| 3.3 | Lift Motor | kw | DC0.8 | ||
| 3.4 | Driving Motor | kw | DC0.6 | ||
| 3.5 | Max. speed(Turtle speed / full-load) | Km/h | 1/3.5 | ||
| 3.6 | Grade Ability(Full-load/NO-load) | % | 5/10 | ||
| 3.7 | Battery voltage/capacity | V/Ah | 48/15 Li-ion | ||
| 3.8 | Battery Charger | YES | |||
| 4 | Weight | ||||
| 4.1 | Battery weight | kg | 5 | ||
| 4.2 | Service weight(battery included) | kg | 266/274/286/300 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
