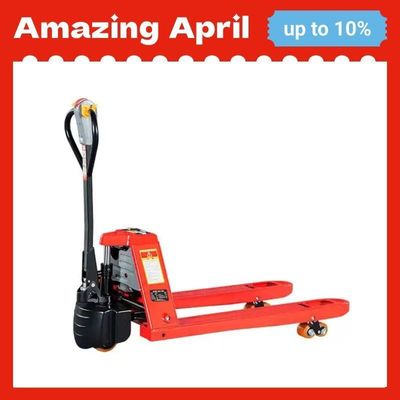

1.5t Load Capacity Electric Pallet Jack 48V/10ah Lithium Battery Limited Time Offer
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CBD15 | Type | Pallet Jack |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 1.5t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 85-195mm | Condition | New |
| Name | 1.5t Electric Pallet Truck | Model | Cbd15 |
| Drive Motor | DC Motor | Battery | 48V/10h 48V/15ah |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 1653X685X1130MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84271000 | Supply Ability | 3000 Sets/Year |
| Package Size | 2080.00cm * 565.00cm * 910.00cm | Package Gross Weight | 600.000kg |
| Customization | Available | After-sales Service | 100% In Warranty |
| Warranty | 12 Months | Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. |
| Support Payment In USD | Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | |
| Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description
Battery Pallet Forklift 2 Ton Electric Pallet Truck Equipment 1.5 Ton Pallet Jack
Electric Pallet jacks, also known as electric pallet trucks or powered pallet trucks, are material handling equipment used to move and transport palletized loads within warehouses, distribution centers, and other industrial settings.
| ELECTRIC PALLET TRUCK | ||||
| 1 | Manufacturer | HYDER | ||
| 2 | Model | CBD15(Li) | ||
| 3 | Power type | FULL ELECTRIC | ||
| 4 | Operation | Walkie | ||
| 5 | Load capacity | Q(kg) | 1500 | |
| 6 | Loading center | C(mm) | 600 | |
| 7 | Drive wheel center to fork surface distance | x(mm) | 243.5 | |
| 8 | Wheels base | y(mm) | 1197 | |
| 9 | Service weight(including lithium battery) | kg | 114.5 | |
| 10 | Wheel type | Polyurethane(PU) | ||
| 11 | Driving wheel,number | x w(mm) | ø140*55/1 | |
| 12 | Front wheel,number | x w(mm) | ø80*70/4 | |
| 13 | Front tread | b10 | 390 | |
| 14 | Overall length | l1(mm) | 1552/1622 | |
| 15 | Length from the back to the vertical surface of the fork | l2 | 402 | |
| 16 | Overall width | b1(mm) | 550/685 | |
| 17 | Overall height including handle | mm | 1276 | |
| 18 | Lifting height | h3(mm) | 115 | |
| 19 | Fork Max height | mm | 197 | |
| 20 | Height of control handle in operable position(max/mini) | h14(mm) | 1150/820 | |
| 21 | Fork height at lowest point | h13(mm) | 82(+/-2) | |
| 22 | Fork dimensions | s/e/lmm | 58*160*1150/1220 | |
| 23 | Fork outside space | b5(mm) | 550/685 | |
| 24 | Ground clearance(wheelbase center) | mm | 22 | |
| 25 | Right-angle stack channel width, (pallet size 1000X1200, 1000 placed along cargo fork | mm | 1718 | |
| 26 | Right-angle stack channel width, (pallet size 800X1200, 1200 placed along cargo fork | mm | 1687 | |
| 27 | Turning radius | Wa(mm) | 1353/1426 | |
| 28 | Driving speed ( laden /unladen) | km/h | 4/5 | |
| 29 | Lifting speed ( laden /unladen) | mm/s | 18/23 | |
| 30 | Lowering speed ( laden /unladen) | mm/s | 56/46 | |
| 31 | Gradient ( laden /unladen) | % | 6/20 | |
| 32 | Brake | Electromagnetic brake | ||
| 33 | battery voltage | V/Ah | 48/10 | |
| 34 | Battery weight(+/-5%) | kg | 4.79 | |
| 35 | Driving motor S2 60min | kw | 0.75 /DC Brushless | |
| 36 | lifting motor S3 7% | kw | 0.5 /DC | |
| 37 | Sound pressure level at the driver's ear | dB(A) | <70 | |
| 38 | Charging time | H | 3 | |
Hyder is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
