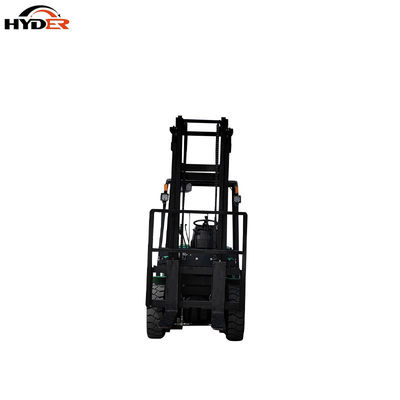

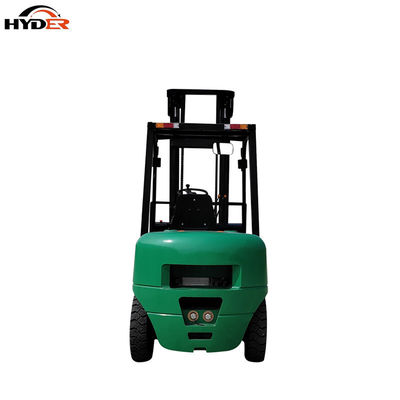

3t 3m Four Wheel Electric Pallet Forklift Truck with Solid Tires and 500mm Load Center
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CPD30Z | Type | Reach Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 3.0t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 3000-6000mm | Condition | New |
| Name | Electric Counterbalanced Forklift | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Tire Type | Solid |
| Color | Green | Battery | Lithium Battery |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2750*1230*2110mm |
| Trademark | HYDER | Origin | China |
| HS Code | 84272099 | Supply Ability | 3000 Sets/Year |
| Package Size | 2.75cm * 1.23cm * 2.11cm | Package Gross Weight | 4320.000kg |
Product Description
High Quality Battery Fork Lift 3t 3m Four Wheel Electric Pallet Forklift Truck Sitting Driving Style
Electric forklift is a dual-purpose electric forklift with the function of loading and unloading and short-distance transportation of goods. It is mainly used in warehousing, logistics, handling and other places. The characteristics of electric forklifts include comfortable operation, high operational stability, easy operation, low noise, no pollution, compact manufacturing structure, flexible transportation of objects, and small turning radius. The use of electric forklifts can reduce the labor input, reduce labor intensity, improve work efficiency, shorten the time for loading and unloading goods, improve work safety, will not pollute the environment, and have zero noise. Electric forklifts can be used for stacking, loading, unloading and handling of goods in various industries such as warehousing, machinery, chemicals, textiles, printing, logistics, and medicine.
Solid Tire Lithium Battery
Operation and driving Dash Board
LED Light Intergrated Guard
| CPD 30Z ELECTRIC FORKLIFT SPECIFICATION | ||||
| 1 | Characteristics | |||
| 2 | Model | CPD30Z | ||
| 3 | driving mode | seated | ||
| 4 | rated capacity | Q | kg | 3000 |
| 5 | load center distance | C | mm | 500 |
| 6 | power mode | lithium battery | ||
| 7 | wheelbase | L1 | mm | 1775 |
| 8 | Tyre | |||
| 9 | tyre type | Pneumatic | ||
| 10 | wheels number(front/rear) | 2/2 | ||
| 11 | front track | W3 | mm | 1000 |
| 12 | rear track | W2 | mm | 970 |
| 13 | tyre(front) | 28*9-15 | ||
| 14 | tyre(rear) | 6.50-10 | ||
| 15 | Size | |||
| 16 | front overhang | L2 | mm | 465 |
| 17 | tilt of the mast,front/rear | α/β | ° | 6/12 |
| 18 | height,mast retraction | H1 | mm | 2110 |
| 19 | free lift height | H3 | mm | 80 |
| 20 | overall maximum lift height | H | mm | 3000 |
| 21 | height,mast extended | H2 | mm | 4270 |
| 22 | overhead guard height | H4 | mm | 2110 |
| 23 | lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1100/244 |
| 24 | fork size(LxWxT) | T*W*L4 | mm | 45*122*1220 |
| 25 | truck body length(fork excluded) | L' | mm | 2750 |
| 26 | truck body width | W1 | mm | 1230 |
| 27 | turning radius | R | mm | 2530 |
| 28 | groubd clearance under mast | H5 | mm | 140 |
| 29 | Ground clearance at center of wheelbase(laden) | H6 | mm | 132 |
| 30 | Min. width of aisle angle stacking | mm | 2110 | |
| 31 | width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | 4150 |
| 32 | width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | 4350 |
| 33 | Performance | |||
| 34 | travel speed,laden/unladen | km/h | 4320 | |
| 35 | lifting speed,laden/unladen | mm/s | 76.8V270AH | |
| 36 | lowering speed,laden/unladen | mm/s | 300 | |
| 37 | maximum negoniable gradient,laden/unladen | % | 15/20 | |
| 38 | Weight | |||
| 39 | service mass(with battery) | kg | 4580 | |
| 40 | battery voltage /nominal capacity | V/Ah | 76.8V270AH | |
| 41 | battery weight | kg | 300 | |
| 42 | Electrical configuration | |||
| 43 | drive motor power-60 minutes | kW | 10 | |
| 44 | lift motor power-15 minutes | kW | 10 | |
| 45 | drive motor controlling mode | MOSFET/PMSM | ||
| 46 | lifting motor controlling mode | MOSFET/PMSM | ||
| 47 | service brake/parking brake | Hydraulic/Mechanial | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
