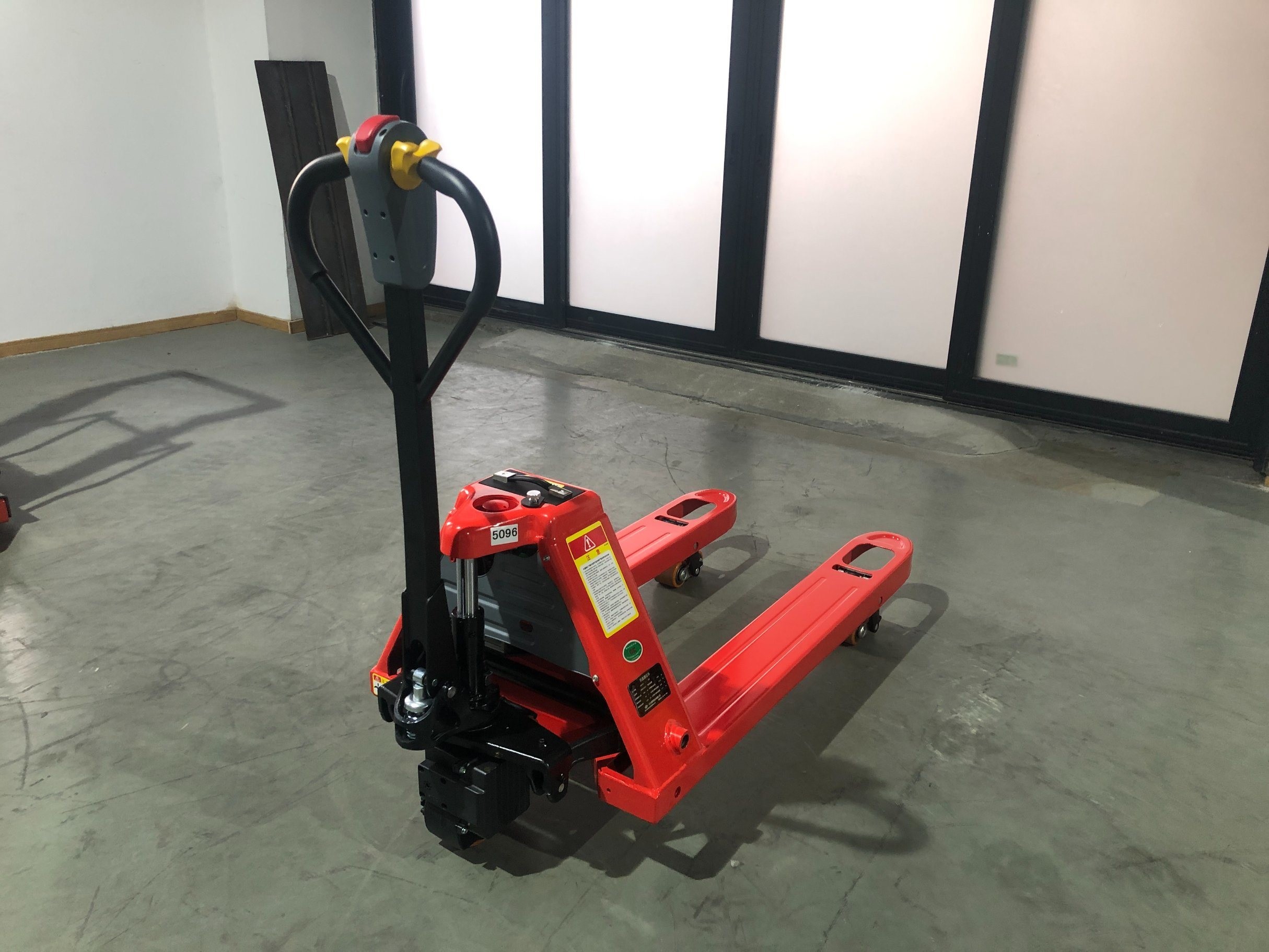

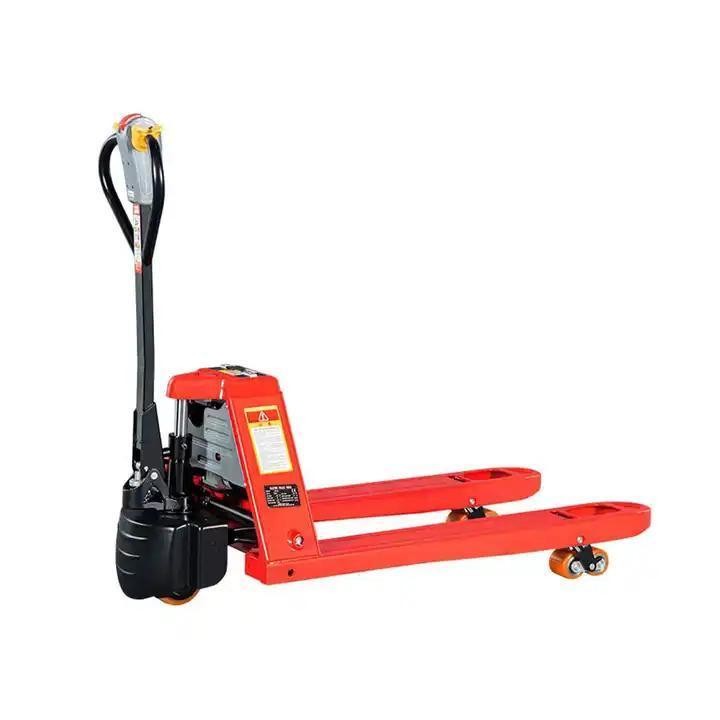

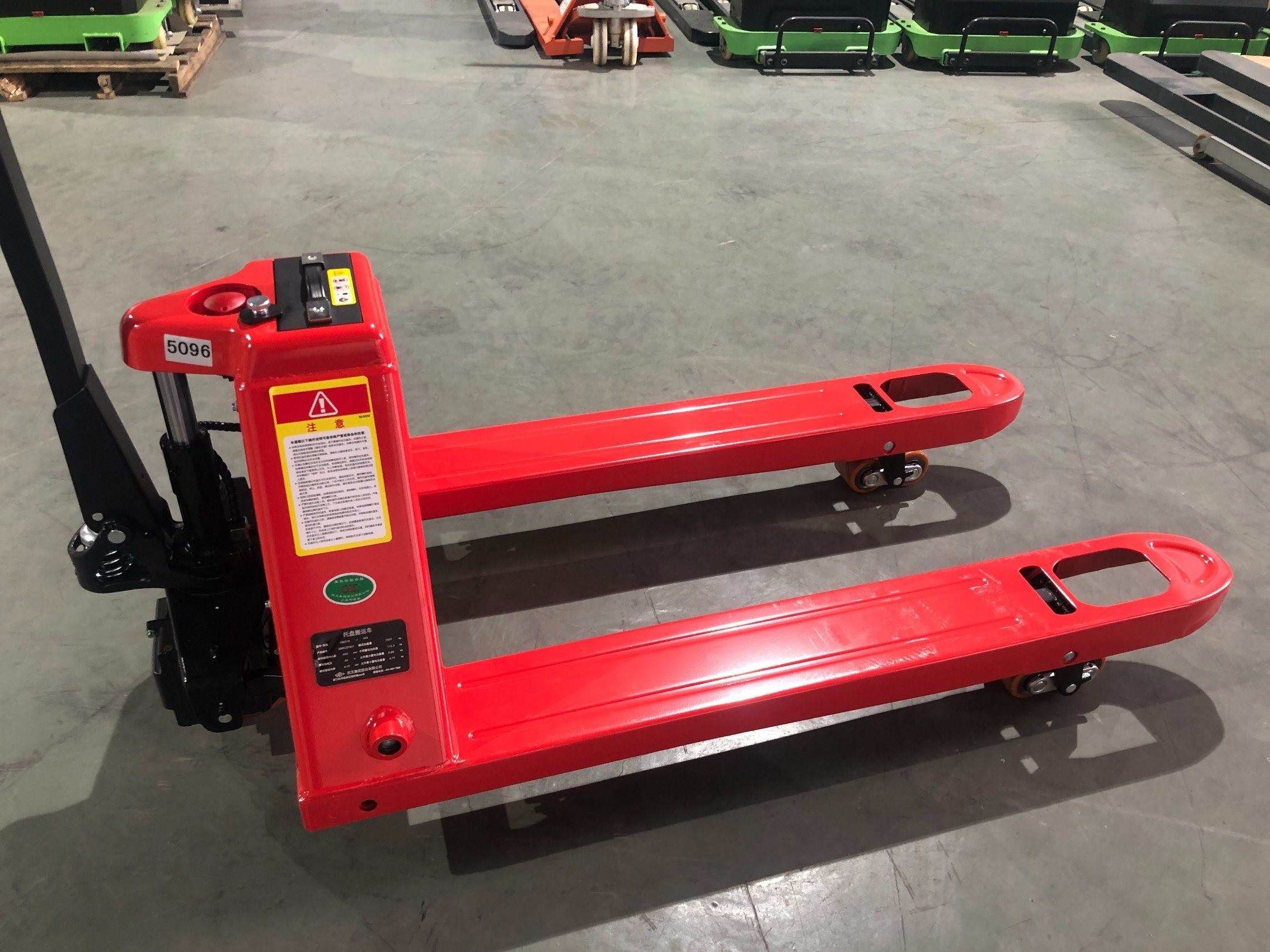

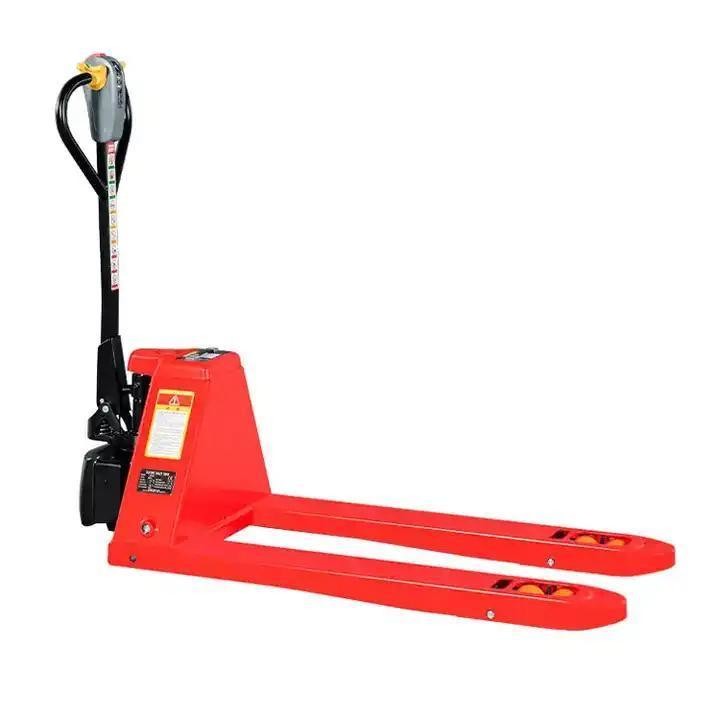

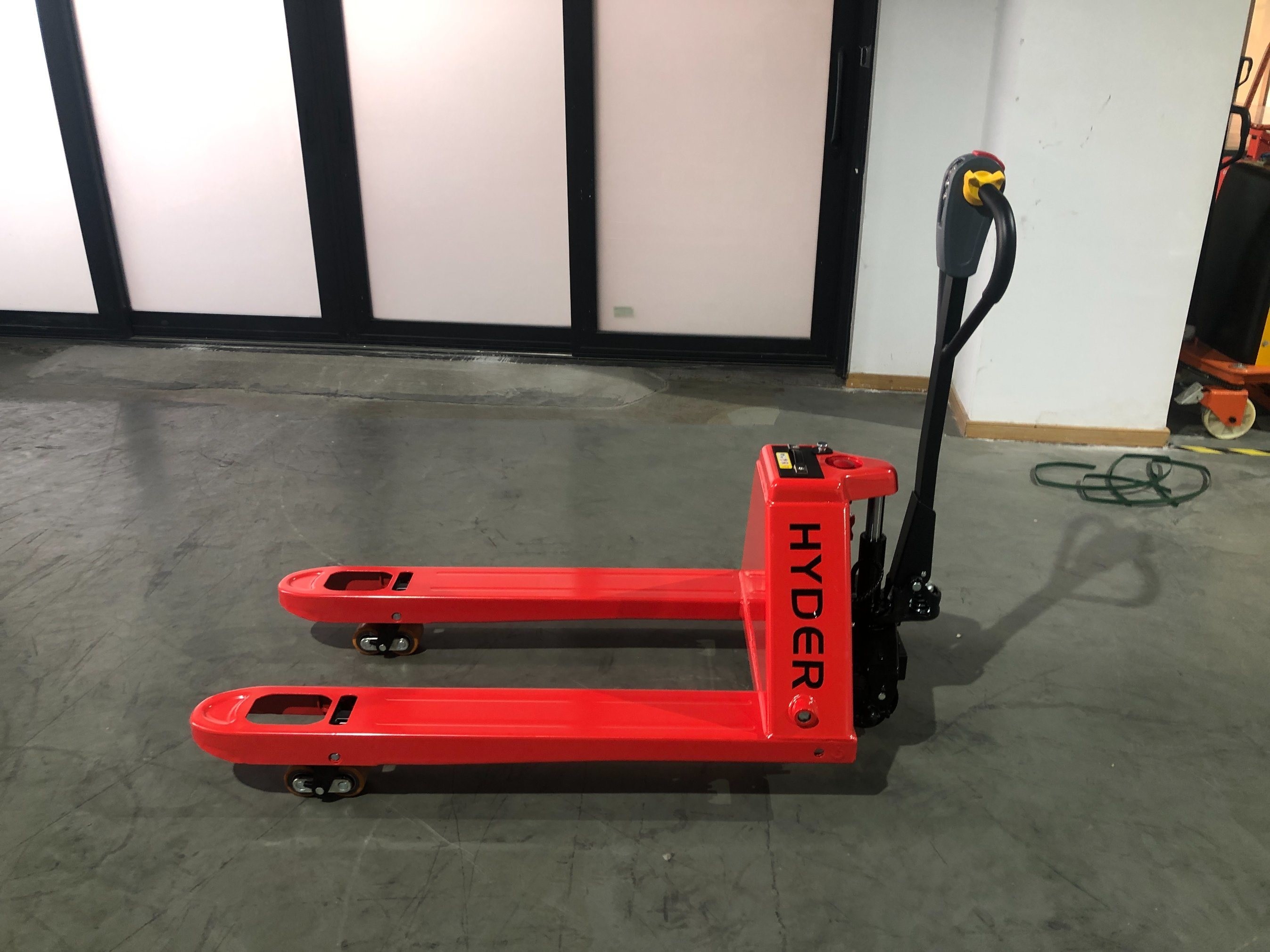

1500kg Electric Pallet Jack with Easy Manual Operation and Stroller Function
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTE15E | Type | Pallet Jack |
|---|---|---|---|
| Power | Manual | Load Capacity | 1.5-2.0t |
| Fuel | Manual | Load Center | 500mm |
| Lift Height | 200mm | Condition | New |
| Name | Electric Pallet Truck | Model | Hte15e |
| Operating Type | Walkie | Fork With | 550/685mm |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 1653X685X1130MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84272099 | Supply Ability | 3000 Sets/Year |
| Package Size | 2700.00cm * 1300.00cm * 800.00cm | Package Gross Weight | 600.000kg |
Product Description
Lithium Battery 1.5TON Pallet Jack for Efficient Material Handling
Battery Pallet Truck Electric Pallet Truck is a material handling device powered by an electric motor. It is commonly used for transporting and stacking goods within warehouses, factories, or logistics centers. These trucks are typically designed to be compact and maneuverable, allowing operation in confined spaces. Equipped with pallets, they enable the placement of goods on top, and the electric power system is used to move the load. These devices play a crucial role in improving the efficiency of goods handling and reducing manual labor intensity.
| ELECTRIC PALLET TRUCKA | ||||
| 1 | Manufacturer | HYDER | ||
| 2 | Model | HTE15E | ||
| 3 | Power type | FULL ELECTRIC | ||
| 4 | Operation | Walkie | ||
| 5 | Load capacity | Q(kg) | 1500 | |
| 6 | Loading center | C(mm) | 600 | |
| 7 | Drive wheel center to fork surface distance | x(mm) | 243.5 | |
| 8 | Wheels base | y(mm) | 1197 | |
| 9 | Service weight(including lithium battery) | kg | 114.5 | |
| 10 | Wheel type | Polyurethane(PU) | ||
| 11 | Driving wheel,number | x w(mm) | ø140*55/1 | |
| 12 | Front wheel,number | x w(mm) | ø80*70/4 | |
| 13 | Front tread | b10 | 390 | |
| 14 | Overall length | l1(mm) | 1552/1622 | |
| 15 | Length from the back to the vertical surface of the fork | l2 | 402 | |
| 16 | Overall width | b1(mm) | 550/685 | |
| 17 | Overall height including handle | mm | 1276 | |
| 18 | Lifting height | h3(mm) | 115 | |
| 19 | Fork Max height | mm | 197 | |
| 20 | Height of control handle in operable position(max/mini) | h14(mm) | 1150/820 | |
| 21 | Fork height at lowest point | h13(mm) | 82(+/-2) | |
| 22 | Fork dimensions | s/e/lmm | 58*160*1150/1220 | |
| 23 | Fork outside space | b5(mm) | 550/685 | |
| 24 | Ground clearance(wheelbase center) | mm | 22 | |
| 25 | Right-angle stack channel width, (pallet size 1000X1200, 1000 placed along cargo fork | mm | 1718 | |
| 26 | Right-angle stack channel width, (pallet size 800X1200, 1200 placed along cargo fork | mm | 1687 | |
| 27 | Turning radius | Wa(mm) | 1353/1426 | |
| 28 | Driving speed ( laden /unladen) | km/h | 4/5 | |
| 29 | Lifting speed ( laden /unladen) | mm/s | 18/23 | |
| 30 | Lowering speed ( laden /unladen) | mm/s | 56/46 | |
| 31 | Gradient ( laden /unladen) | % | 6/20 | |
| 32 | Brake | Electromagnetic brake | ||
| 33 | battery voltage | V/Ah | 48/10 | |
| 34 | Battery weight(+/-5%) | kg | 4.79 | |
| 35 | Driving motor S2 60min | kw | 0.75 /DC Brushless | |
| 36 | lifting motor S3 7% | kw | 0.5 /DC | |
| 37 | Sound pressure level at the driver's ear | dB(A) | <70 | |
| 38 | Charging time | H | 3 | |
Hyder is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
