Hyder Lithium Battery 1.5ton 2ton Warehouse Electric Pallet Jack Truck for Your Warehouse
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CBD20 | Type | Pallet Jack |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 1.5t 2t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 115mm | Condition | New |
| Product Name | Walkie Pallet Truck/Pallet Stacker/Pallet Jack | Lithium Battery | 48V 15ah |
| Application | Warehouse | Drive Motor | DC Motor |
| Model | Cbd15 | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 1653X685X1130MM | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year | Package Size | 208.00cm * 70.00cm * 91.00cm |
| Package Gross Weight | 138.000kg |
Product Description

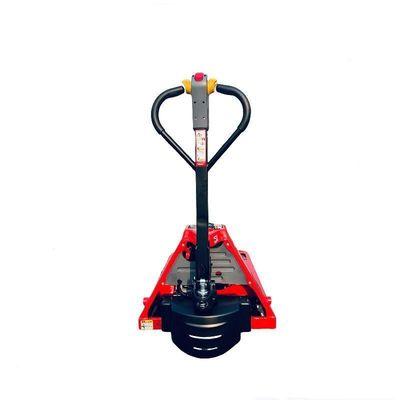

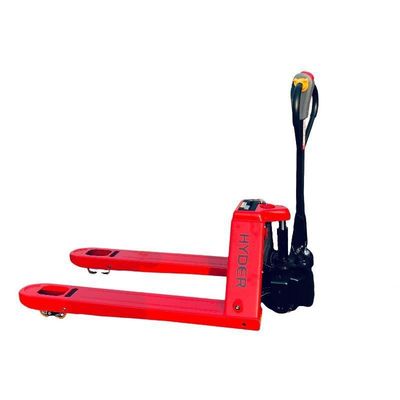

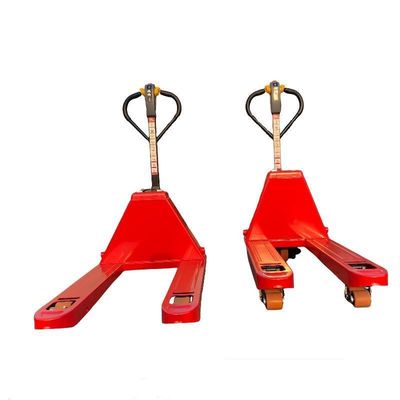

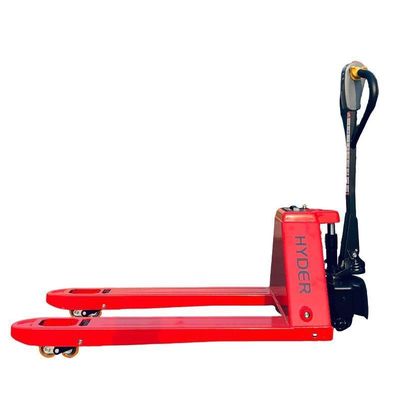

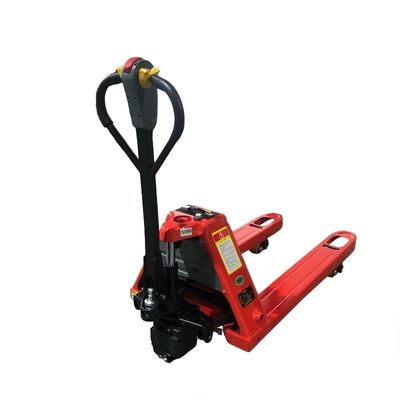

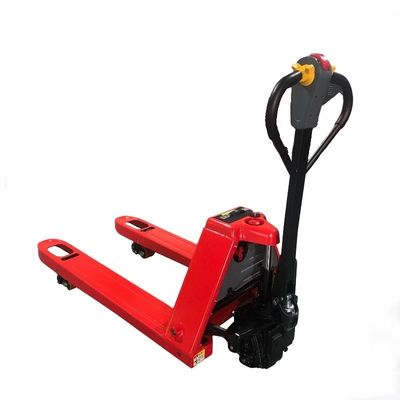

HYDER Lithium Battery 1.5ton 2ton Warehouse Electric Pallet Jack Truck
| ELECTRIC PALLET TRUCK | ||||||
| 1 | Manufacturer | HYDER | HYDER | |||
| 2 | Model | CBD15 | CBD20E | |||
| 3 | power type | FULL ELECTRIC | FULL ELECTRIC | |||
| 4 | operation | Walkie | Walkie | |||
| 5 | load capacity | Q(kg) | 1500 | 2000 | ||
| 6 | loading center | C(mm) | 600 | 600 | ||
| 7 | Wheels base | mm | 1220 | 1220 | ||
| 8 | service weight(including lithium battery) | kg | 128 | 138 | ||
| 9 | wheel type | Polyurethane(PU) | Polyurethane(PU) | |||
| 10 | driving wheel,number | x w(mm) | ø190*70/1 | ø190*70/1 | ||
| 11 | front wheel,number | x w(mm) | ø80*70/4 | ø80*70/4 | ||
| 12 | overall length | l1(mm) | 1540 | 1540 | ||
| 13 | Overall width | b(mm) | 560/680 | 560/680 | ||
| 14 | fork lifting height | h1(mm) | 85-195 | 85-195 | ||
| 15 | the handle height from ground(max) | h3(mm) | 1200 | 1200 | ||
| 16 | Height of body | h4(mm) | 560 | 560 | ||
| 17 | Fork height at lowest point | h(mm) | 85 | 85 | ||
| 18 | Single lork dimensions | mm | 560*1150/680*1220 | 560*1150/680*1220 | ||
| 19 | Ground clearance | mm | 30 | 30 | ||
| 20 | Min. Right-angle stack channel width, (pallet size 1000X1200, 1200 placed along cargo fork | mm | 1500 | 1500 | ||
| 21 | Turning radius | R(mm) | 1350 | 1350 | ||
| 22 | Driving speed ( with /without load) | km/h | 4.5 | 4.5 | ||
| 23 | Lifting speed (with /without load) | mm/s | 22/17 | 22/17 | ||
| 24 | Lowering speed (with /without load) | mm/s | 26/30 | 26/30 | ||
| 25 | Gradient Max load / unload | % | 6/10 | 6/10 | ||
| 26 | Brake | Electromagnetic brake | Electromagnetic brake | |||
| 27 | battery voltage | V/Ah | 48/10 | 48/15 | ||
| 28 | Battery weight(+/-5%) | kg | 4.5 | 4.5 | ||
| 29 | Driving motor | kw | 0.75 | 0.8 | ||
| 30 | lifting motor | kw | 0.5 | 0.6 | ||
| 31 | Charging time | Hrs | 2 | 2.5 | ||
Shaanxi Hyder Intelligent Machinery Co., Ltd ,The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
