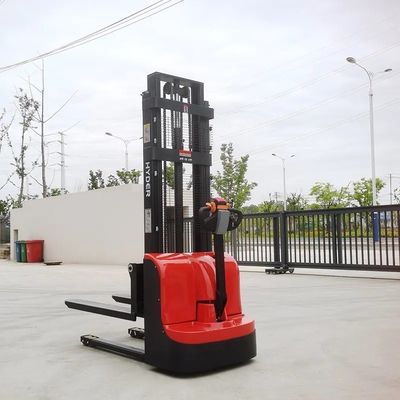

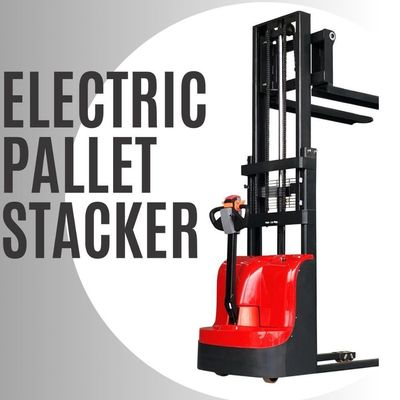

AC Motor Electric Stacker 1500kgs Material Handling Pallet Stacker Walkie Pallet Forklift

1500kgs Material Handling Pallet Stacker Walkie Pallet Forklift Electric Stacker


Warehouse Handling Equipment Walkie Stackers 1.0t-1.5t Hyder Full Electric Lifting Height 3.5M

Product Description

Walkie stackers, also known as pedestrian stackers or walk-behind stackers, are versatile material handling equipment used in warehouses, distribution centers, and manufacturing facilities. While specific features can vary depending on the model and manufacturer, here are some common features you might find in walkie stackers:

1. Load Capacity: Determines the maximum weight the stacker can handle.
2. Lift Height: Indicates the maximum height the forks can reach.
3. Power Source: Can be battery-powered or combustion engine-powered.
4. Fork Length: Determines the size and type of loads the stacker can handle.
5. Fork Width Adjustment: Allows for handling different pallet sizes.
6. Tilt Function: Enables forward and backward tilting of the forks.
7. Controls: User-friendly controls for lifting, lowering, steering, and maneuvering.
8. Safety Features: Emergency stop buttons, alarms, anti-roll-back mechanisms, and operator presence sensors.
9. Maneuverability: Designed for easy navigation in tight spaces.
10. Ergonomics: Features for operator comfort and reduced fatigue.
11. Attachments: Additional tools for handling specific load types or configurations.
12. Safety Lights and Beacons: Enhance visibility and safety in low-light or busy areas.

Hyderlift with over 17 years for producing and exporting , We aim to supply high quality and competitive price to you and to establish  a  long term service for you . Welcome to contact us for requirements.

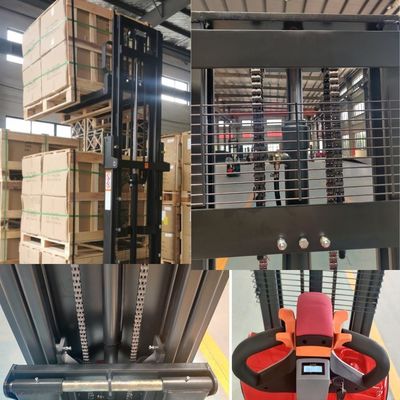

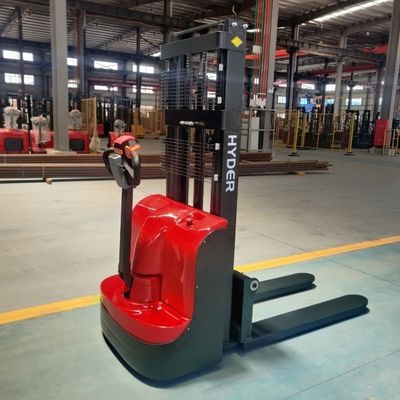

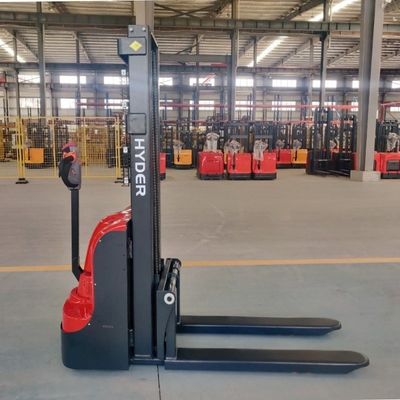

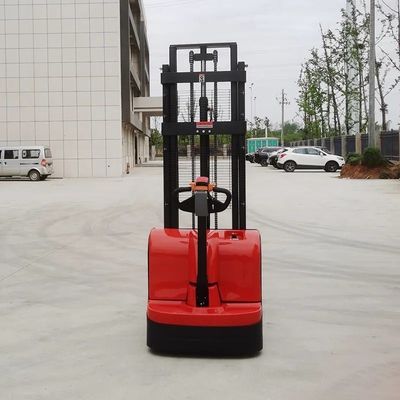

Detailed Photos

Wide leg for double blocked pallet avaiable :


Product Parameters



Hyder  Electric Walkie Pallet Stacker

Hyder walkie forklift or walk-behind pallet truck is oftentimes used for transporting products over short distances and lifting
pallets where a traditional forklift isn't necessary.

* Max load capacity: 1000/1500kg
* Max lifting height 3.5M
* Lead acid battery 48V 32AH
* Working hours: 5-6hours
* Work for single deck pallets
* Small turning radius
*Energy -saving design
*24V/48V electrical system
*High-strengthen cover
*Rema handle bar
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
*Maintenance free battery





Manufacturer		HYDER
Model		HTB10E/HTB15E
Name		Full electric walkie stacker
Power type		Battery
Rated load capcity	kg	1500
Load centre	mm	500
Operate type		Walkie
Total length	mm	1791
Total width	mm	822
Mast closed height	mm	2090/1590/1830/2090/2330
Lifting height	mm	1600/2000/2500/3000/3500
Mast extended height	mm	2090/2570/3070/3570/4070
Aisle width 1000*1200mm	mm	2305
Fork Min ground clearance	mm	30
Min. Turning radius	mm	1431
Fork side(L*W*H)	mm	1150*170*60
Fork outer width	mm	550/680
Handle height max/min	mm	1230/750
Max lifting speed(no load)	mm/s	100
Max lifting speed(full load)	mm/s	50
Max driving speed(no load)	Km/h	5
Max driving speed(full load)	Km/h	4
Max gradeability(full/no load)	%	3.0/5.0
Driving motor	KW	DC0.75
Lifting motor	kw	DC2.2
Total weight (battery included)	kg	545
Battery  capacity	V/AH	48V/32AH
Bearing wheel size(front )	mm	80*70
Balance wheel size(back)	mm	125*50
Service Brake		Electric magnetic





Packaging & Shipping





Factory Work Shop





The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.

Q1:  Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company ,offices brancheds located in Shanghai,Anhui,Shannxi.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
