Energy Efficiency Stability Cpd50z 5000kgs Electric 4 Wheel Forklift for Materials Handing

 China Supply Lithium 5000KGS Electric 4 Wheel Forklift For Materials Handing

Product Description

HYDER Electric Forklifts CPD Z Series is built on IC truck chassis and euipped with a streamlined design counterweight, more durable and greater maneuverability in confined spaces. Complete series from 1.5tons to 5tons, widely applied to construction sites, farm sites and outdoor services. Felixiable lithium battery capacity available for all kind working condition, from 206Ah to 480Ah for working 4-8hours, quick charge and environmentally friendly to most countries

CPD 50Z  ELECTRIC FORKLIFT SPECIFICATION
	Characteristics
1.1	Model			CPD50Z
1.2	driving mode			seated
1.3	rated capacity	Q	kg	5000
1.4	load center distance	C	mm	500
1.5	power mode			lithium battery
1.6	wheelbase	L1	mm	2150
	Tyre
2.1	tyre type			Pneumatic
2.2	wheels number(front/rear)			2/2
2.3	front track	W3	mm	1180
2.4	rear track	W2	mm	1190
2.5	tyre(front)			300-15
2.6	tyre(rear)			7.00-12
	Size
3.1	front overhang	L2	mm	585
3.2	tilt of the mast,front/rear	α/β	°	6/12
3.3	height,mast retraction	H1	mm	2330
3.4	free lift height	H3	mm	150
3.5	overall maximum lift height	H	mm	3000
3.6	height,mast extended	H2	mm	4265
3.7	overhead guard height	H4	mm	2330
3.8	lateral Fork Adjustment(Outside of Forks)Max/Min	W5	mm
3.9	fork size(LxWxT)	T*W*L4	mm	55*150*1220
4.1	truck body length(fork excluded)	L'	mm	3130
4.2	truck body width	W1	mm	1400
4.3	turning radius	R	mm	3000
4.4	groubd clearance under mast	H5	mm	170
4.5	Ground clearance at center of wheelbase(laden)	H6	mm	160
4.6	Min. width of aisle angle stacking		mm	2750
4.7	width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	Ast	mm
4.8	width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	Ast	mm
	Performance
5.1	travel speed,laden/unladen		km/h	12/15
5.2	lifting speed,laden/unladen		mm/s	280/320
5.3	lowering speed,laden/unladen		mm/s	400/350
5.4	maximum negoniable gradient,laden/unladen		%	13/15
	Weight
6.1	service mass(with battery)		kg	6800
6.2	battery voltage /nominal capacity		V/Ah	153.6V/280AH
6.3	battery weight		kg	500
	Electrical configuration
7.1	drive motor power-60 minutes		kW	23.1
7.2	lift motor  power-15 minutes		kW	22.6
7.3	drive motor controlling mode			MOSFET/AC
7.4	lifting motor controlling mode			MOSFET/AC
7.5	service brake/parking brake			Hydraulic/Mechanial

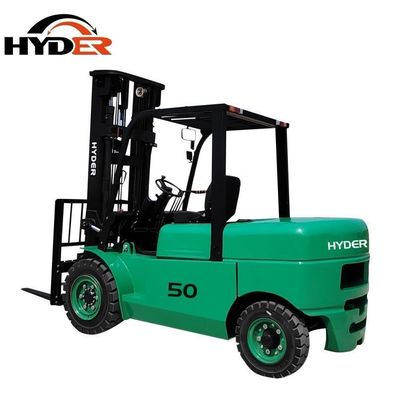

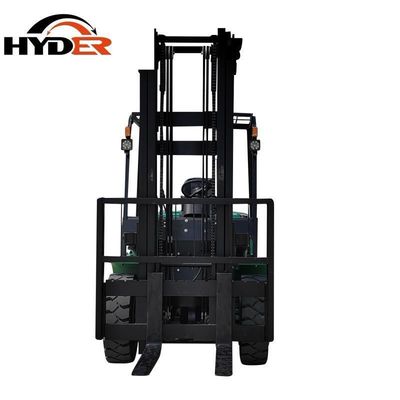

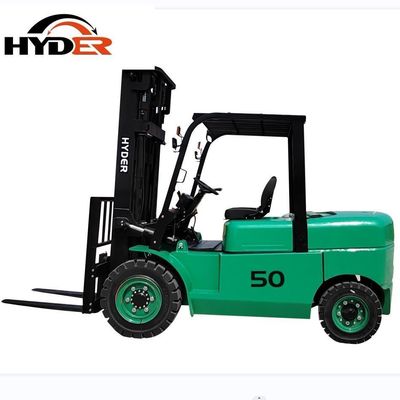

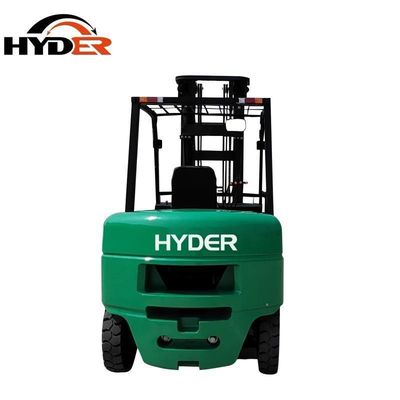

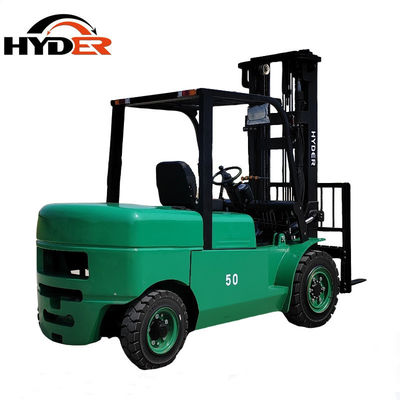

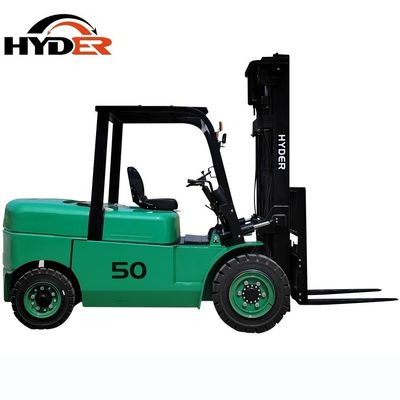

Detailed Photos



HYDER Work Shop Produce Line

The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
