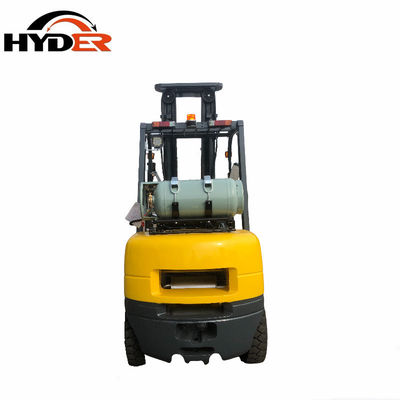

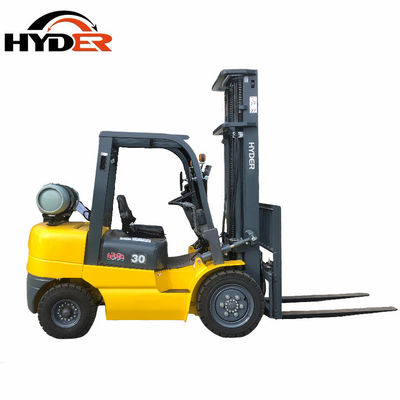

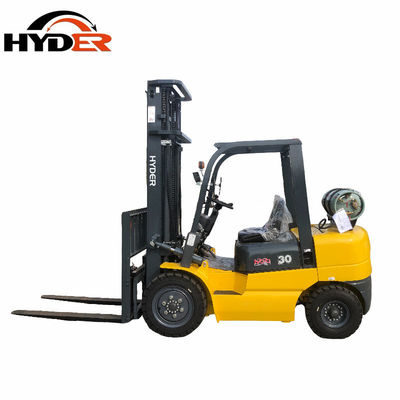

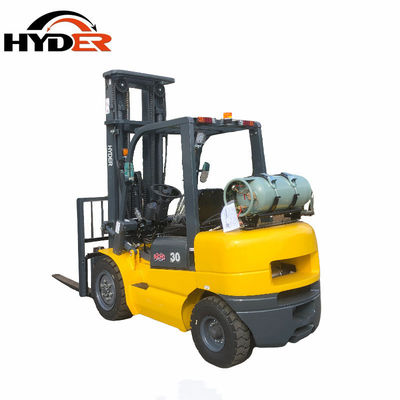

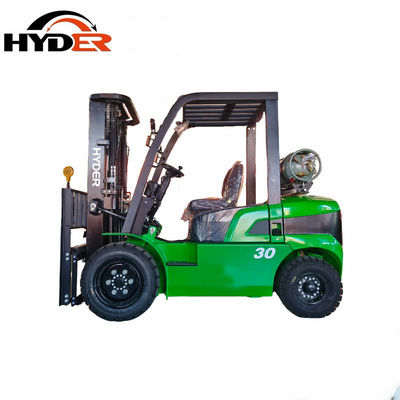

Material Transport Forklift for Outdoor Min. Lifting Height 3m Powered by Xinchai Engine
| Place of Origin | China |
|---|---|
| Brand Name | Hyder |
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | FG30 | Type | Gasoline Forklift |
|---|---|---|---|
| Power | Gasoline Engine | Load Capacity | 3t |
| Fuel | Gasoline | Load Center | 500mm |
| Lift Height | 3-6m | Condition | New |
| Engine | Nissan / Xinchai / Mitsubishi | Fork Size | 1070X125X45mm |
| Min. Lifting Height | 3m | Max. Lifting Height | 6m |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2250x1070x2060mm |
| Trademark | HYDER | Origin | China |
| HS Code | 84272090 | Supply Ability | 500 Units / Month |
| Package Size | 225.00cm * 107.00cm * 206.00cm | Package Gross Weight | 4300.000kg |
Product Description
High Quality Mateial Transport LPG Gasoline Forklift Fork lift For Outdoor Using
| SPECIFICATION | |||
| 1 | Manufacture | HYDER | |
| 2 | Model | FG30T | |
| 3 | Rated capacity | kg | 3000 |
| 4 | Loading centre | mm | 500 |
| 5 | Power type | Gasoline/LPG | |
| 6 | Operate type | Driver/seat | |
| 7 | Tire type | Pneumatic | |
| 8 | wheels | 2*2 | |
| 9 | Max lifting height | mm | 3000 |
| 10 | Free lift height | mm | 150 |
| 11 | Fork size | mm | 1070*125*45 |
| 12 | Tilt range | deg | 6//12 |
| 13 | Overall length | mm | 2705 |
| 14 | Total width | mm | 1225 |
| 15 | Mast height | mm | 2075 |
| 16 | Overall height fork raised | mm | 4250 |
| 17 | Height of guard | mm | 2140 |
| 18 | Turning radius(outside) | mm | 2445 |
| 19 | Load distance | mm | 480 |
| 20 | Min right angle stacking aisle | mm | 2925 |
| 21 | Max traveling(no loading) | km/h | 19.5 |
| 22 | Lifting(no loading) | mm/s | 500 |
| 23 | Lowering(no loading) | mm/s | 450 |
| 24 | Max drawbar pull(full/no) | kg | 1300/1000 |
| 25 | Gradeability at 1.6km/h(full/no) | % | 17/20 |
| 26 | Truck weight | kg | 4300 |
| 27 | Front wheel | 28*9-15-12PR | |
| 28 | Rear wheel | 6.50-10-10PR | |
| 29 | Wheel base | mm | 1700 |
| 30 | Tread(front) | mm | 1000 |
| 31 | Tread(rear) | mm | 1060 |
| 32 | Ground clearance(Lowest point) | mm | 120 |
| 33 | Brake(service) | Hydraulic-foot pedal | |
| 34 | Brake(parking) | Mechanical -hand lever | |
| 35 | Battery | V/AH | 12/60 |
| 36 | Engine model | NISSAN K21 | |
| 37 | Rated power | kw/rpm | 31.2/2250 |
| 38 | Rated torque | N.m/rpm | 143/1600 |
| 39 | Number of cylinder | 4 | |
| 40 | Displacement | cc | 2065 |
| 41 | Fuel tank capacity | L | 70 |
| 42 | Transmission | 1-1 power shift T/M | |
| 43 | Operating pressure | kg/cm | 180 |
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5:Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
