Custom Design Hyder 1800kg Three Wheel Electric Forklift with Energy Efficiency Stability

HYDER Cost Effective 1800KG Three Wheel Electric Forklift Custom Design

Product Description

Counter Balance Electric Forklifts are forklifts that are powered by electric motors instead of internal combustion engines.
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.



1.8T three wheels Electric counterbalanced forklift
1	Manufacturer		HYDER
2	Model		FB18
3	Power type		Battery
4	Operation		Seated
5	Load center	mm	500
6	Load capacity	Q(kg)	1800
7	Lifting height	mm	2000
8	Free Lifting height	mm	1800
9	Wheels type		Solid tire
10	Number of wheels X=Drive wheels (front/rear)		2X/2
11	Front tire specification		18×7-8
12	Rear tire specification		16×6-8
13	Front track	mm	924
14	Rear track	mm	208
15	wheelbase	mm	1460
16	Fork size (length x width x thickness)	mm	920×120×35
17	Total length (forks not included)	mm	2105
18	Total width	mm	1100
19	Front/rear Angle of gantry and fork	.	6/6
20	Minimum right-angle aisle width (1200×1000 pallets)	mm	2300
21	Minimum ground clearance (at the mast)	mm	90
22	Driving speed(load/unload)	km/h	13/14
23	Lifting speed(load/unload)	mm/s	320/400
24	Lowering speed(load/unload)	mm/s	≤600/≥300
25	Max.gradeability(load/unload)	%	15
26	Overhead guard height	mm	2055
27	Tuming Radius	mm	1690
28	Service weight	kg	3760
29	Battery	V/AH	48/490
30	Battery box size(L*W*H)	mm	970×530×685
31	Walking motor power	Kw	4.5×2
32	Lifting motor power	Kw	12

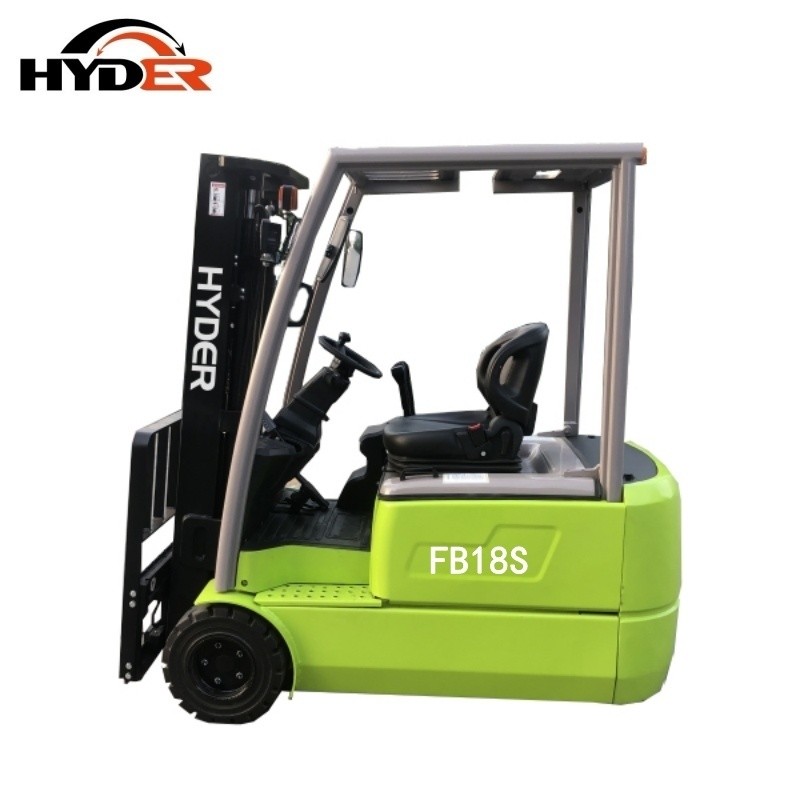

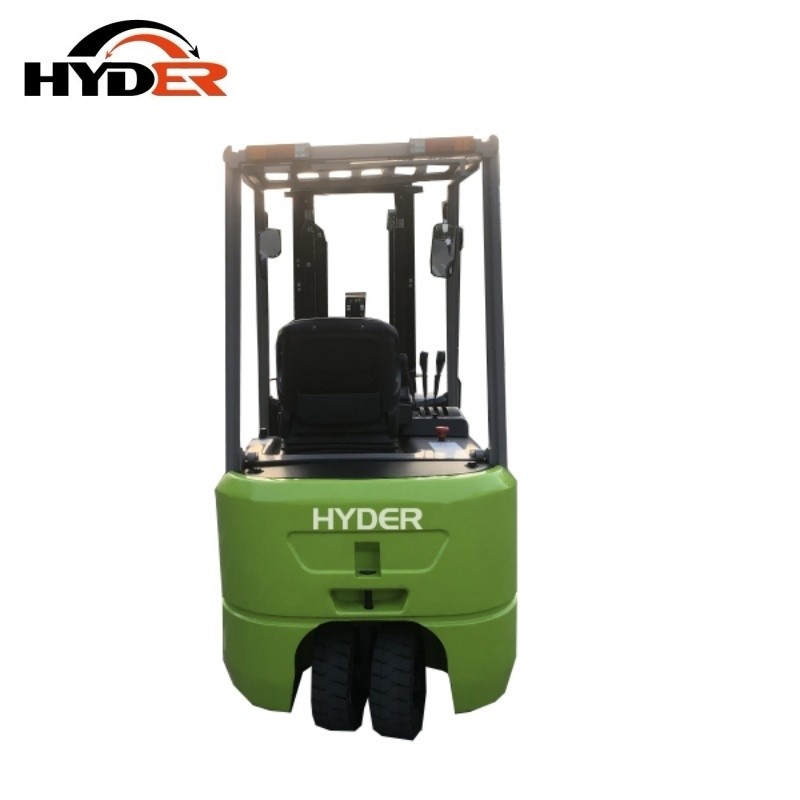

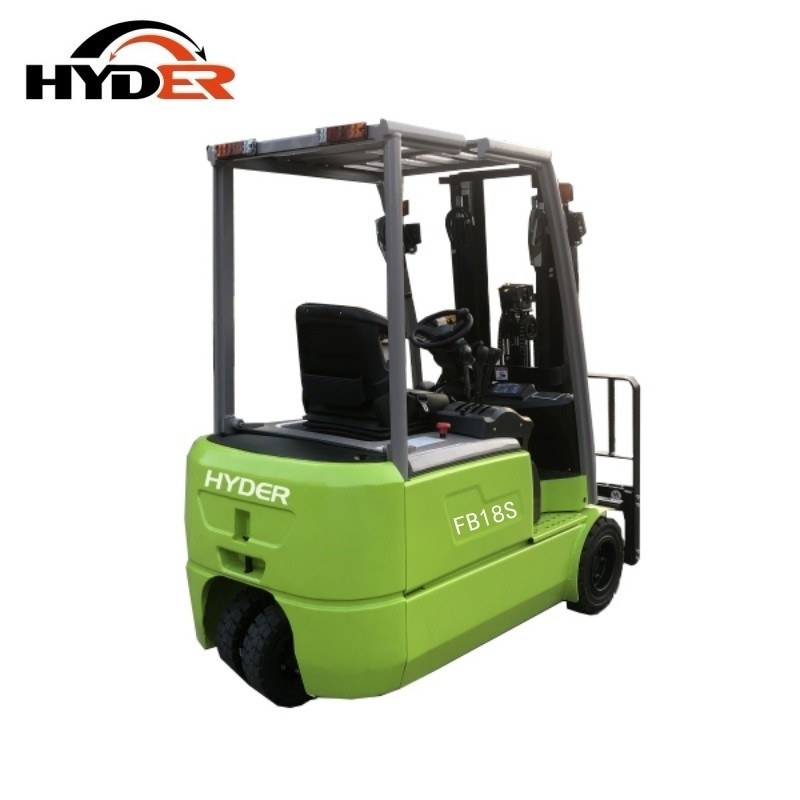

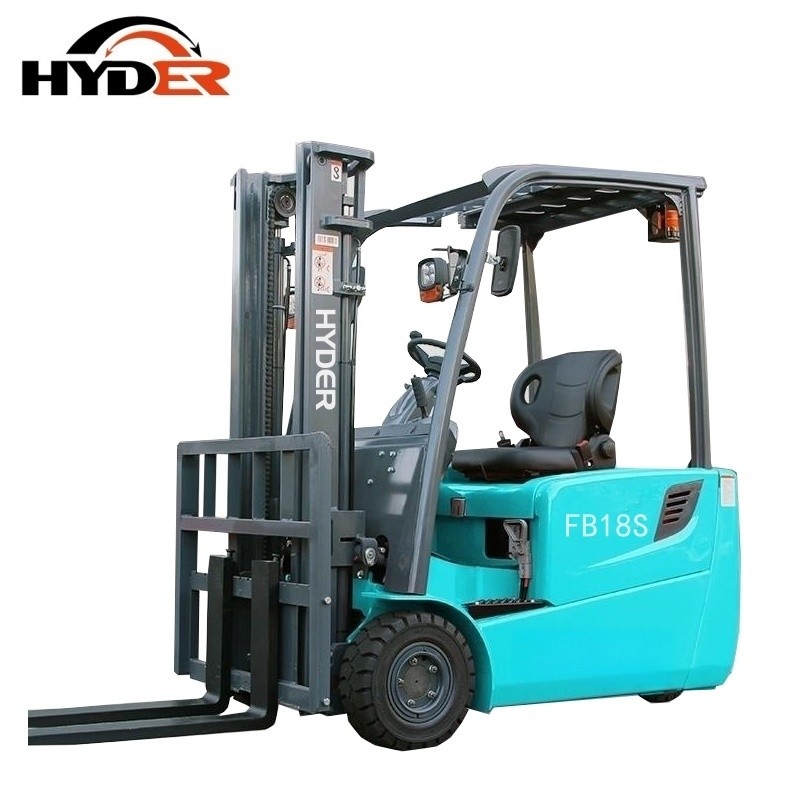

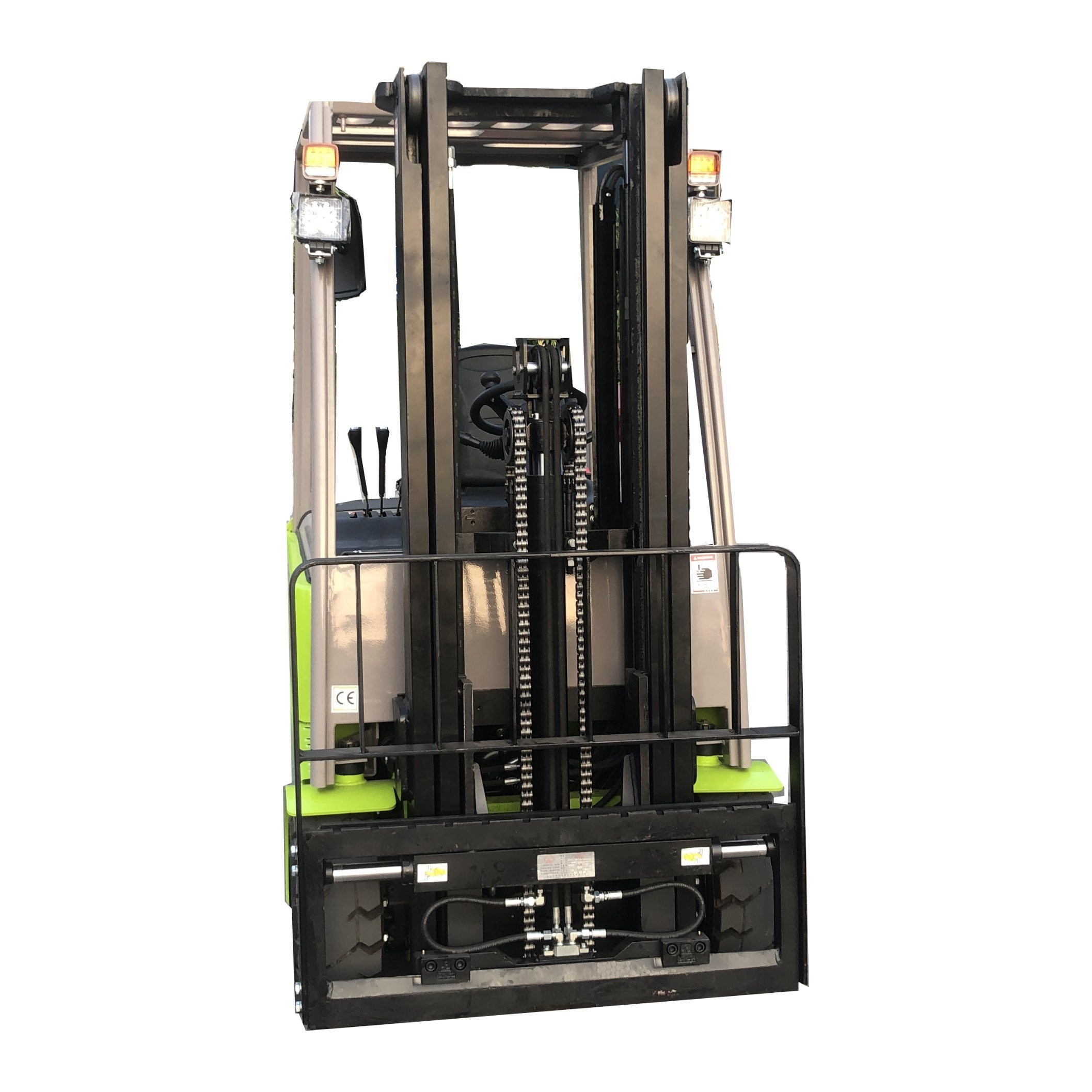

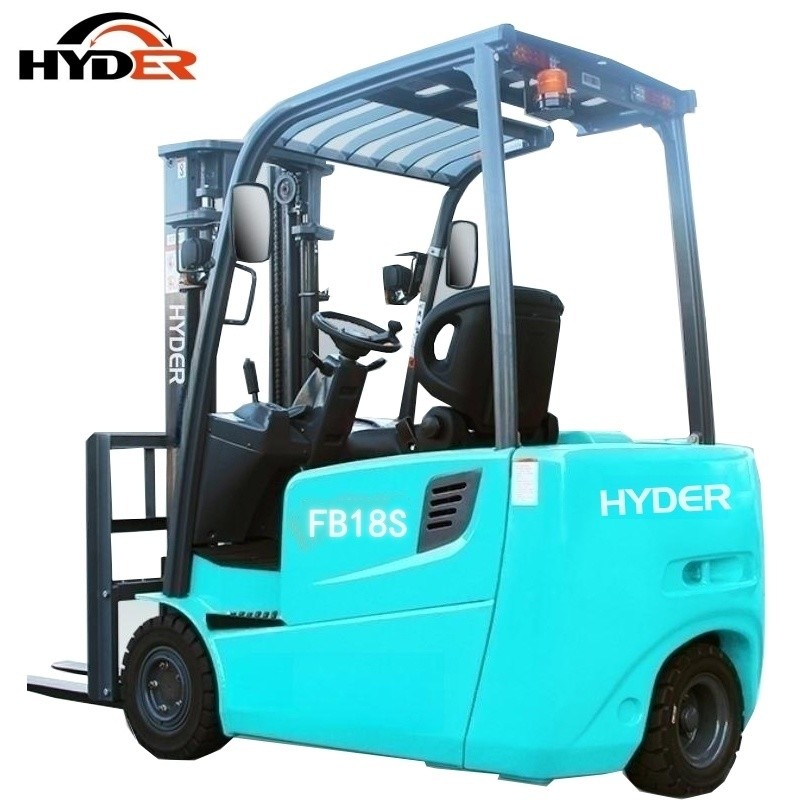

Detailed Photos



Related Recommended Products



Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
