1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment Hyder Direct

Place of Origin China
Certification ISO 9001
Minimum Order Quantity 1 Set
Packaging Details Sea-Worthy Packing for Exporting
Delivery Time Peak Season Lead Time: 1-3 months Off Season Lead Time: one month
Payment Terms LC, T/T, D/P, PayPal, Western Union
Supply Ability 3000 Sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. FG30T Type Gasoline Forklift
Power Gasoline Engine Load Capacity 1T - 5T
Fuel Gasoline Load Center 500mm
Lift Height 1000-7000 Condition New
Model Fg30 Rated Capacity 3000kg
Load Centre 500mm Operation Type Gasoline
Operator Type Driver/Seat Tires Pneumatic
Size 2705mm*1225mm*2140mm Transport Package Seaworth Packaging
Specification 2705mm*1225mm*2140mm Trademark Hyder
Origin China HS Code 84272090
Supply Ability 500 Units / Month Package Size 280.00cm * 130.00cm * 210.00cm
Package Gross Weight 4300.000kg Customization Available
After-sales Service Quick Online/Video Technical Support Warranty 1 Year
Shipping Cost Contact The Supplier About Freight And Estimated Delivery Time.   Support Payment In USD
Secure Payments Every Payment You Make At Made-in-china.com Is Protected By The Platform. Refund Policy Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Leave a Message
Product Description


Product Description

Internal Combustion Forklift 3t Gasoline Forklift with Ce Certificates

A gasoline forklift, also known as an internal combustion forklift, is a type of industrial equipment used for material handling and lifting tasks. It is powered by a gasoline-fueled internal combustion engine, which provides the necessary energy to operate the forklift efficiently.

Key features and characteristics of a gasoline forklift include:

1. Combustion Engine: Gasoline forklifts are equipped with an internal combustion engine that runs on gasoline as the fuel source. This engine generates power to drive the forklift and operate the hydraulic system for lifting and lowering loads.

2. Lifting Capacity: Gasoline forklifts come in various sizes and capacities, capable of handling different loads depending on their specifications. Lifting capacity is an essential consideration when choosing the right forklift for specific material handling tasks.

3. Versatility: Gasoline forklifts are versatile and suitable for indoor and outdoor use. They are commonly used in warehouses, manufacturing plants, construction sites, and other industrial settings.

4. Maneuverability: Gasoline forklifts are designed for ease of maneuverability, allowing operators to navigate confined spaces and narrow aisles with precision.

5. Fuel Efficiency: While gasoline forklifts are generally less fuel-efficient compared to electric forklifts, they offer the advantage of faster refueling times and extended operating periods.

6. Power and Performance: Gasoline forklifts provide robust power and performance, making them ideal for handling heavy loads and carrying out demanding material handling tasks.

7. Maintenance: Regular maintenance is essential to keep a gasoline forklift in optimal working condition. This includes engine servicing, fuel system checks, and routine inspections to ensure safety and reliability.

8. Emissions: As gasoline forklifts run on fossil fuels, they produce exhaust emissions during operation. In certain indoor settings or areas with strict emission regulations, electric forklifts might be preferred to avoid emissions.

9. Operator Training: Operating a gasoline forklift requires specialized training to ensure safe and efficient use. Forklift operators must be certified to handle the equipment properly.

10. Attachments and Accessories: Gasoline forklifts can be equipped with various attachments, such as forks, clamps, and booms, to accommodate different material handling needs.

Gasoline forklifts offer a balance of power, versatility, and operational flexibility, making them a popular choice for a wide range of material handling applications in industrial settings.


Product Parameters



SPECIFICATION
1 Manufacture   HYDER
2 Model   FG30T
3 Rated capacity kg 3000
4 Loading centre mm 500
5 Power type   Gasoline/LPG
6 Operate type   Driver/seat
7 Tire type   Pneumatic
8 wheels   2*2
9 Max lifting height mm 3000
10 Free lift height mm 150
11 Fork size mm 1070*125*45
12 Tilt range deg 6//12
13 Overall length mm 2705
14 Total width mm 1225
15 Mast height mm 2075
16 Overall height fork raised mm 4250
17 Height of guard mm 2140
18 Turning radius(outside) mm 2445
19 Load distance mm 480
20 Min right angle stacking aisle mm 2925
21 Max traveling(no loading) km/h 19.5
22 Lifting(no loading) mm/s 500
23 Lowering(no loading) mm/s 450
24 Max drawbar pull(full/no) kg 1300/1000
25 Gradeability at 1.6km/h(full/no) % 17/20
26 Truck weight kg 4300
27 Front wheel   28*9-15-12PR
28 Rear wheel   6.50-10-10PR
29 Wheel base mm 1700
30 Tread(front) mm 1000
31 Tread(rear) mm 1060
32 Ground clearance(Lowest point) mm 120
33 Brake(service)   Hydraulic-foot pedal
34 Brake(parking)   Mechanical -hand lever
35 Battery V/AH 12/60
36 Engine model   NISSAN K21
37 Rated power  kw/rpm 31.2/2250
38 Rated torque N.m/rpm 143/1600
39 Number of cylinder   4
40 Displacement  cc 2065
41 Fuel tank capacity L 70
42 Transmission   1-1 power shift T/M
43 Operating pressure kg/cm 180

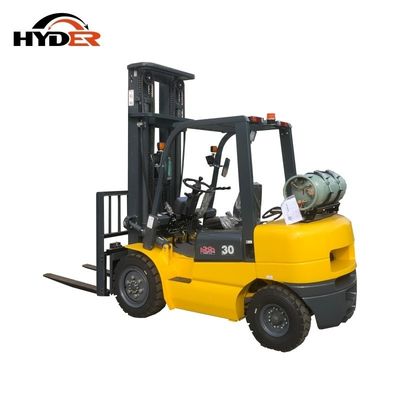

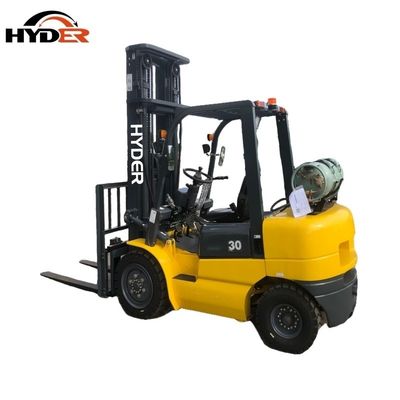

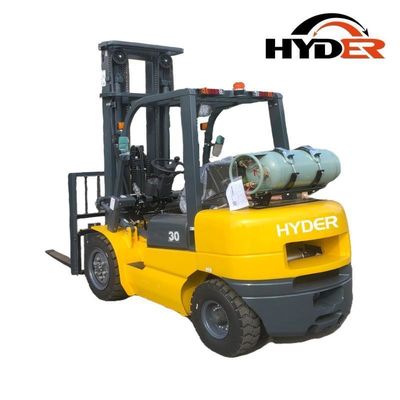

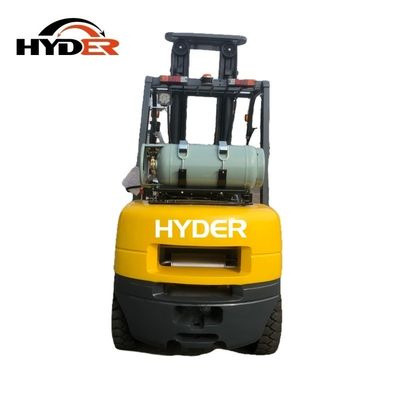

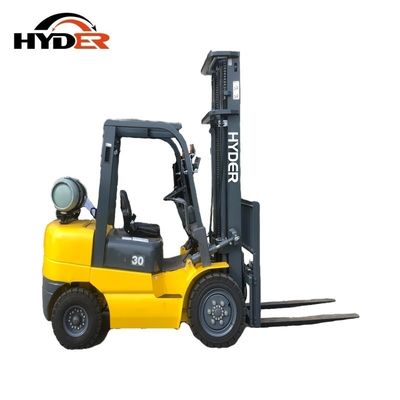

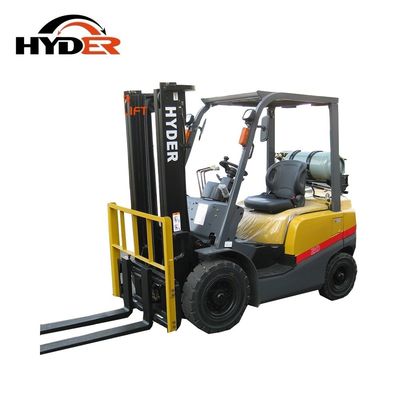

Detailed Photos

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment



Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment



Factory Work Shop

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
 Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling EquipmentHyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling EquipmentHyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling EquipmentHyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment




Packaging & Shipping

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment
Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment

Hyder Factory Direct 1.5/2/3/4/5 Ton Hydraulic Gasoline Forklift for Material Handling Equipment

Company Profile

Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
