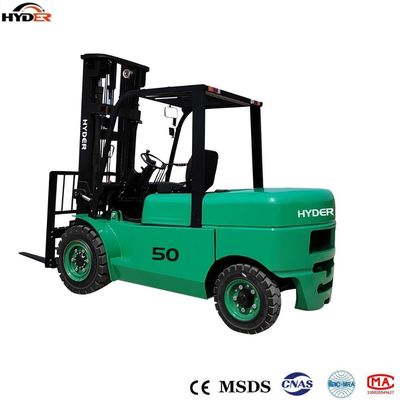

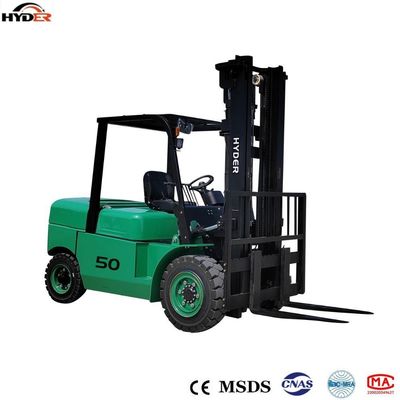

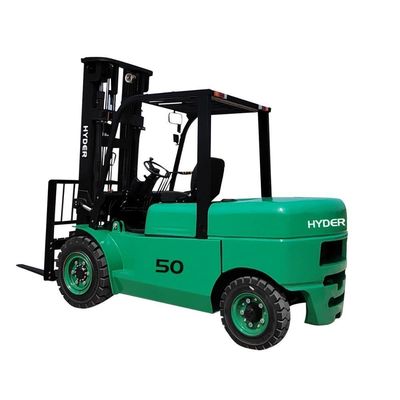

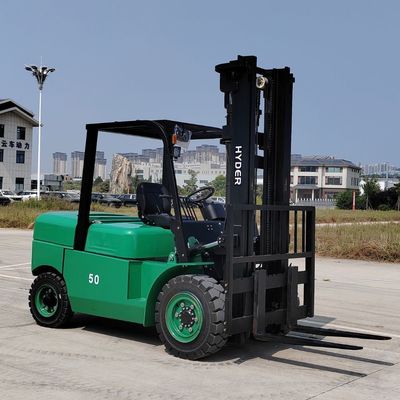

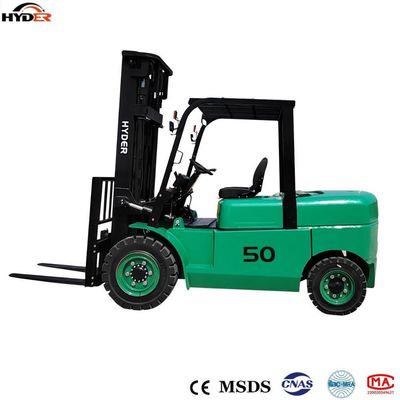

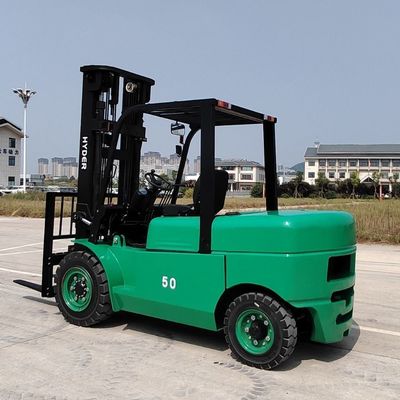

5 Ton Electric Forklift Truck Carrello Elevatore Elettrico Forklift Lithium Battery
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CPD50Z | Type | Electric Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1T - 5T |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 3000~5000mm | Condition | New |
| Name | 3ton Electric Forklift | Model | Z30 |
| Operating Type | Driver / Seat | Advantage1 | Energy Efficiency Stability |
| Advantage2 | Tilt Control | Load Capacity Optional | 1.5/2.0/2.5/3.0/3.5/4.0/5.0t |
| Battery | Li-on Battery | Votalge | 76.8V/270ah |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2250*1160*2040mm |
| Trademark | HYDER | Origin | China |
| HS Code | 84272090 | Supply Ability | 500 Units / Month |
Product Description
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.
Powerful ever ! The New Electric Forklift With Lithium Battery , Long working hours and fast charging .
5ton lithium battery forklift
1) Model : CPD50Z
2) Load capacity: 5000kg;
3) Lifting height: 3m
4) Tyres: Pneumatic tyres;
5) Lithium battery :153.6V 480AH
6) Charger: 144V 150A;
7) Charging time: 3hours;
8) Working for 4-5hours;
9) Size: 2750*1230*2110mm
10) Weight: 6800kg
Lithium battery option:Lithium battery 150V 280AH with 150A charger
5ton lithium battery forklift
1) Model : CPD50Z
2) Load capacity: 5000kg;
3) Lifting height: 3m
4) Tyres: Pneumatic tyres;
5) Lithium battery :153.6V 480AH
6) Charger: 144V 150A;
7) Charging time: 3hours;
8) Working for 4-5hours;
9) Size: 2750*1230*2110mm
10) Weight: 6800kg
Lithium battery option:Lithium battery 150V 280AH with 150A charger
| CPD 50Z ELECTRIC FORKLIFT SPECIFICATION | ||||
| Manufacturer | Hyder | |||
| 1 | Characteristics | |||
| 2 | Model | CPD50Z | ||
| 3 | driving mode | seated | ||
| 4 | Loading capacity | Q | kg | 5000 |
| 5 | load center distance | C | mm | 500 |
| 6 | power mode | lithium battery | ||
| 7 | wheelbase | L1 | mm | 2150 |
| 8 | Tyre | |||
| 9 | tyre type | Pneumatic | ||
| 10 | wheels number(front/rear) | 2/2 | ||
| 11 | forklift front | W3 | mm | 1180 |
| 12 | forklift rear | W2 | mm | 1190 |
| 13 | tyre(front) | 300-15 | ||
| 14 | tyre(rear) | 7.00-12 | ||
| 15 | Size | |||
| 16 | front overhang | L2 | mm | 585 |
| 17 | tilt of the mast,front/rear | α/β | ° | 6/12 |
| 18 | height,mast retraction | H1 | mm | 2330 |
| 19 | free lift height | H3 | mm | 150 |
| 20 | overall maximum lift height | H | mm | 3000 |
| 21 | height,mast extended | H2 | mm | 4265 |
| 22 | overhead guard height | H4 | mm | 2330 |
| 23 | lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | |
| 24 | fork size(LxWxT) | T*W*L4 | mm | 55*150*1220 |
| 25 | forklift length(fork excluded) | L' | mm | 3130 |
| 26 | forklift width | W1 | mm | 1400 |
| 27 | turning radius | R | mm | 3000 |
| 28 | groubd clearance under mast | H5 | mm | 170 |
| 29 | Ground clearance at center of wheelbase(laden) | H6 | mm | 160 |
| 30 | Min. width of aisle angle stacking | mm | 2750 | |
| 31 | width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | |
| 32 | width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | |
| 33 | Performance | |||
| 34 | travel speed,laden/unladen | km/h | 12/15 | |
| 35 | lifting speed,laden/unladen | mm/s | 280/320 | |
| 36 | lowering speed,laden/unladen | mm/s | 400/350 | |
| 37 | maximum negoniable gradient,laden/unladen | % | 13/15 | |
| 38 | Weight | |||
| 39 | service mass(with battery) | kg | 6800 | |
| 40 | battery voltage /nominal capacity | V/Ah | 153.6V/280AH | |
| 41 | battery weight | kg | 500 | |
| 42 | Electrical configuration | 23.1 | ||
| 43 | drive motor power-60 minutes | kW | 22.6 | |
| 44 | lift motor power-15 minutes | kW | MOSFET/AC | |
| 45 | drive motor controlling mode | MOSFET/AC | ||
| 46 | lifting motor controlling mode | Hydraulic/Mechanial | ||
| 47 | service brake/parking brake | Hydraulic/Mechanial | ||
1. What capacity you have ?
1.5ton/ 2ton/ 2.5ton/3ton and other models from 1.5ton to 5ton are all available.
Feel free to let us know what material you want to handle
2. How many working hours it can work/ and how many working hours to charge it?
We could have 3 options depending on your work shift:
A. 80V 150Ah lithium battery with 35A charger, can work for 4-5hours , with charging hours 5hours;
B. 80V 206Ah litium battery with 60A charger, can work for 5.5 hours, charging hour for 5.5hours;
C. 80V 280AH lithium battery with 100A charger, can work for 7.5hours , charging hours for 3hours.
Please check our sales team to confirm your work conditions;
3. What tires you use?
Standardly, we use pneumatic tires . but we can also open to solid tires, white-no mark tires etc.
4. What is your warranty?
Lithium battery banks always comes with 3-5 year warranty; while the forklift enjoys 1-year warranty. Open to prolonged warranty services.
5.What spare parts I need?
The electric forklift are designed to be easy-maintained that you can easily maintain by yourself via our maintenance guide.
The spare parts including dash board, charger, key switch, sensors etc can be found in our aftersale warehouse.
Within 7 days, new replacement would be sent out
Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians.
HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
