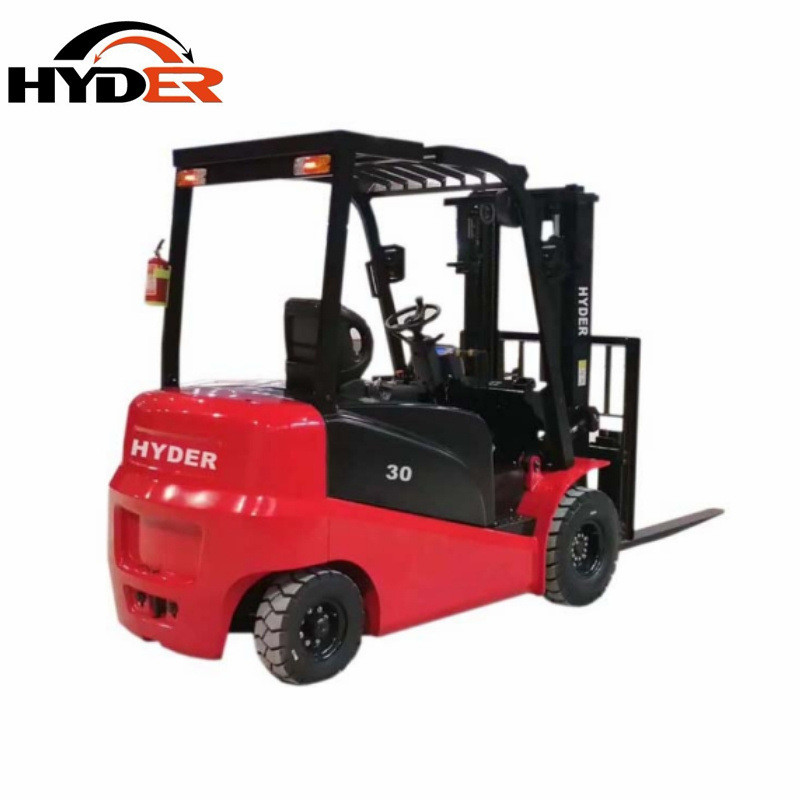

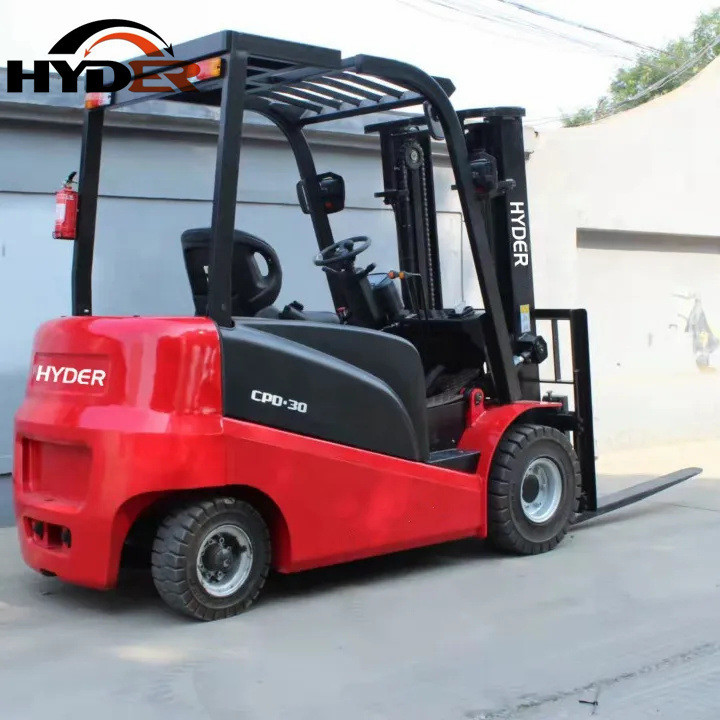

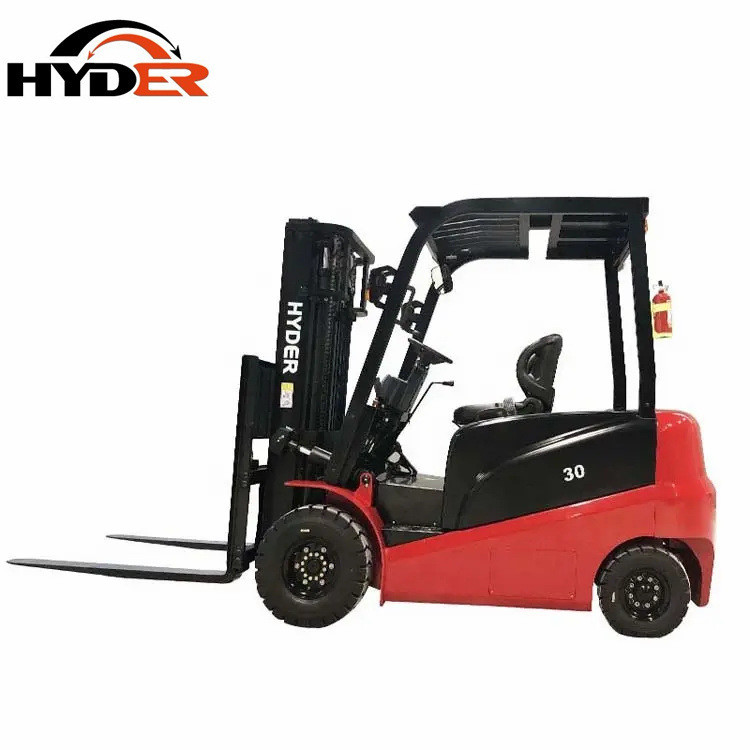

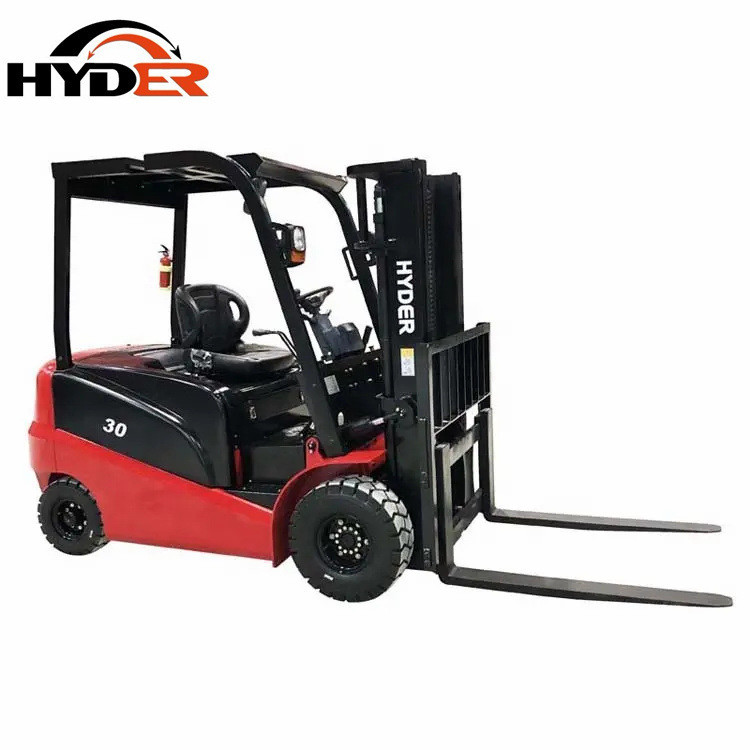

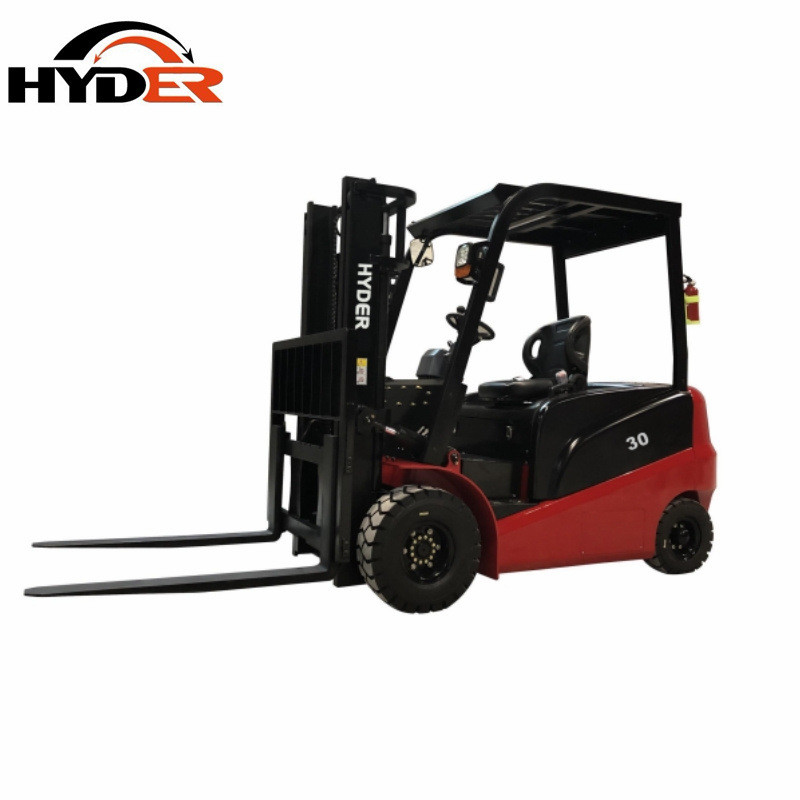

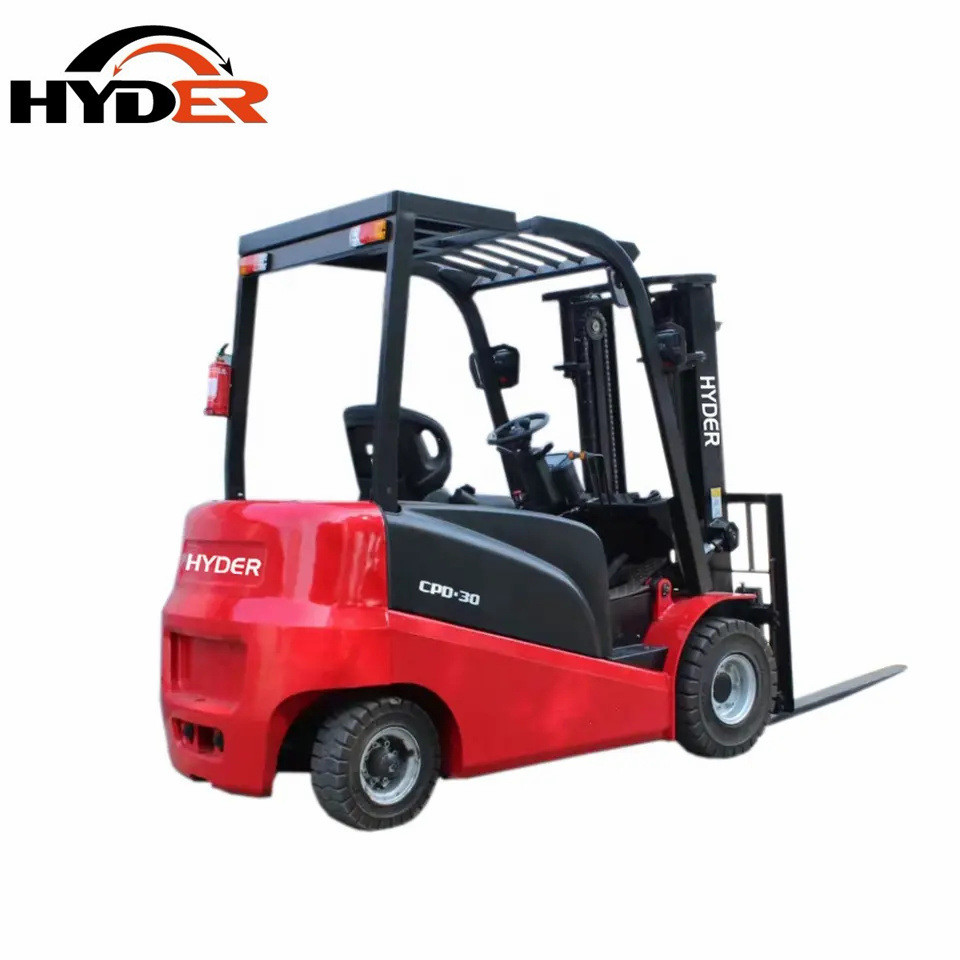

3980kgs CE Cercificate Counterbalance Fb30 3 Ton Electric Forklift with 72V 350ah
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | FB30 | Type | Electric Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 3t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 3000~5000mm | Condition | New |
| Name | 3t Electric Forklif | Model | Fb30 |
| Advantage | Energy Efficiency Stability | Weight | 3980kgs |
| Power Source | AC Motor | Core Components | Pressure Vessel, Motor, Other, Bearing, Gear, Pump |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2600*1265*2150mm |
| Trademark | HYDER | Origin | China |
| HS Code | 84271090 | Supply Ability | 3000 Sets/Year |
Product Description
3000kgs 3m Lithium Electric Forklift 72V 350Ah For Export With AC Motor
Counter Balance Electric Forklifts are forklifts that are powered by electric motors instead of internal combustion engines.
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.
| Specification | ||||
| 1 | Manufacturer | -- | -- | HYDER |
| 2 | Model | -- | -- | FB30 |
| 3 | Load capacity | -- | kg | 3000 |
| 4 | Load center | -- | mm | 500 |
| 5 | Power unit | Battery / Diesel / Gasoline | -- | Lithium Battery |
| 6 | Operator type | -- | -- | Driver / seat |
| 7 | Tire type | Front / Rear | -- | solid tire |
| 8 | Wheel (X=driven) | Number Front / Rear | -- | 2X 2 |
| 9 | tire model | Front | 650-10 | |
| Rear | 500-8 | |||
| 10 | Max. lifting height | -- | mm | 3000 |
| 11 | Free lift | -- | mm | 115 |
| 12 | Fork size | L*W*T | mm | 1070*120*45 |
| 13 | Tilt range | Mast forward / backward | deg | 5 / 10 |
| 14 | Overall length(without fork) | -- | mm | 2560 |
| 15 | Total width | -- | mm | 1265 |
| 16 | Mast height (fork lowering) | -- | mm | 2100 |
| 17 | Overall height fork raised | With backrest | mm | 4030 |
| 18 | Height to head guard | -- | mm | 2135 |
| 19 | Turning raduis(outside) | -- | mm | 1850 |
| 20 | Operation aisle width | -- | mm | 4000 |
| 21 | Speed | travelling Full / No load | km/h | 13 / 14 |
| Lifting Full / No load | mm/s | 180 / 210 | ||
| 22 | Gradeability | Full load/No | % | 10 / 12 |
| 23 | Service weight | -- | kg | 4100 |
| 24 | Wheelbase | -- | mm | 1780 |
| 25 | Tread | Front / Rear | mm | 1130 / 1050 |
| 26 | Ground clearence | At lowest point (mast) | mm | 115 |
| 27 | Brake | Service brake | -- | Hydraulic-foot pedal |
| Parking brake | -- | Hydraulic | ||
| 28 | Battery | Voltage / Capacity | v-ah/5hr | 72V/350Ah lithium Battery |
| 29 | Electric motor | Driving motor | kw | 11 |
| Hydraulic motor | kw | 10 | ||
| 30 | Control type | Driving | -- | AC motor |
| Lifting | -- | Permanent magnet motor | ||
HYDER Work Shop Produce Line
Parts
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5: Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
