2.0t Load Capacity Electric Forklift Stacker for Pallet and 4m Lifting Height



Warehouse Handling Equipment forklift Stacker Hyder Full Electric Lifting Height 4m

Product Description

1. Load Capacity: Determines the maximum weight the stacker can handle.
2. Lift Height: Indicates the maximum height the forks can reach.
3. Power Source: Can be battery-powered or combustion engine-powered.
4. Fork Length: Determines the size and type of loads the stacker can handle.
5. Fork Width Adjustment: Allows for handling different pallet sizes.
6. Tilt Function: Enables forward and backward tilting of the forks.
7. Controls: User-friendly controls for lifting, lowering, steering, and maneuvering.
8. Safety Features: Emergency stop buttons, alarms, anti-roll-back mechanisms, and operator presence sensors.
9. Maneuverability: Designed for easy navigation in tight spaces.
10. Ergonomics: Features for operator comfort and reduced fatigue.
11. Attachments: Additional tools for handling specific load types or configurations.
12. Safety Lights and Beacons: Enhance visibility and safety in low-light or busy areas.

Hyderlift with over 17 years for producing and exporting , We aim to supply high quality and competitive price to you and to establish  a  long term service for you . Welcome to contact us for requirements.

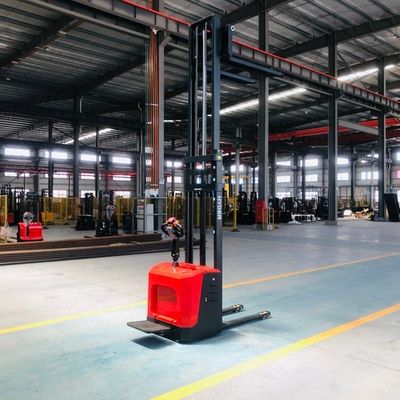

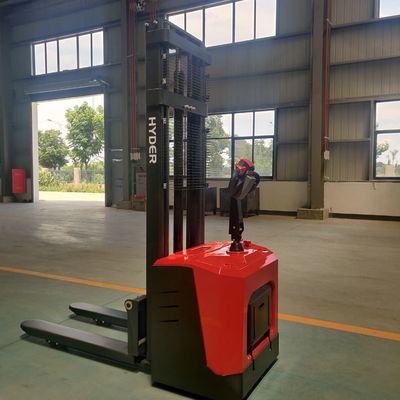

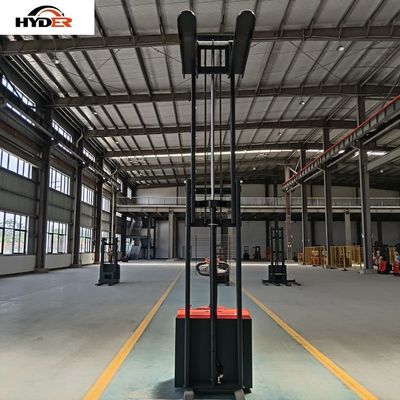

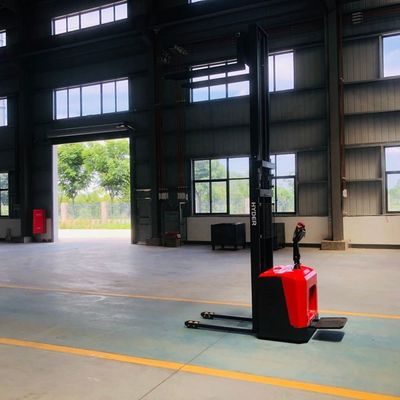

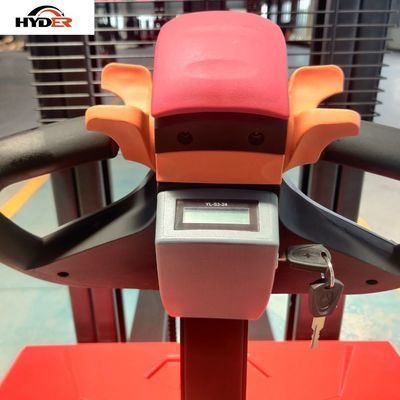

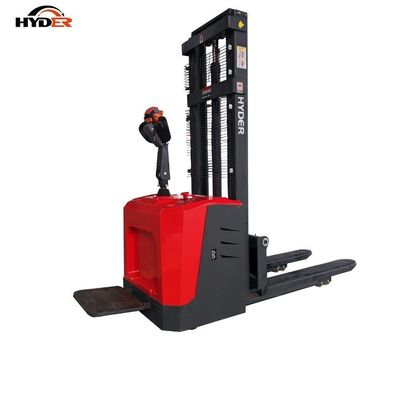

Detailed Photos




Product Parameters



Technical Specs
NO	Items	Unit	Specs
1	Power type		Battery
2	Rated load capcity	kg	1500
3	Load centre	mm	500
4	Operate type		Standing on
5	Total length(pedal closed)	mm	2030
6	Total width	mm	860
7	Mast closed height	mm	2080
8	Lifting height	mm	3000
9	Mast extended height	mm	3580
10	Min working aisle width 1000*1200mm pallet(1200 along the fork)	mm	2500
11	Fork Min ground clearance	mm	85
12	Min. Turning radius	mm	1612
13	Fork side(L*W*H)	mm	1100*160*55
14	Fork outer width	mm	550/680
15	Max lifting speed(no load)	mm/s	100
16	Max lifting speed(full load)	mm/s	50
17	Max driving speed(no load)	Km/h	5.5
18	Max driving speed(full load)	Km/h	4.5
19	Max gradeability(full/no load)	%	3.0/5.0
20	Driving motor	KW	DC0.75
21	Lifting motor	kw	DC2.2
22	Total weight (battery included)	kg	680
23	Battery  capacity	V/AH	24V120AH
24	Charger	V/A	24V15A
25	Steel type		Manganese C-shaped steel
26	Bearing wheel size(front )	mm	80*70
27	Balance wheel size(back)	mm	125*50
28	Controller		Chinese brand
29	Service Brake		Electric magnetic

Hyder  Electric standing -on  Pallet Stacker
1)Model: HTB15Y
2)Loading capacity: 1.5T /2.0t
3)Max Lifting Height  4M
4)AC motor0.75kw+DC motor2.2kw
5)Pu wheel
6)Lead acid battery capacity: 24V/120Ah
7) Fork size 1150*170*55mm
8) Wheels: PU Wheels
9) with operation/parts manual
10) warranty: one year





Packaging & Shipping





Factory Work Shop





The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.

Q1:  Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company ,offices brancheds located in Shanghai,Anhui,Shannxi.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
