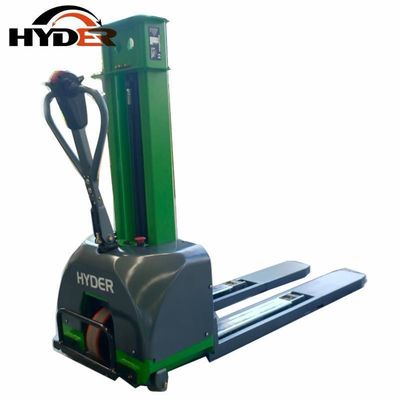

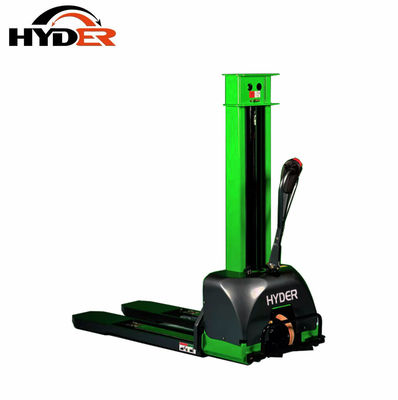

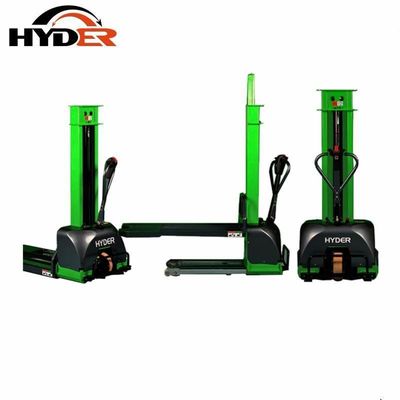

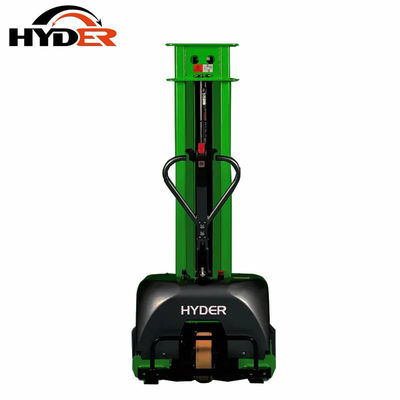

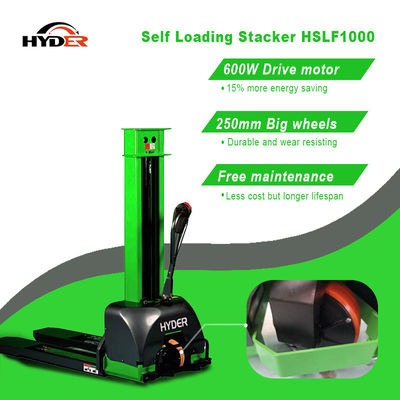

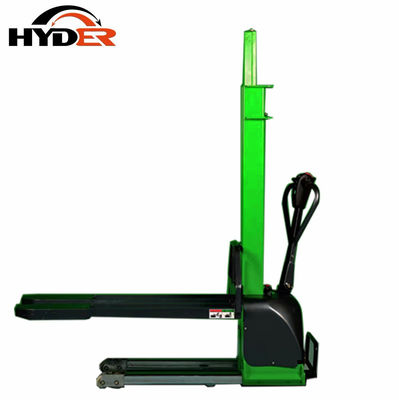

1000kgs Load Capacity Self Lifting Forklift Stacker with 1650*786*1180 H mm Dimensions
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLF1000 | Type | Stacker |
|---|---|---|---|
| Power | Full Electric | Load Capacity | 300kgs 700kgs 1000kgs |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800mm/1000mm/1300mm | Condition | New |
| Product Name | Self Lifting Stacker | Model | Hslf1000 |
| Material Of Wheels | Polyurethane/Nylon | Battery | 48V / 15ah |
| Drive Motor | Manual | Charger | Included |
| Lifting Height | 800/1000/1300mm | Fork Length | 1150mm |
| Weight | 193kgs | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 1650*786*1180(H)mm | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 3000units/Year |
Product Description
Cuatomize Self Lifting Loading Forklift Stacker With 1000kgs 1m 1.3m 1.6m
Full electric stacker, commonly known as a forklift, is a powerful and easy to use handling vehicle. It is widely used in factories, warehouses, stations, ports and other places. It can be used to pick up, carry, and stack unit goods, and can complete four compound operations of outbound, handling, loading and unloading, and stacking of finished goods.
| Full-Electric Pallet Stacker HSLF1000 | |||||
| Features | 1.1 | Model | No. | Unit | HSLF1000 |
| 1.2 | Motor | Fully Electric | |||
| 1.3 | Rated capacity | Q | kg | 1000 | |
| 1.4 | Load Center | C | mm | 400 | |
| 1.5 | Wheelbase | L0 | mm | 974 | |
| 1.6 | Wheel Distance: FR | W1 | mm | 400/518 | |
| 1.7 | Wheel Distance: RR | W2 | mm | 740 | |
| 1.8 | Operate type | Walkie | |||
| Size | 2.1 | Front Wheel | mm | φ80×60 | |
| 2.2 | Universal Wheel | mm | φ40×36 | ||
| 2.3 | Middle Wheel | mm | φ65×30 | ||
| 2.4 | Driving wheel | mm | φ250×70 | ||
| 2.5 | Middle Wheel Position | L4 | mm | 160 | |
| 2.6 | Length of Outriggers | L3 | mm | 771 | |
| 2.7 | Max. Fork Height | H | mm | 800/1000/1300 | |
| 2.8 | External Distance Between Forks | W3 | mm | 565/685 | |
| 2.9 | Length of Fork | L2 | mm | 1195/1295 | |
| 2.10 | Thickness of Fork | B1 | mm | 60 | |
| 2.11 | Width of Fork | B2 | mm | 193/253 | |
| 2.12 | Overall Length | L1 | mm | 1650/1750 | |
| 2.13 | Overall Width | W | mm | 700/780 | |
| 2.14 | Overall Height (Mast Closed) | H1 | mm | 1166/1366/1666 | |
| 2.15 | Overall Height (Max. Fork Height) | H1 | mm | 1850/2250/2850 | |
| Performance and Configuration | 3.1 | Lifting speed | mm/h | 55 | |
| 3.2 | Descent speed | mm/h | 100 | ||
| 3.3 | Lift Motor Power | kw | 1.6 | ||
| 3.4 | Driving Motor Power | kw | 0.6 | ||
| 3.5 | Max. speed(Turtle speed / full-load) | km/h | 1/3.5 | ||
| 3.6 | Grade Ability(Full-load/NO-load) | % | 5/10 | ||
| 3.7 | Battery voltage | V | 48(Lithium) | ||
| 3.8 | Battery capacity | Ah | 15 | ||
| Weight | 4.1 | Battery weight | kg | 5 | |
| 4.2 | Truck(Battery included) | kg | 340/348/356 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
