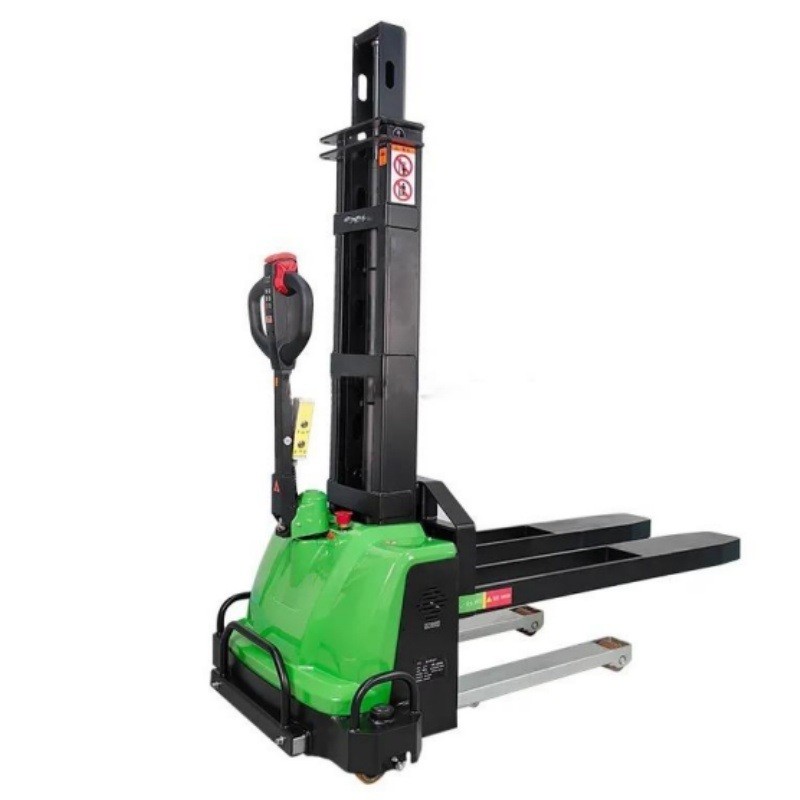

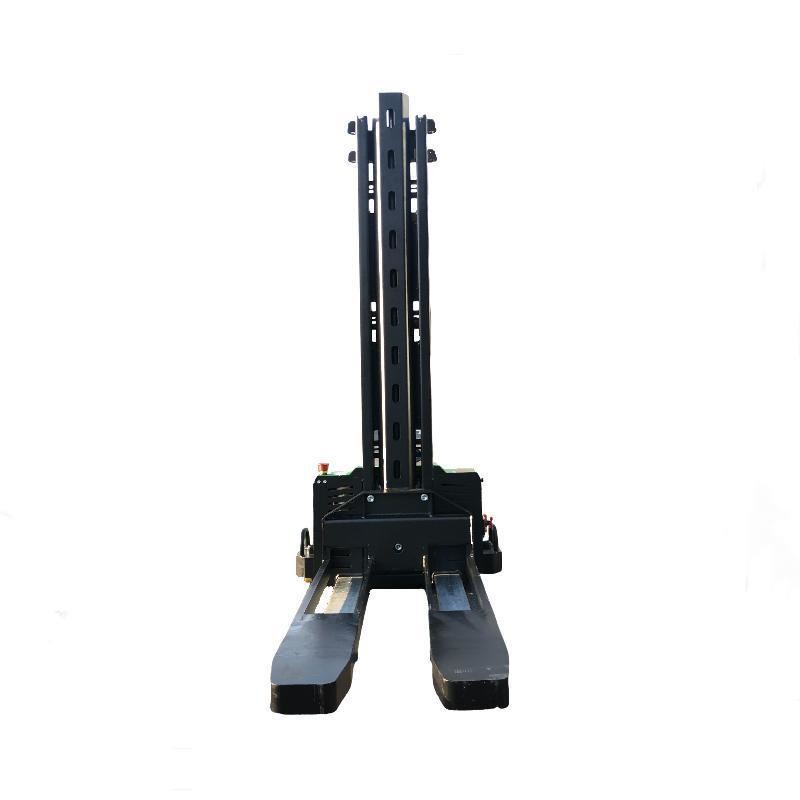

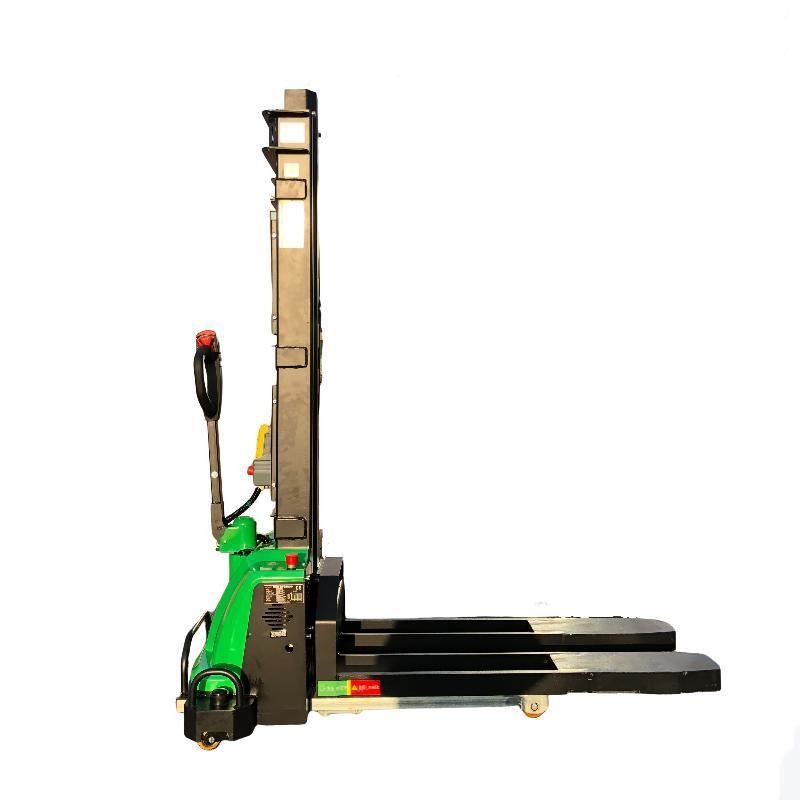

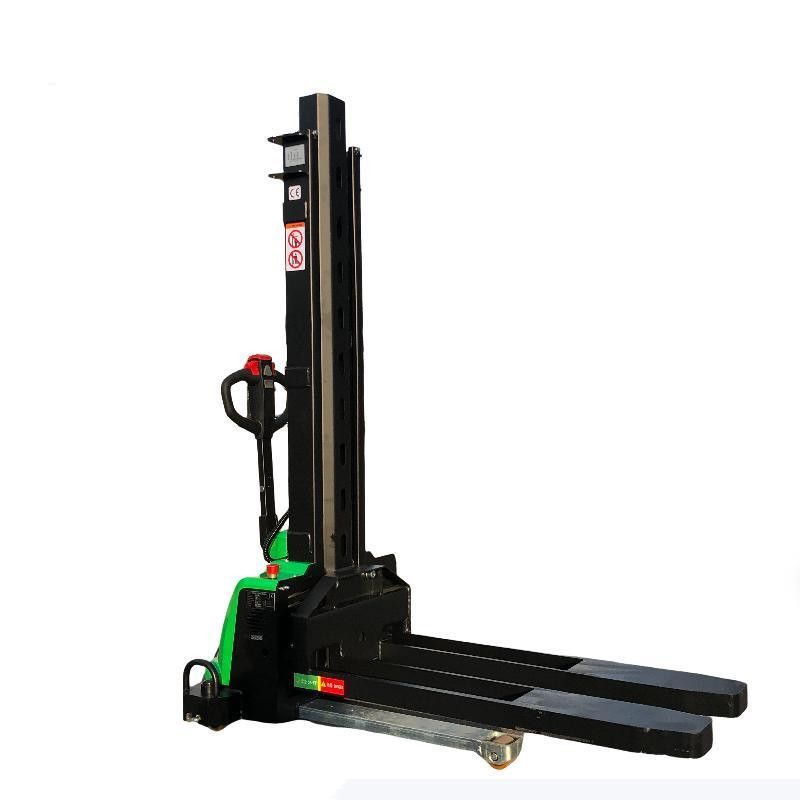

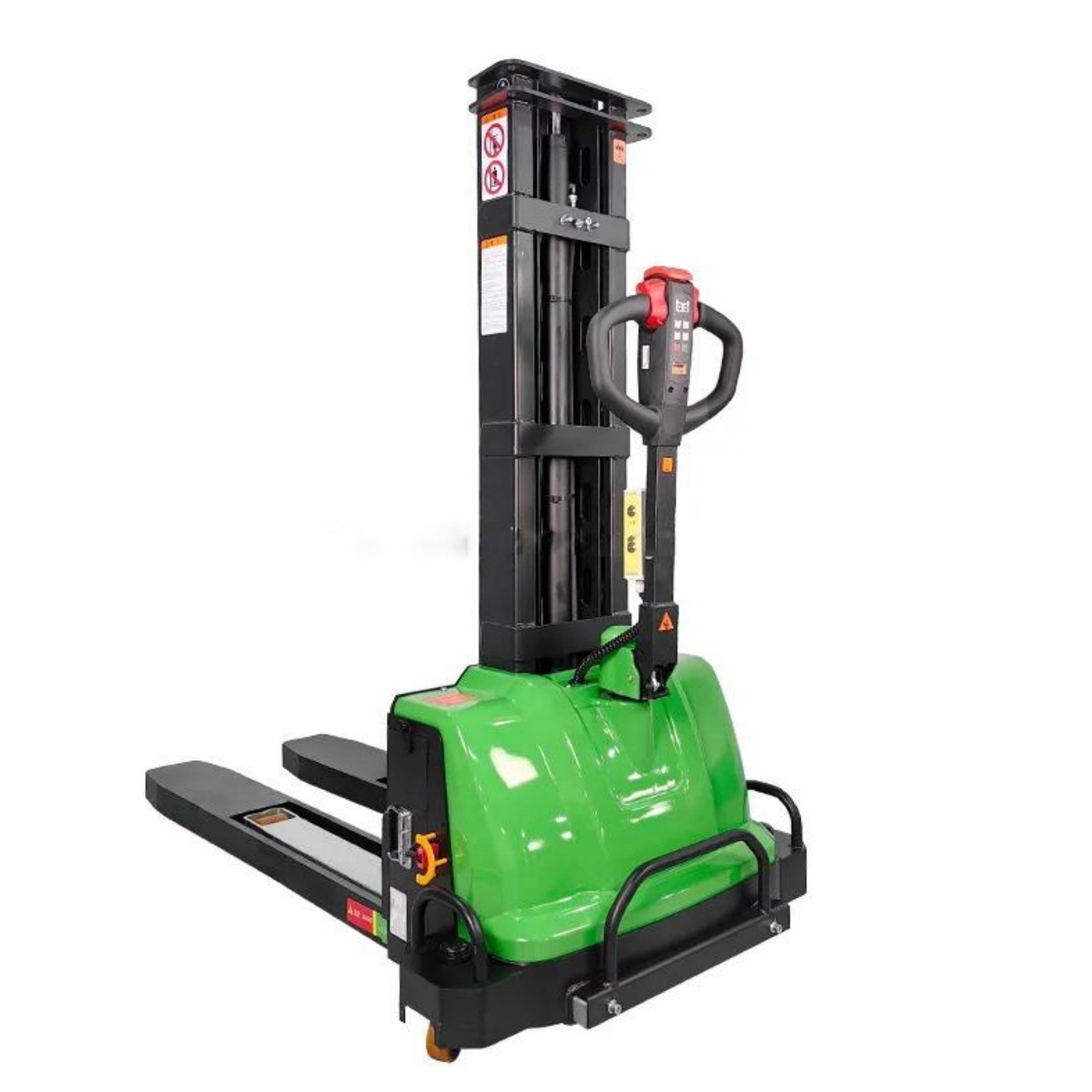

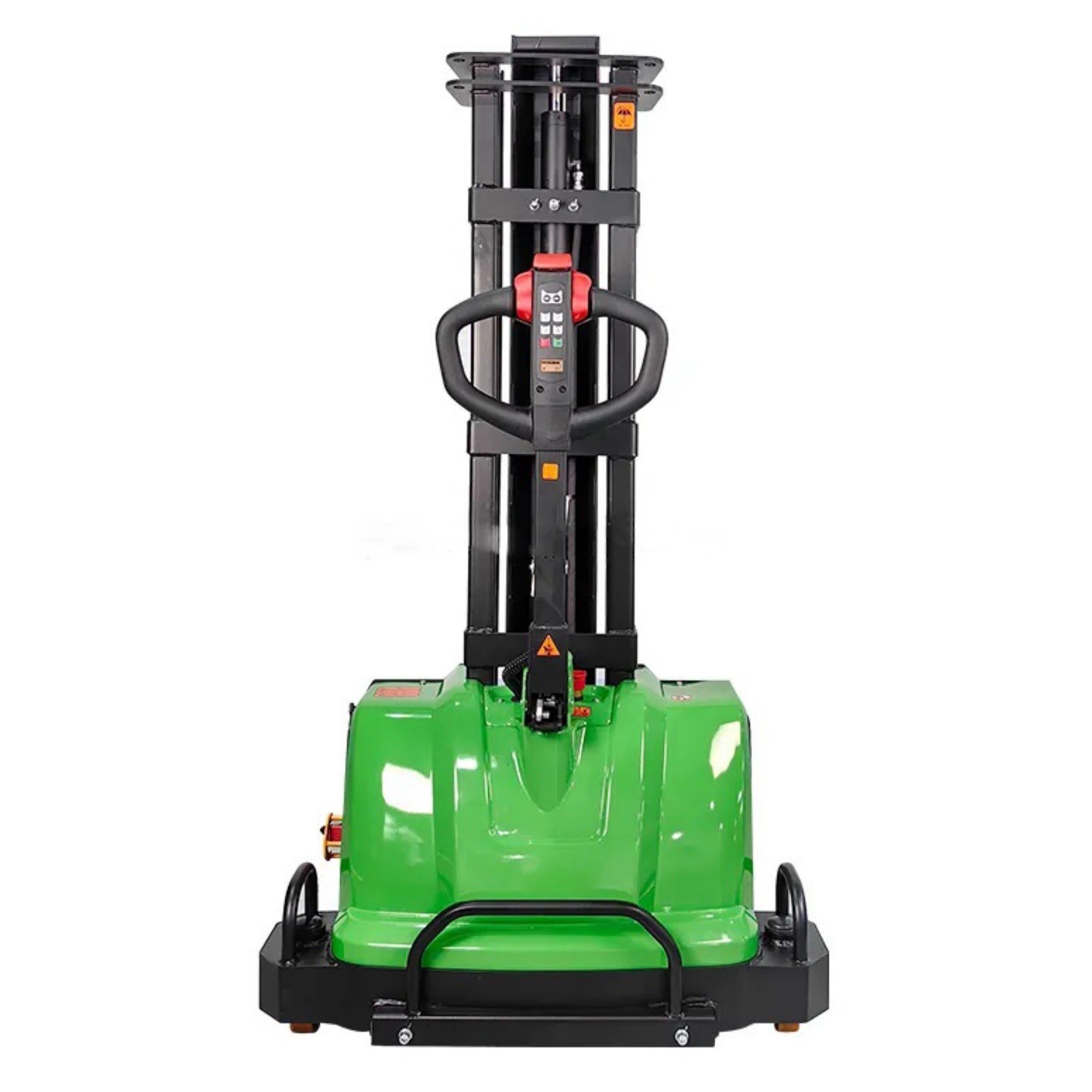

Electric Self Loading Stacker with Adjustable Lifting Height of 800/1000/1300/1600mm
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLF1300 | Type | Stacker |
|---|---|---|---|
| Power | Full Electric | Load Capacity | 500 / 700 / 1000/ 1300 /1500kgs |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800/1000/1300/1600mm | Condition | New |
| Product Name | Self Lifting Stacker | Model | Hslf1300 |
| Material Of Wheels | Polyurethane/Nylon | Battery | 48V / 30ah |
| Drive Motor | Manual | Charger | Included |
| Lifting Height | 800/1000/1300/1600mm | Fork Length | 1200mm |
| Weight | 300kgs | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 180*100*180(H)cm | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 3000units/Year | Package Size | 180.00cm * 100.00cm * 180.00cm |
| Package Gross Weight | 320.000kg |
Product Description
1.3ton 1.6m Portable Lifting Equipment Electric Slef Loading Stacker
Self-lift function
It can easily lift by itself to truck or other vehicles then deliver cargo to customers' door by it. This changes traditionallogistics means and saves logistics cost.
Light design in weight
Any adult can operate it easily and it is deft and smooth during operation
Any adult can operate it easily and it is deft and smooth during operation
Double-control switch design
This will make operation more efficient and safety
This will make operation more efficient and safety
Max capacity 1300kg or 1500kg
It can satisfy heavy load logistics demands
It can satisfy heavy load logistics demands
Large capacity lithium battery 48V/30Ah
It can make sure the operation time is longer during logistics distribution and quick recharge within 2 hours
It can make sure the operation time is longer during logistics distribution and quick recharge within 2 hours
Full electric in driving and lifting
More and fast delivery efficiency
More and fast delivery efficiency
| FULL ELECTRIC STACKER | ||||
| 1 | Standard | |||
| 1.1 | Brand | HYDER | ||
| 1.2 | Model | HSLF1300 | ||
| 1.3 | Power unit | battery | ||
| 1.4 | Operation | walkie | ||
| 1.5 | Load capality | Q (kg) | 1300 | |
| 1.6 | Load center | C (mm) | 400 | |
| 2 | Tire | |||
| 2.1 | Tire type | front/rear | PU | |
| 2.2 | Tire no. Driving wheel/Bearing wheel/balanced wheel | pcs | 1/2/2 | |
| 2.3 | Driving wheel | mm | Φ190×70 | |
| 2.4 | Bearing wheel | mm | φ80×70 | |
| 2.5 | Balance wheel | mm | Φ75×35 | |
| 3 | Dimension | |||
| 3.1 | Lift height | H3(mm) | 1300/1600 | |
| 3.2 | Height in Lowerd Position | H1 (mm) | 1650/1950 | |
| 3.3 | Height in highest Position | H4 (mm) | 2880/3180 | |
| 3.4 | Fork height above ground | H13 (mm) | 85 | |
| 3.5 | Ground Clearance | m2 (mm) | 10 | |
| 3.6 | Total Length | L1 (mm) | 1730 | |
| 3.7 | Fork size | S/E/L(mm) | 60/195/1200 | |
| 3.8 | Body thickness | L6 (mm) | 409 | |
| 3.9 | Total Width | W (mm) | 920 | |
| 3.10 | Fork outside width | B5 (mm) | 600 | |
| 4 | Performance | |||
| 4.1 | Gradeability(full load/unload) | % | 3/5 | |
| 5 | Electric Configuration | |||
| 5.1 | Drive motor/Lift motor | kw | DC0.75/DC2 | |
| 5.2 | Battery voltage/capacity | V/Ah | 48/30 Li-ion | |
| 6 | Weight | |||
| 6.1 | Battery weight | kg | 30 | |
| 6.2 | Service weight | kg | 402/417 | |
| 6.3 | Brake | Electromagnetic Brake | ||
| 6.4 | Steering Power | - | mechanical | |
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 15years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5:Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
