Electric Stacker 2000kgs 5.5m Lifting Htb20-SA Package Size 211.00cm * 85.00cm * 207.00cm
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTB20-SA | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 2t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 5.5m | Condition | New |
| Product Name | Standing On Stacker/Standing On Jack/Truck | Lifting Height | 3000-5500 |
| Application | Warehouse | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Model | Htb20-SA |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2110X850X2070MM |
| Trademark | HYDER | Origin | China |
| HS Code | 8427109000 | Supply Ability | 3000 Sets/Year |
| Package Size | 211.00cm * 85.00cm * 207.00cm | Package Gross Weight | 1150.000kg |
Product Description

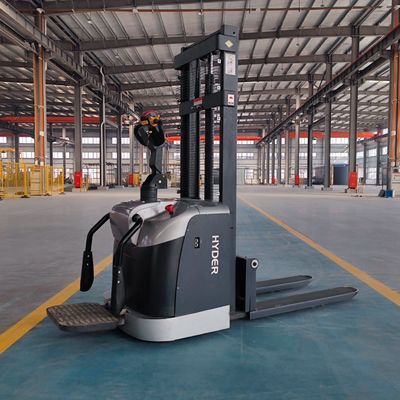

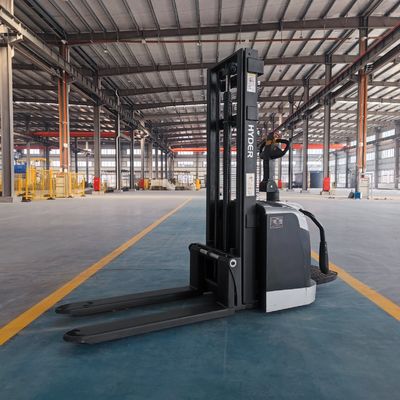

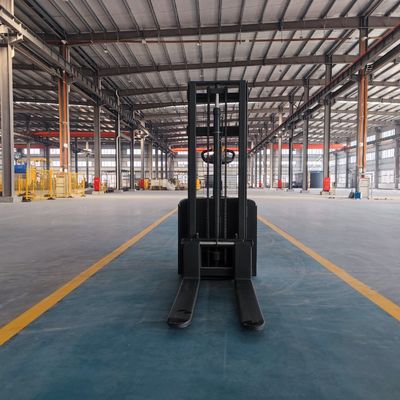

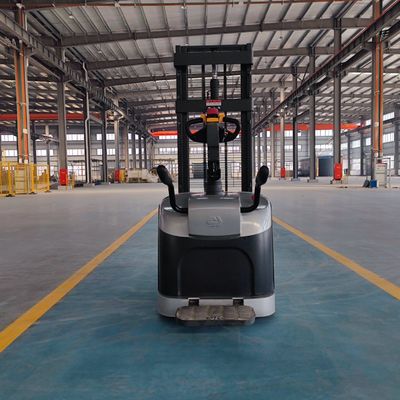

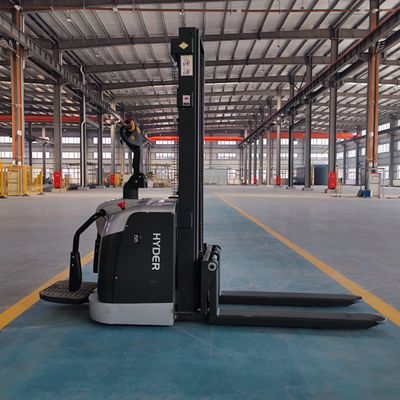

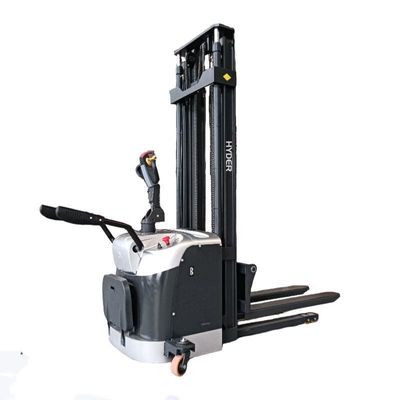

Cost Effective AC Motor 2000kgs 5.5m Lifting Standing Electric Stacker
The electric pallet truck uses the battery as the power source, the motor as the power, and drives the vehicle to walk through the gear transmission. The lifting of the fork depends on the DC motor and hydraulic transmission, and the oil cylinder moves up and down to lift the fork and the goods. It has the characteristics of labor saving, high efficiency, smooth operation of goods, simple operation, safety and reliability, low noise and no pollution. The forklift uses a 48-volt large-capacity battery, which greatly prolongs the use time after one charge.
| Standing - on Stacker | ||||||||
| 1 | Manufacturer | HYDER | ||||||
| 2 | Model | HTB20-SA | HTB20-SB | HTB20-SA | HTB20-SA | |||
| 3 | Power type | Battery | Battery | Battery | Battery | |||
| 4 | Rated load capacity | kg | 2000 | 2000 | 1500 | 2000 | ||
| 5 | Load center | mm | 500 | 500 | 500 | 500 | ||
| 6 | Operate type | Standing on | Standing on | Standing on | Standing on | |||
| 7 | Total length | mm | 860 | 860 | 860 | 860 | ||
| 8 | Mast closed height | mm | 2080 | 2080 | 2080 | 2080 | ||
| 9 | Lift height | mm | 3000 | 3000 | 3000 | 3000 | ||
| 10 | Mast extended height | mm | 3500 | 3500 | 3500 | 3500 | ||
| 11 | Min working aisle width | mm | 2500 | 2500 | 2500 | 2500 | ||
| 12 | Fork mini ground clearance | mm | 85 | 85 | 85 | 85 | ||
| 13 | Min turning radius | mm | 1612 | 1612 | 1612 | 1612 | ||
| 14 | Fork size(L*W*H) | mm | 1150*180*55 | 1150*180*55 | 1100*170*55 | 1100*170*55 | ||
| 15 | Max lifting speed (no load) | mm/s | 100 | 100 | 100 | 100 | ||
| 16 | Max lifting speed (full load) | mm/s | 560 | 560 | ||||
| 17 | Max driving speed (no load) | km/h | 5.5 | 5.5 | 5.5 | 5.5 | ||
| 18 | Max driving speed (full load) | km/h | 4.5 | 5.5 | 4.5 | 4.5 | ||
| 19 | Max gradeability(full /noload) | % | 5.0/7.0 | 5.0/7.0 | 3.0/5.0 | 3.0/5.0 | ||
| 20 | Driving motor | kw | AC2.0(vertical) | AC1.5(horizontal type) | DC0.75 | AC1.5 | ||
| 21 | Lifting motor | kw | 2.2 | 2.2 | DC2.2 | 2.2 | ||
| 22 | Total weight | kg | 1250 | 1150 | 730 | 750 | ||
| 23 | Battery capacity | V/AH | 24V/210AH | 24V/210AH | 24V/100AH | 24V/160AH | ||
| 24 | Chager | V/A | 24V/25A | 24V/25A | 24V/18A | 24V/18A | ||
| 25 | Mast protection | Yes(Acrylic) | Yes(Metal) | Yes(Metal) | Yes(Metal) | |||
| 26 | Bearing wheel size(front) | mm | 80X70 | 80X70 | 80X70 | 80X70 | ||
| 27 | Balance wheel size(black) | mm | 125X50 | 125X50 | 125X50 | 125X50 | ||
| 28 | Service Brake | Electric magnetic | Electric magnetic | Electric magnetic | Electric magnetic | |||
| 29 | Steering type | EPS | Mechanical | Mechanical | Mechanical | |||
| 30 | Working hours | h/cycles | 6-8 | 6-8 | 4.5/80 | 4.5/80 | ||
| 31 | Mast steel | Hrs | H shaped steel | H shaped steel | C shaped steel | C+H shaped steel | ||
*Energy -saving design
*24V electrical system for different use
* Cost-effective deign with AC Motor
*EPS function optional
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
* Complete steel cover and side guards
*24V electrical system for different use
* Cost-effective deign with AC Motor
*EPS function optional
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
* Complete steel cover and side guards
Shaanxi Hyder Intelligent Machinery Co., Ltd ,The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company ,offices brancheds located in Shanghai,Anhui,Shannxi.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5: Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
