Driver / Seat Operating Type Forklift 2.5t Electric Forklift Truck with Full Free Mast

Fork Lift 2.5t Electric Forklift Truck Battery Forklift with Three Stage Full Free Mast Triplex Full Free Mast

Product Description

Counter Balance Electric Forklifts are forklifts that are powered by electric motors instead of internal combustion engines.
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.

HYDER CPD25 ELECTRIC FORKLIFT SPECIFICATION
Characteristic	Brand	HYDER
	Model			CPD25
	Power Type			Battery
	Operator type			Seated
	Loading Rating	Q	kg	2500
	Load center	c	mm	500
	Front overhang	L2	mm	445
	Wheelbase	L1	mm	1485
Size	Front/rear Angle of gantry and fork	α/β	°	6/12
	Overall height (at the lowest fork)	H1	mm	2040
	Free lift  height	H3	mm	130
	Standard Mast lift height	H	mm	3000
	Overall height (at the highest fork)	H2	mm	4036
	Overhead guard height	H4	mm	2120
	Seat height off the ground		mm	1070
	Traction pin height		mm	308
	Total length(Iincluding fork)	L	mm	3415
	Length to the vertical surface of the fork	L'	mm	2345
	Total width	W1	mm	1175
	Fork size	T/W/L4	mm	40/122/1070
	Fork carriage Type A,B			ISO2328 2A
	Fork carriage outside width		mm	1038
	Fork regnlate width	W5	mm	247-995
	Ground clearance at the lower end	H5	mm	107
	Ground clearance at center of wheelbase	H6	mm	120
	Right-angle Aisle width(pallet1000x1200)	Ast	mm	3725
	Right-angle Aisle width(pallet800x1200)	Ast	mm	3925
	Turning radius	r	mm	2080
Weight	Dead weight (incl. battery)		kg	4180
	Full front axle load		kg	5845
	Full rear axle load		kg	835
	Unloaded front axle load		kg	1742
	Unloaded rear axle load		kg	2438
Tires and Chassis	Wheel type			Pneumatic tire
	Front wheel			7.00-12NHS-12PR
	Rear wheel			18X7-8-14PR
	Number of wheels(x=Drive wheel)			2x/2
	Front Gauge		mm	970
	Rear Gauge		mm	950
Performance Parameter	Driving speed(load/unload)		km/h	14/15
	Lifting speed(load/unload)		mm/s	310/450
	Lowering speed(load/unload)		mm/s	450/410
	Max.gradeability(load/unload)		%	15/20
	service brake type			hydraulic
	Parking Brake Type			mechanical
Power Unit	Driving motor power S2 60mins		kW	11
	Lifting motor power S3 15%		kW	11
	Battery voltage/nominal capacityK5		V/Ah	48/630 (600-X-700)
	Battery weight		kg	990 (930-1200)
	Maximum size of battery		mm	975x522x675
Other	Controller manufacturer			CURTIS
	Controller Type			1234SE+1232SE
	Intensity of pressure		bar	140
	Liters per minute		L/min	65
	Hydraulic tank volume		L	35
	Sound level at the driver's ear		dB	72

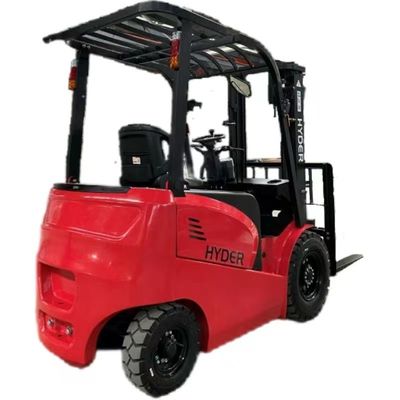

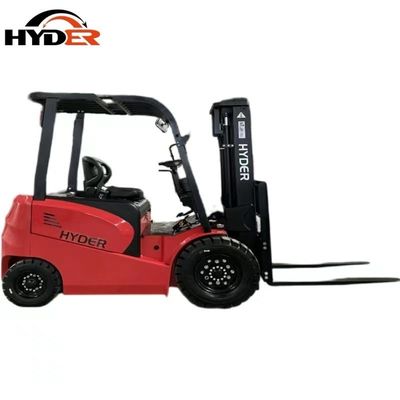

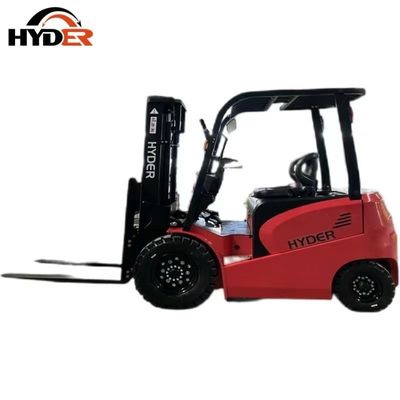

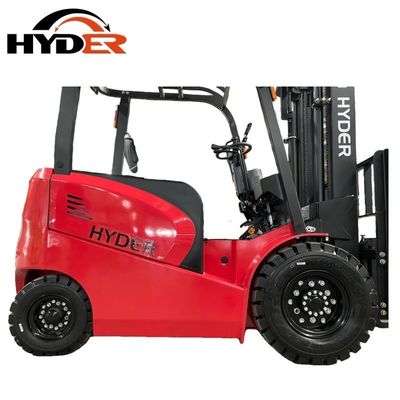

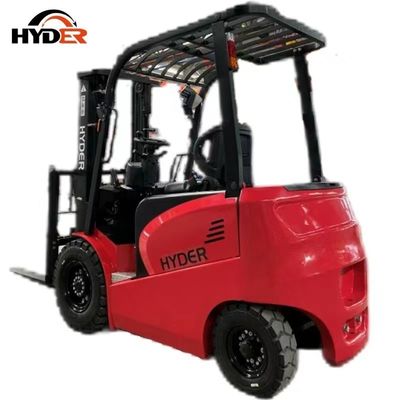

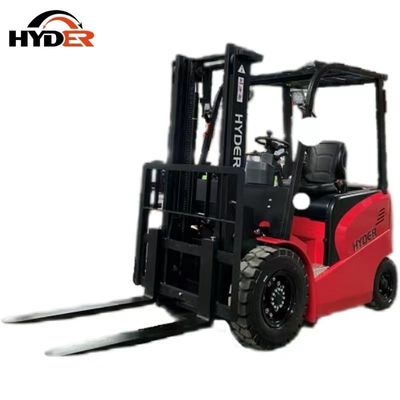

Detailed Photos



Maximizing Efficiency with Counterbalance Electric Forklifts: Tips and Tricks
Are you looking to improve the efficiency of your warehouse operations?
One effective solution is to invest in counterbalance electric forklifts. These eco-friendly and energy-efficient machines offer a range of benefits, from reducing operating costs to improving productivity.
Here are some tips and tricks for maximizing the efficiency of your counterbalance electric forklifts:
1. Choose the right load capacity: It's important to select a forklift with the right load capacity for your business needs. A forklift with a higher load capacity than necessary can result in wasted energy and decreased efficiency.
2. Optimize your warehouse layout: Design your warehouse layout with your forklifts in mind. This includes creating designated areas for loading and unloading, as well as ensuring that there is enough space for your forklifts to maneuver.
3. Train your operators: Proper operator training is crucial for maximizing the efficiency of your forklifts. Ensure that your operators are trained on the specific model of forklift they will be using, and that they know how to operate it safely and efficiently.
4. Regular maintenance: Regular maintenance is essential for keeping your forklifts running smoothly and efficiently. This includes routine inspections, cleaning, and servicing.
5. Use telematics: Telematics technology can help you monitor and optimize the performance of your forklift fleet. This includes tracking usage, identifying areas for improvement, and scheduling maintenance.
By following these tips and tricks, you can maximize the efficiency of your counterbalance electric forklifts and improve your warehouse operations. Contact a reputable forklift dealer today to learn more about the benefits of these machines and how they can help your business.




Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
