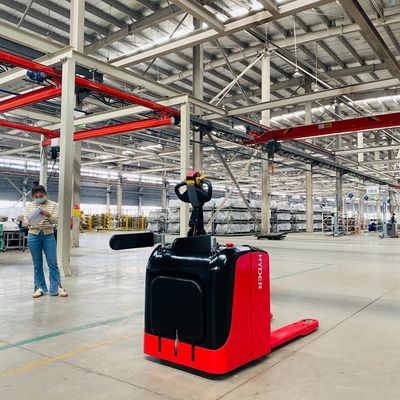

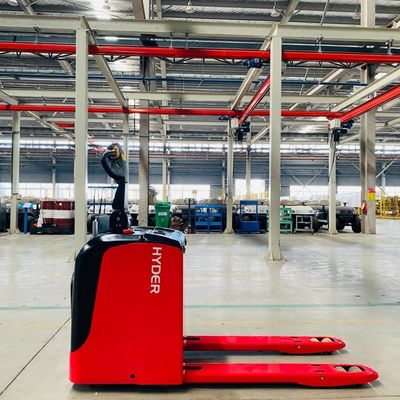

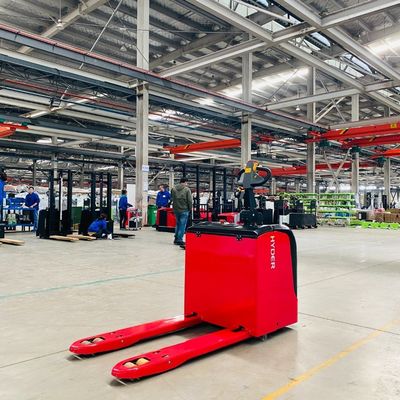

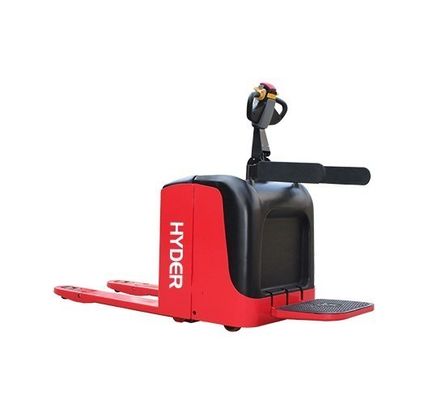

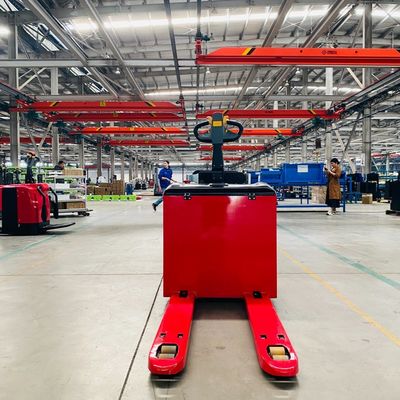

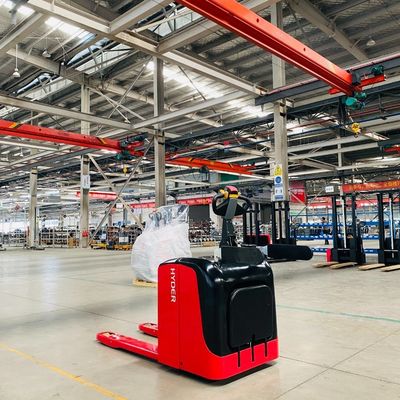

Pallet Truck with Standing Pedal and 2.2kw Lift Motor from American Curtis Controller
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTE25 | Type | Powered Pallet Truck |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 2.0t-2.5t |
| Fuel | Electric | Load Center | 600 |
| Lift Height | >5000mm | Condition | New |
| Name | 2.5t Standing On Electric Pallet Truck With EPS | Model | Hte25 |
| Drive Motor | AC1.5 | Lift Motor | 2.2kw |
| Battery Voltage/Capacity | 24V/210ah | Contorller | American Curtis |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2010X800X1380MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84272099 | Supply Ability | 3000 Sets/Year |
Product Description
Electric Power Pallet Truck Jack Standing-onPallet truck Pallet Jack
An electric pallet truck jack is a powered material handling vehicle used to lift and move pallets or other heavy loads over short distances.
It consists of a platform to hold the load, a set of forks to slide under the load, and an electric motor to power the lifting and movement of the load.
Electric pallet truck jacks are commonly used in warehouses, distribution centers, and manufacturing facilities to improve efficiency and reduce manual labor.
Pallet trucks are essential tools for any warehouse or industrial setting.Our high-quality pallet trucks are designed to handle heavy loads with ease, providing efficient and safe material handling solutions.we offer the perfect pallet truck for your specific needs.
Contact us to improve your warehouse operations now.
It consists of a platform to hold the load, a set of forks to slide under the load, and an electric motor to power the lifting and movement of the load.
Electric pallet truck jacks are commonly used in warehouses, distribution centers, and manufacturing facilities to improve efficiency and reduce manual labor.
Pallet trucks are essential tools for any warehouse or industrial setting.Our high-quality pallet trucks are designed to handle heavy loads with ease, providing efficient and safe material handling solutions.we offer the perfect pallet truck for your specific needs.
Contact us to improve your warehouse operations now.
| Standard | |||
| manufacturer | HYDER FORKLIFT | ||
| model | HTE20/HTE25/HTE25-S | ||
| power type | electric | ||
| operation | stand-on | ||
| load capacity | (kg) | 2000kgs/2500kgs | |
| loading center | (mm) | 600 | |
| Tire | |||
| wheel type | PU wheel | ||
| front wheel | 80*70 | ||
| driving wheel | 230*75 | ||
| balance wheel | 125*50 | ||
| wheel no. front/rear wheel | 1x2/4 | ||
| Dimension | |||
| the handle height to ground | (mm) | 1380 | |
| fork max lifting height | (mm) | 205 | |
| fork clearance height | (mm) | 85 | |
| overall length (without pedal) | (mm) | 2010 | |
| wheel base | (mm) | 1450 | |
| tread (front/rear) | (mm) | 385/510 /560 | |
| fork size | (mm) | 1150*175 | |
| overall width | (mm) | 800 | |
| fork spread | (mm) | 560/685 | |
| inner width of forks | (mm) | 210/335 | |
| pedal width | (mm) | 547 | |
| turning radius | (mm) | 1785 | |
| aisle width (800*1200 pallet) | Ast(mm) | 2500 | |
| Aisle width (1000*1200 pallet) | Ast(mm) | 2590 | |
| Function | |||
| travel speed loden/unloaden | km/h | 5/5 | |
| lifting speed loaden / unloaden | mm/s | 30/35 | |
| lowering speed loaden/unloaden | mm/s | 50/25 | |
| gradeability loaden/unloaden | % | 8/10 | |
| Power | |||
| driving motor type | AC | ||
| driving motor power | kw | 1.5 | |
| lifting motor type | DC | ||
| lifting motor power | kw | 1.2 | |
| battery voltage/capacity | v/Ah | 24/210 | |
| controller | contorller | American CURTIS | |
| Weight | |||
| battery weight | kg | 190 | |
| total weight (with battery) | kg | 680 | |
| Steering braking | |||
| steering | with EPS | ||
| braking model | Electromagnetic | ||
Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate.
HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
HYDER, Your Delivery Effective Resource!
