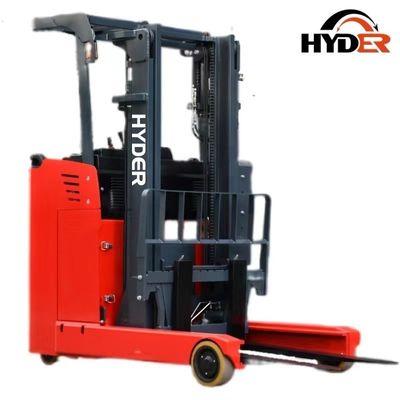

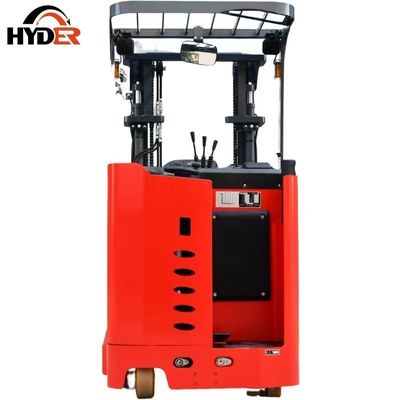

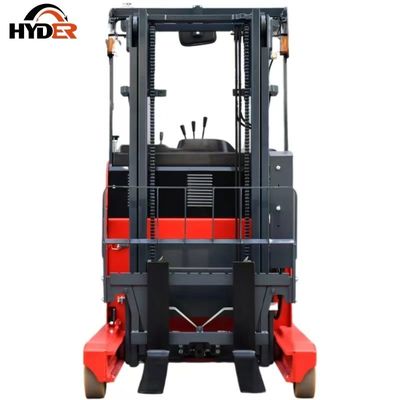

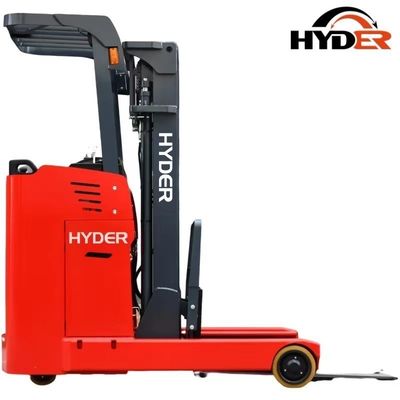

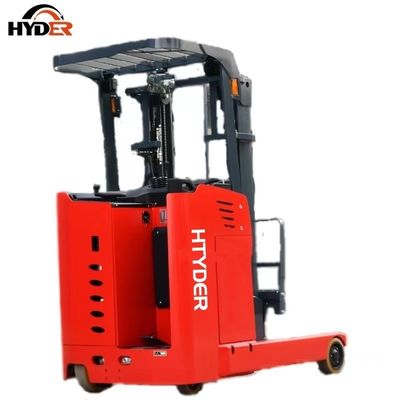

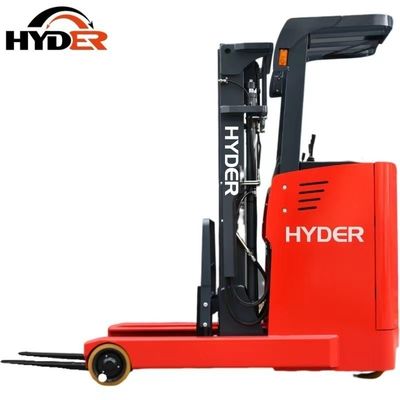

DC Motor Standing on Electric Reach Truck Forklift HTF15 1.5ton-3ton
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTF15 | Type | Reach Forklift |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 1.5t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 3000-4500 | Condition | New |
| Name | 1.5t Electric Reach Truck | Model | Htf15 |
| Drive Motor | AC Motor | Lift Motor | DC Motor |
| Battery Voltage/Capacity | 48V/300ah | Contorller | American Curtis |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2284X1098X2085MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84271090 | Supply Ability | 3000 Sets/Year |
Product Description
HYDER China Standing on Electric Reach Truck 1.5TON-3TON
Reach Forklift rely on the mast or fork frame to move back and forth to maintain balance. The mast or the fork frame of the reach-type forklift can move forward and backward. The mast-type forklift refers to that the mast drives the fork to move forward during operation, and stretches out of the front wheel to pick up or put down the goods. The fork belt cargo is retracted so that the center of gravity of the cargo is within the support surface. The forward-moving forklift refers to that the shelf drives the fork to move forward outside the front wheels for operation, and the fork frame drives the fork to retract into the support plane when walking
| Electric Reach Truck HTF15 | ||||
| Standard | ||||
| 1.1 | Brand | HYDER | HYDER | |
| 1.2 | Model | HTF15(Duplex mast) | HTF15(Triplex full free mast) | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation type | Stand on | Stand on | |
| 1.5 | Rated capacity | Q(kg) | 1500 | 1500 |
| 1.6 | Load center | C(mm) | 500 | 500 |
| 1.7 | Front overhang | x(mm) | 180 | 180 |
| 1.8 | Wheelbase | y(mm) | 1345 | 1345 |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 2450 | 2850 |
| 2.2 | Axle capacity with no load,drive side/load size | kg | 1625/825 | 1900/950 |
| 2.3 | Axle capacity with full load(fork forward)drive side/load size | kg | 660/3290 | 600/3750 |
| 2.4 | Axle capacity with full load(fork backward)drive side/load size | kg | 1510/2440 | 1600/2750 |
| Wheel | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Front wheel | mm | Φ254×104 | Φ254×104 |
| 3.3 | Drive wheel | mm | Φ343×108 | Φ343×108 |
| 3.4 | Auxiliary wheel | mm | Φ180×76 | Φ180×76 |
| 3.5 | Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 680 | 680 |
| 3.7 | Wheel tread,load side | b11(mm) | 964 | 1064 |
| Size | ||||
| 4.1 | Fork tilt | α/β(°) | 3/5 | 3/5 |
| 4.2 | Mast closed height | h1(mm) | 2082 | 2142 |
| 4.3 | Free Lift height | h2(mm) | 400 | 1542 |
| 4.4 | Lift height | h3(mm) | 3000 | 4500 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 3960 | 5460 |
| 4.6 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 4.7 | Pedal height | h7(mm) | 300 | 300 |
| 4.8 | Overall length | l1(mm) | 2258 | 2283 |
| 4.9 | Overall width | b1/b2(mm) | 1090 | 1090/1170 |
| 4.10 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/35 |
| 4.11 | Fork carriage width | b3(mm) | 1088 | 1088 |
| 4.12 | Fork outside width | b5(mm) | 222-650 | 222-750 |
| 4.13 | Inner leg width | b4(mm) | 750 | 856 |
| 4.14 | Reach stroke | l4(mm) | 550 | 525 |
| 4.15 | Mast ground clearance | m1(mm) | 82 | 82 |
| 4.16 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2663 | 2681 |
| 4.17 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2714 | 2737 |
| 4.18 | Turning radius | Wa(mm) | 1594 | 1594 |
| Function | ||||
| 5.1 | Driving speed(load/unload) | km/h | 9/10 | 9/10 |
| 5.2 | Lifting speed(load/unload) | mm/s | 240/400 | 200/350 |
| 5.3 | Lowering speed(load/unload) | mm/s | 300/270 | 320/280 |
| 5.4 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 5.5 | Brake type | Mechanical | Mechanical | |
| Drive | ||||
| 6.1 | Driving Motor(S2-60min) | kw | 4.5 | 4.5 |
| 6.2 | Lifting Motor(S3-15%) | kw | 7.5 | 7.5 |
| 6.3 | Battery voltage/capacity | V/Ah | 48/300 | 48/300 |
| 6.4 | Battery weight | kg | 500 | 500 |
| 6.5 | Steering system | EPS | EPS | |
| Other | ||||
| 7.1 | Battery replacement type | Side pull | Side pull | |
HYDER Work Shop Produce Line
Standing on Electric Pallet Truck Stock
Electric Standing on Stacker
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5: Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
