2420*1080*2060mm Electric Reach Truck for 1500kgs Load Capacity and 5m Ligting Height

Electric Reach Truck 1500kgs Load Capacity 5m Ligting Height

Product Description

The standing on electric reach truck,uses the battery as the power source the motor as the power, and drives the vehicle to walk through the gear transmission. The lifting of the fork depends on the DC motor and hydraulic transmission, and the oil cylinder moves up and down to lift the fork and the goods. Because the walking and lifting of the car are all electric, the driving mode is standing driving, and the steering operation is steering handle steering, so it has labor-saving, high efficiency, stable cargo operation, simple operation, safety and reliability, low noise, pollution etc.

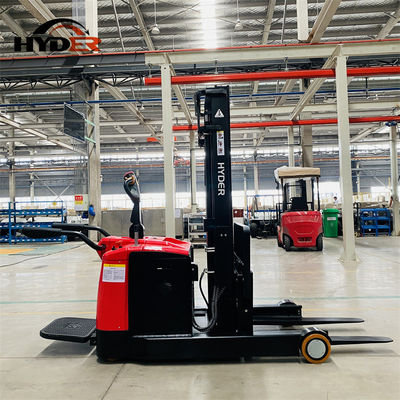

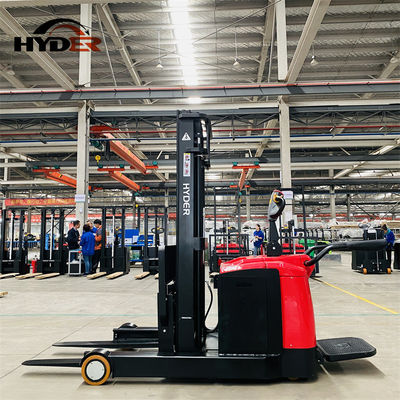

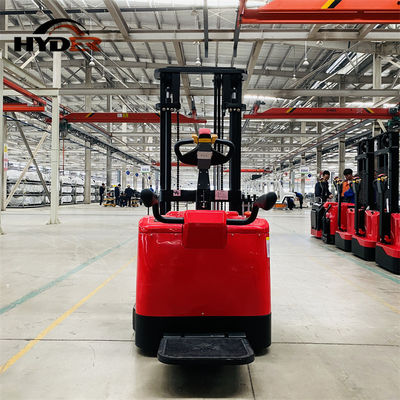

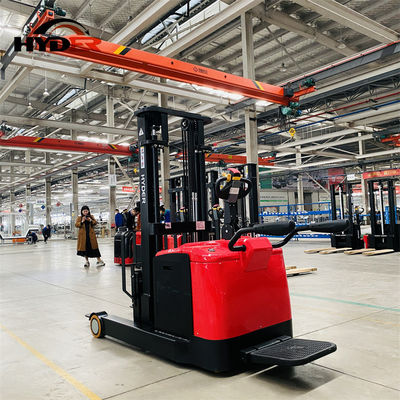

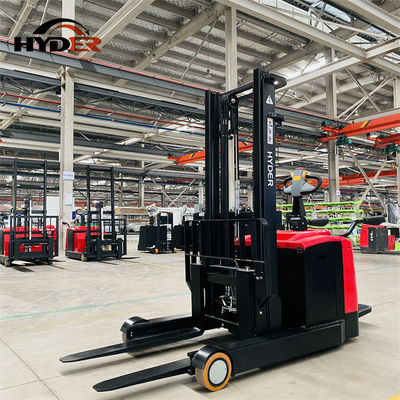

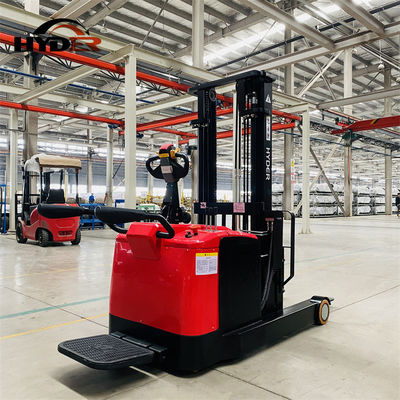

Detailed Photos

Product Parameters

Electric Reach Truck
	Model	No,	Unit	HTFA15
Performance	Maximum load capacity	Q	kg	1500
	with load center at	C	mm	600
	Maximum lifting height	H3	mm	3000
	Reach length	E	mm	580
	Tiltiing angle (up/down)	α/β		4°/ 2°
	Travel speed (without load)		km/h	6
	Travel speed (with load)		km/h	6
	Lifting speed (without load)		mm/s	160
	Lifting speed (with load)		mm/s	120
	Ascend slope ability (without load )		%	8
	Ascend slope ability (with load )		%	5
	Weight (without battery)		kg	1750
Dimensions	Overall length of frame(mast no reach)	L	mm	2245
	Overall length (mast no reach)	L1	mm	2765
	Overall length (mast reach)	L2	mm	3320
	Overall width of frame	B	mm	1030
	Overhead guard height		mm	/
	Mast lowered height	H1	mm	2040
	Max height(mast lifted with backrest)	H2	mm	3855
	Wheelbase	Y	mm	1412
	Fork length		mm	1070
	Fork width	e	mm	100
	Fork lowered height	S	mm	40
	Fork spread width		mm	225-740
	Min frounf height	m1	mm	52
	Turning radius	Wa	mm	1690
	Min intersecting aisle width	Ast	mm	2790
Tire	Front wheel		mm	∅210*85
	Drive wheel		mm	∅230*75
	Caster wheel		mm	∅115*55
	Wheel material	polyurethane
Electrical components	Drive motor type	AC series motor
	Rated output		kw	1.5
	Hoist motor type	DC series motor
	Rated output		kw	3
Battery	Voltage		V	24
	Capacity		AH	240
	Weight		kg	233

The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
