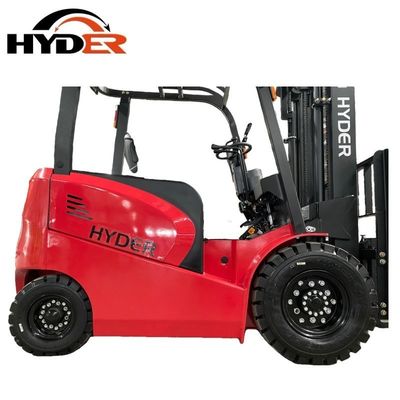

Electric Forklift Truck 2.5t 2500kg Battery Operation for Smooth Transportation
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | CPD25 | Type | Electric Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 2.5t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 3000~5000mm | Condition | New |
| Color | Red, Orange Etc. | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Name | Electric Forklift |
| Tire Type | Solid | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2250*1160*2040mm | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year |
Product Description
China Manufactural 2.5t 2500kg 3m-6m Forklift Truck Battery Operation
Electric forklift is a dual-purpose electric forklift with the function of loading and unloading and short-distance transportation of goods. It is mainly used in warehousing, logistics, handling and other places. The characteristics of electric forklifts include comfortable operation, high operational stability, easy operation, low noise, no pollution, compact manufacturing structure, flexible transportation of objects, and small turning radius. The use of electric forklifts can reduce the labor input, reduce labor intensity, improve work efficiency, shorten the time for loading and unloading goods, improve work safety, will not pollute the environment, and have zero noise. Electric forklifts can be used for stacking, loading, unloading and handling of goods in various industries such as warehousing, machinery, chemicals, textiles, printing, logistics, and medicine.
Electric forklift is a dual-purpose electric forklift with the function of loading and unloading and short-distance transportation of goods. It is mainly used in warehousing, logistics, handling and other places. The characteristics of electric forklifts include comfortable operation, high operational stability, easy operation, low noise, no pollution, compact manufacturing structure, flexible transportation of objects, and small turning radius. The use of electric forklifts can reduce the labor input, reduce labor intensity, improve work efficiency, shorten the time for loading and unloading goods, improve work safety, will not pollute the environment, and have zero noise. Electric forklifts can be used for stacking, loading, unloading and handling of goods in various industries such as warehousing, machinery, chemicals, textiles, printing, logistics, and medicine.
| CPD25 ELECTRIC FORKLIFT SPECIFICATION | ||||
| Characteristic | Brand | HYDER | ||
| Model | CPD25 | |||
| Power Type | Battery | |||
| Operator type | Seated | |||
| Loading Rating | Q | kg | 2500 | |
| Load center | c | mm | 500 | |
| Front overhang | L2 | mm | 445 | |
| Wheelbase | L1 | mm | 1485 | |
| Size | Front/rear Angle of gantry and fork | α/β | ° | 6/12 |
| Overall height (at the lowest fork) | H1 | mm | 2040 | |
| Free lift height | H3 | mm | 130 | |
| Standard Mast lift height | H | mm | 3000 | |
| Overall height (at the highest fork) | H2 | mm | 4036 | |
| Overhead guard height | H4 | mm | 2120 | |
| Seat height off the ground | mm | 1070 | ||
| Traction pin height | mm | 308 | ||
| Total length(Iincluding fork) | L | mm | 3415 | |
| Length to the vertical surface of the fork | L' | mm | 2345 | |
| Total width | W1 | mm | 1175 | |
| Fork size | T/W/L4 | mm | 40/122/1070 | |
| Fork carriage Type A,B | ISO2328 2A | |||
| Fork carriage outside width | mm | 1038 | ||
| Fork regnlate width | W5 | mm | 247-995 | |
| Ground clearance at the lower end | H5 | mm | 107 | |
| Ground clearance at center of wheelbase | H6 | mm | 120 | |
| Right-angle Aisle width(pallet1000x1200) | Ast | mm | 3725 | |
| Right-angle Aisle width(pallet800x1200) | Ast | mm | 3925 | |
| Turning radius | r | mm | 2080 | |
| Weight | Dead weight (incl. battery) | kg | 4180 | |
| Full front axle load | kg | 5845 | ||
| Full rear axle load | kg | 835 | ||
| Unloaded front axle load | kg | 1742 | ||
| Unloaded rear axle load | kg | 2438 | ||
| Tires and Chassis | Wheel type | Pneumatic tire | ||
| Front wheel | 7.00-12NHS-12PR | |||
| Rear wheel | 18X7-8-14PR | |||
| Number of wheels(x=Drive wheel) | 2x/2 | |||
| Front Gauge | mm | 970 | ||
| Rear Gauge | mm | 950 | ||
| Performance Parameter | Driving speed(load/unload) | km/h | 14/15 | |
| Lifting speed(load/unload) | mm/s | 310/450 | ||
| Lowering speed(load/unload) | mm/s | 450/410 | ||
| Max.gradeability(load/unload) | % | 15/20 | ||
| service brake type | hydraulic | |||
| Parking Brake Type | mechanical | |||
| Power Unit | Driving motor power S2 60 Mins | kW | 11 | |
| Lifting motor power S3 15% | kW | 11 | ||
| Battery voltage/nominal capacityK5 | V/Ah | 48/630 (600-X-700) | ||
| Battery weight | kg | 990 (930-1200) | ||
| Maximum size of battery | mm | 975x522x675 | ||
| Other | Controller manufacturer | CURTIS | ||
| Controller Type | 1234SE+1232SE | |||
| Intensity of pressure | bar | 140 | ||
| Liters per minute | L/min | 65 | ||
| Hydraulic tank volume | L | 35 | ||
| Sound level at the driver's ear | dB | 72 | ||
| Different lifting height | ||||
| Mast Model | Lifting Height | Mast Lowered height | Extended Height | |
| with backrest | without backrest | |||
| mm | mm | mm | mm | |
| Duplex mast (VM) | 2500 | 1790 | 3536 | 3106 |
| 2700 | 1890 | 3736 | 3306 | |
| 3000 | 2040 | 4036 | 3606 | |
| 3300 | 2190 | 4336 | 3906 | |
| 3500 | 2290 | 4536 | 4106 | |
| 4000 | 2590 | 5036 | 4606 | |
| 4300 | 2740 | 5336 | 4906 | |
| 4500 | 2840 | 5536 | 5106 | |
| 5000 | 3090 | 6036 | 5606 | |
| 5500 | 3390 | 6536 | 6106 | |
| 6000 | 3640 | 7036 | 6606 | |
| Triplex full free (VFHM) | 4000 | 1912 | 5045 | 4560 |
| 4500 | 2079 | 5545 | 5060 | |
| 5000 | 2246 | 6045 | 5560 | |
| 5500 | 2463 | 6545 | 6060 | |
| 6000 | 2630 | 7045 | 6560 | |
| Mast Model | Free Lifting height | Mast Tilt | load rating | |
| with backrest | without backrest | Front/Rear | 2.5t | |
| mm | mm | deg | Kg | |
| VM2500 | 130 | 130 | 6/12 | 2500 |
| VM2700 | 130 | 130 | 6/12 | 2500 |
| VM3000 | 130 | 130 | 6/12 | 2500 |
| VM3300 | 130 | 130 | 6/12 | 2500 |
| VM3500 | 130 | 130 | 6/12 | 2500 |
| VM4000 | 130 | 130 | 6/12 | 2300 |
| VM4300 | 130 | 130 | 6/12 | 2100 |
| VM4500 | 130 | 130 | 6/12 | 2000 |
| VM5000 | 130 | 130 | 6/12 | 1450 |
| VM5500 | 130 | 130 | 3/6 | 1350 |
| VM6000 | 130 | 130 | 3/6 | 900 |
| VFHM4000 | 896 | 1382 | 6/6 | 2150 |
| VFHM4500 | 1063 | 1549 | 6/6 | 1900 |
| VFHM5000 | 1230 | 1716 | 6/6 | 1600 |
| VFHM5500 | 1397 | 1883 | 3/6 | 1200 |
| VFHM6000 | 1564 | 2050 | 3/6 | 800 |
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
