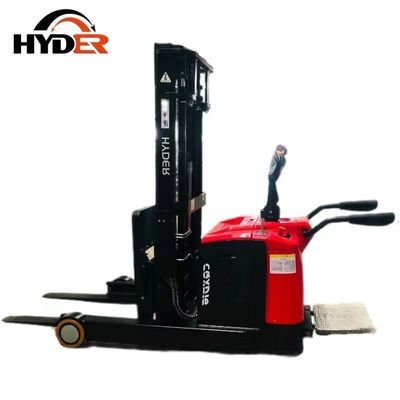

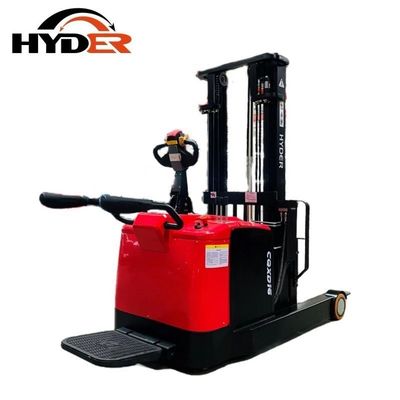

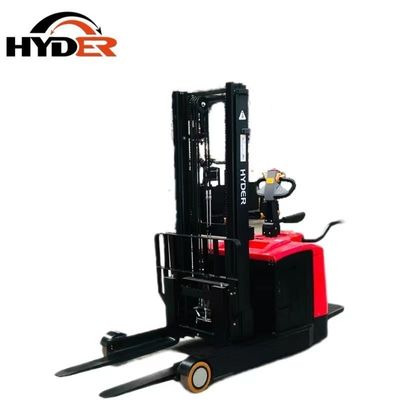

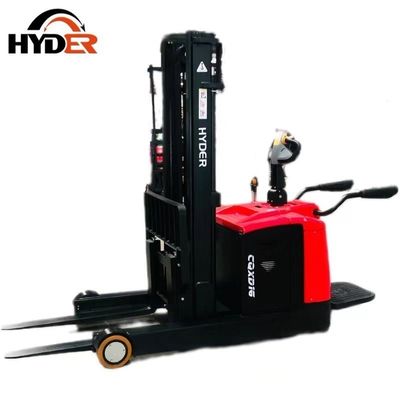

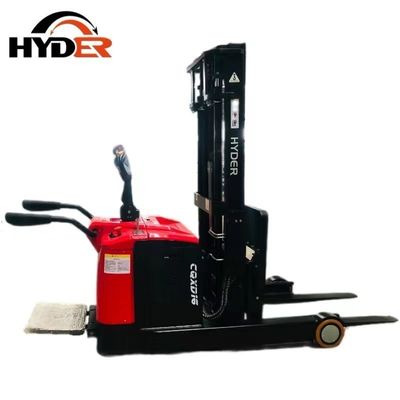

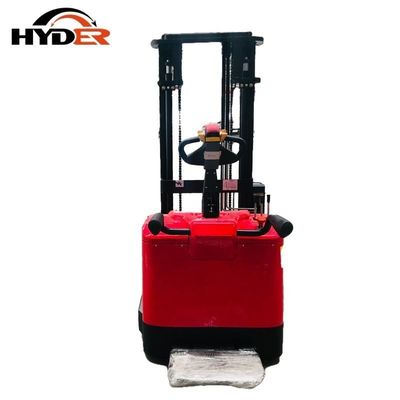

Narrow Aisle Warehouse Electric Stacker Reach Truck Forklift 1.5ton 1500kg DC Motor
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTFA15 | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1.5t |
| Fuel | Electric | Load Center | 600 |
| Lift Height | 3000mm | Condition | New |
| Color | Red, Orange Etc. | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Name | Electric Reach Forklift |
| Model | Htfa15 | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2284X1098X2085MM | Trademark | HYDER |
| Origin | China | HS Code | 84272099 |
| Supply Ability | 3000 Sets/Year |
Product Description
Warehouse Electric Stacker Reach Truck Forklift 1.5ton 1500kg Narrow Aisle for Sale
An electric reach truck is a type of material handling equipment commonly used in warehouse environments for the handling and storage of goods and pallets. It is designed to operate in narrow aisles and can lift loads to high heights.
The electric reach truck is powered by rechargeable batteries and features a mast that can extend forward and retract to place and retrieve goods from racks. Its narrow frame and manoeuvrability make it ideal for use in tightly spaced storage areas.
Electric reach trucks are typically used in applications where the aisles are narrow and high stacking is required. They are also commonly used in cold storage environments and where emissions need to be reduced.
The safety features of electric reach trucks include load sensors, tilt alarms, and speed limiters to ensure safe and efficient operation. These trucks are also equipped with ergonomic features to reduce operator fatigue and increase productivity.
An electric reach truck is a type of material handling equipment commonly used in warehouse environments for the handling and storage of goods and pallets. It is designed to operate in narrow aisles and can lift loads to high heights.
The electric reach truck is powered by rechargeable batteries and features a mast that can extend forward and retract to place and retrieve goods from racks. Its narrow frame and manoeuvrability make it ideal for use in tightly spaced storage areas.
Electric reach trucks are typically used in applications where the aisles are narrow and high stacking is required. They are also commonly used in cold storage environments and where emissions need to be reduced.
The safety features of electric reach trucks include load sensors, tilt alarms, and speed limiters to ensure safe and efficient operation. These trucks are also equipped with ergonomic features to reduce operator fatigue and increase productivity.
| HTFA15 | HTFA20 | ||||
| Performance | Maximum load capacity | Q | kg | 1500 | 2000 |
| with load center at | C | mm | 600 | 600 | |
| Maximum lifting height | H3 | mm | 3000 | 3000 | |
| Reach length | E | mm | 580 | 680 | |
| Tiltiing angle (up/down) | α/β | 4°/ 2° | 4°/ 2° | ||
| Travel speed (without load) | km/h | 6 | 6 | ||
| Travel speed (with load) | km/h | 6 | 6 | ||
| Lifting speed (without load) | mm/s | 160 | 160 | ||
| Lifting speed (with load) | mm/s | 120 | 100 | ||
| Ascend slope ability (without load ) | % | 8 | 8 | ||
| Ascend slope ability (with load ) | % | 5 | 4 | ||
| Weight (without battery) | kg | 1750 | 1780 | ||
| Dimensions | Overall length of frame(mast no reach) | L | mm | 2245 | 2445 |
| Overall length (mast no reach) | L1 | mm | 2765 | 2865 | |
| Overall length (mast reach) | L2 | mm | 3320 | 3520 | |
| Overall width of frame | B | mm | 1030 | 1030 | |
| Overhead guard height | mm | / | / | ||
| Mast lowered height | H1 | mm | 2040 | 2050 | |
| Max height(mast lifted with backrest) | H2 | mm | 3855 | 3855 | |
| Wheelbase | Y | mm | 1412 | 1612 | |
| Fork length | mm | 1070 | 1070 | ||
| Fork width | e | mm | 100 | 122 | |
| Fork lowered height | S | mm | 40 | 40 | |
| Fork spread width | mm | 225-740 | 250-740 | ||
| Min frounf height | m1 | mm | 52 | 52 | |
| Turning radius | Wa | mm | 1690 | 1890 | |
| Min intersecting aisle width | Ast | mm | 2790 | 2990 | |
| Tire | Front wheel | mm | ∅210*85 | ∅210*85 | |
| Drive wheel | mm | ∅230*75 | ∅230*75 | ||
| Caster wheel | mm | ∅115*55 | ∅115*55 | ||
| Wheel material | polyurethane | ||||
| Electrical components | Drive motor type | AC series motor | |||
| Rated output | kw | 1.5 | 1.5 | ||
| Hoist motor type | DC series motor | ||||
| Rated output | kw | 3 | 3 | ||
| Battery | Voltage | V | 24 | 24 | |
| Capacity | AH | 240 | 240 | ||
| Weight | kg | 233 | 233 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
