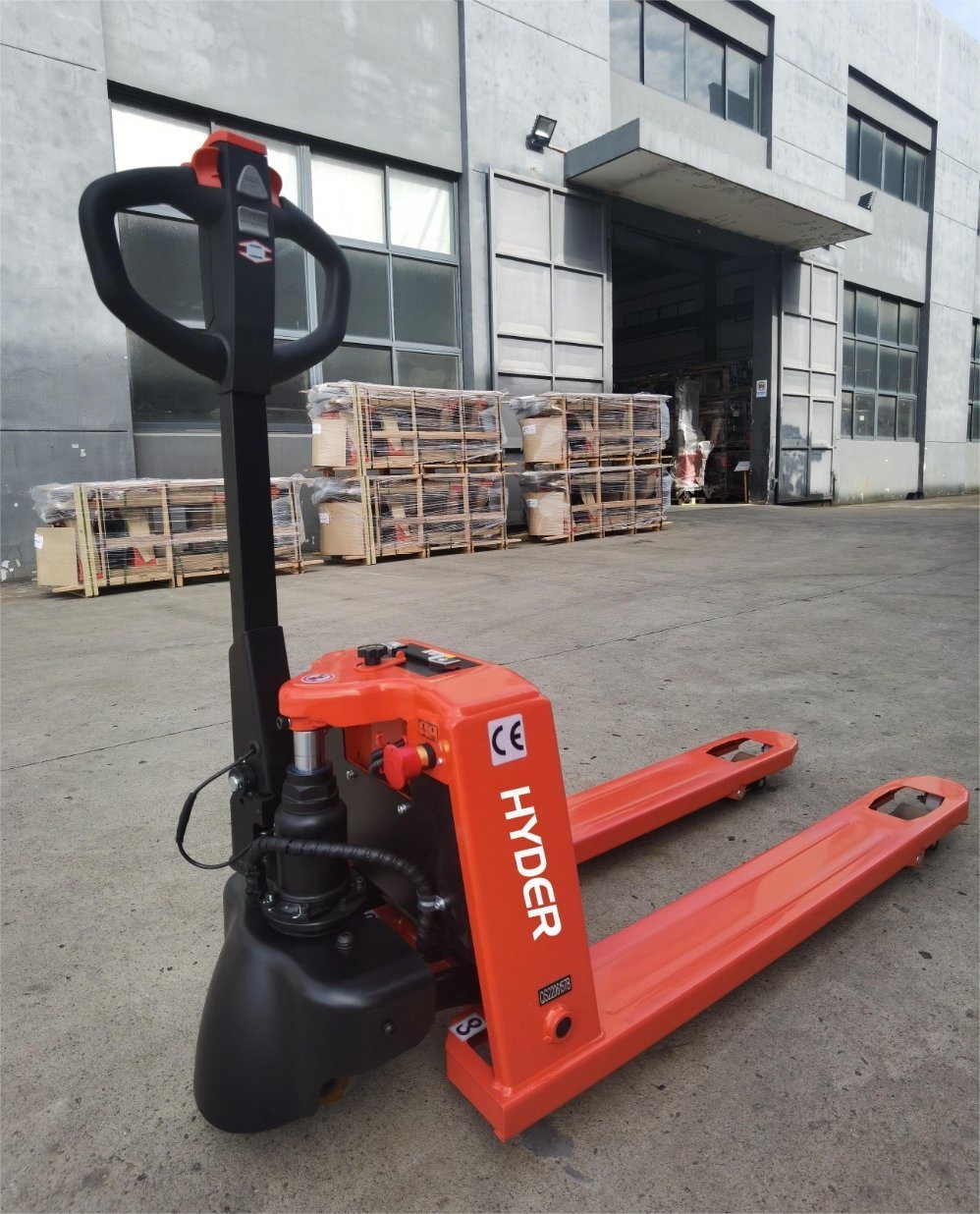

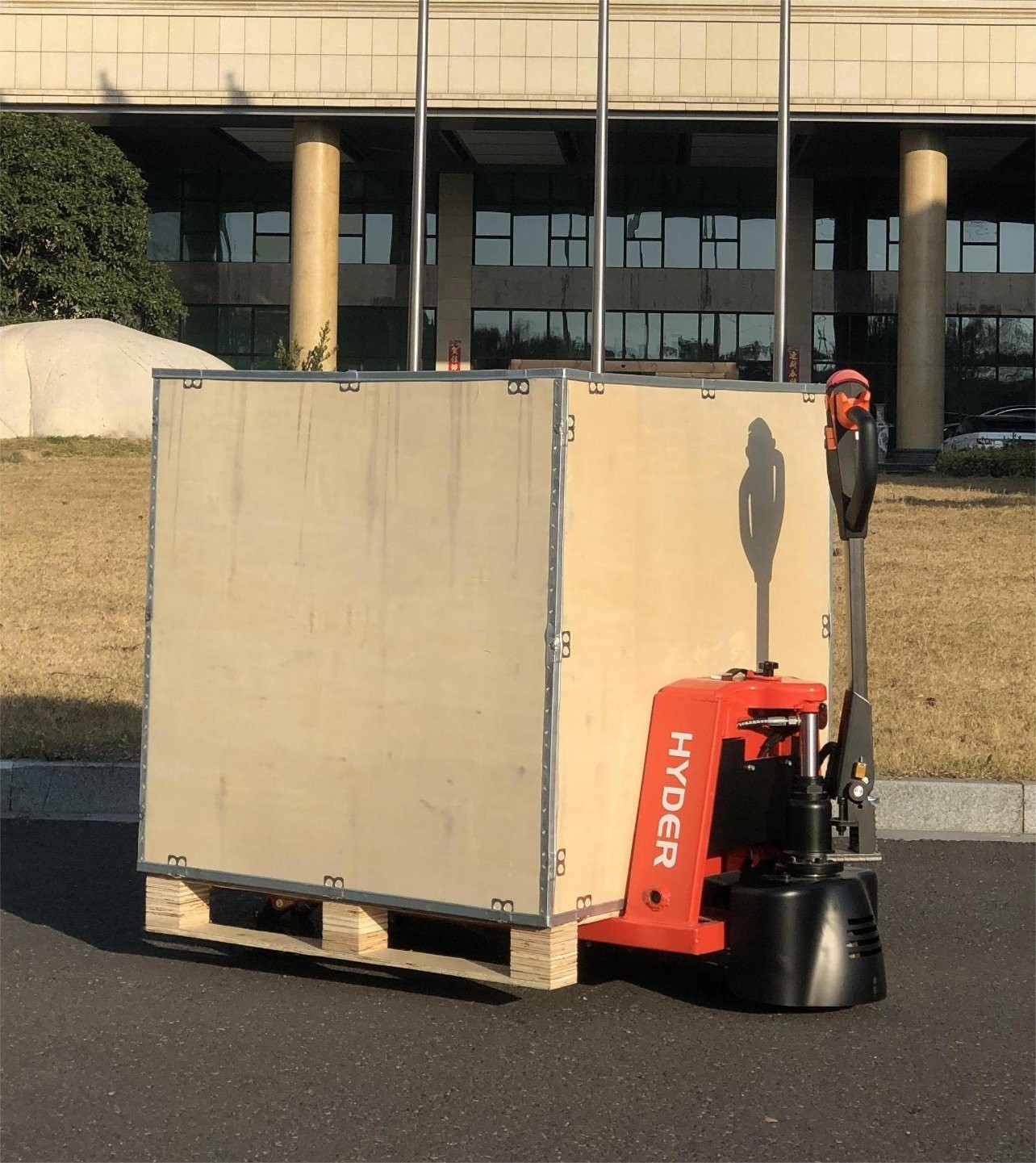

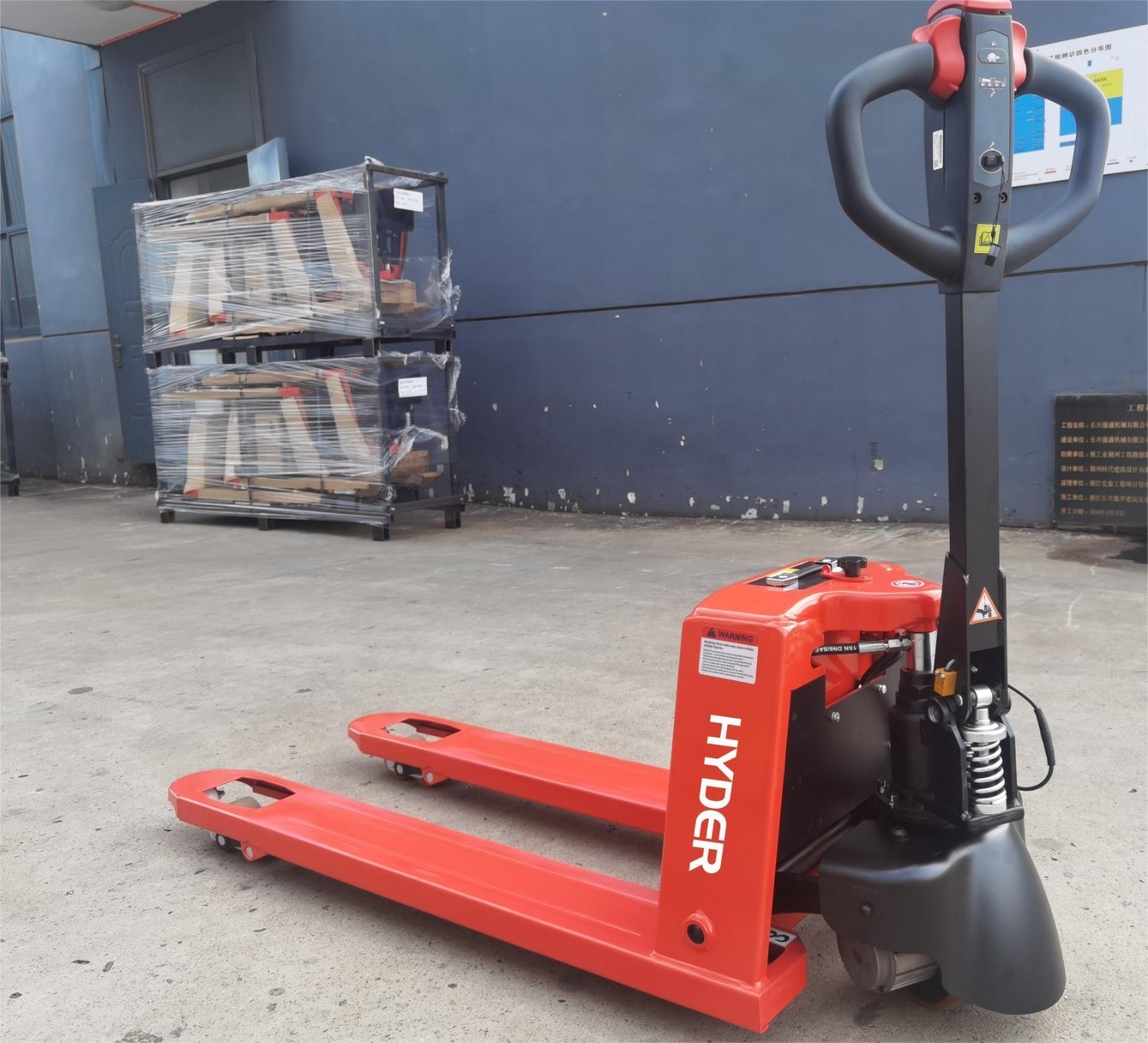

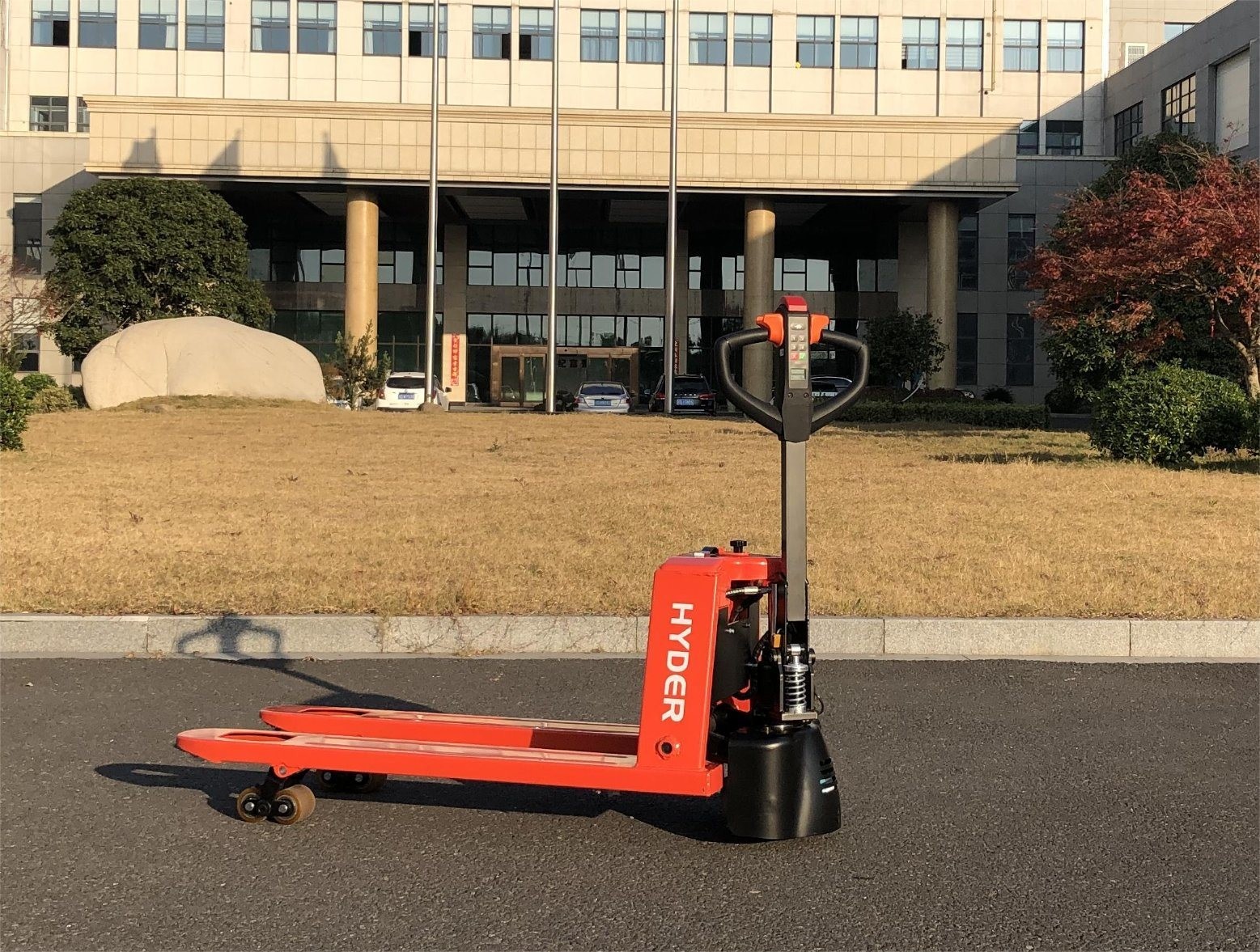

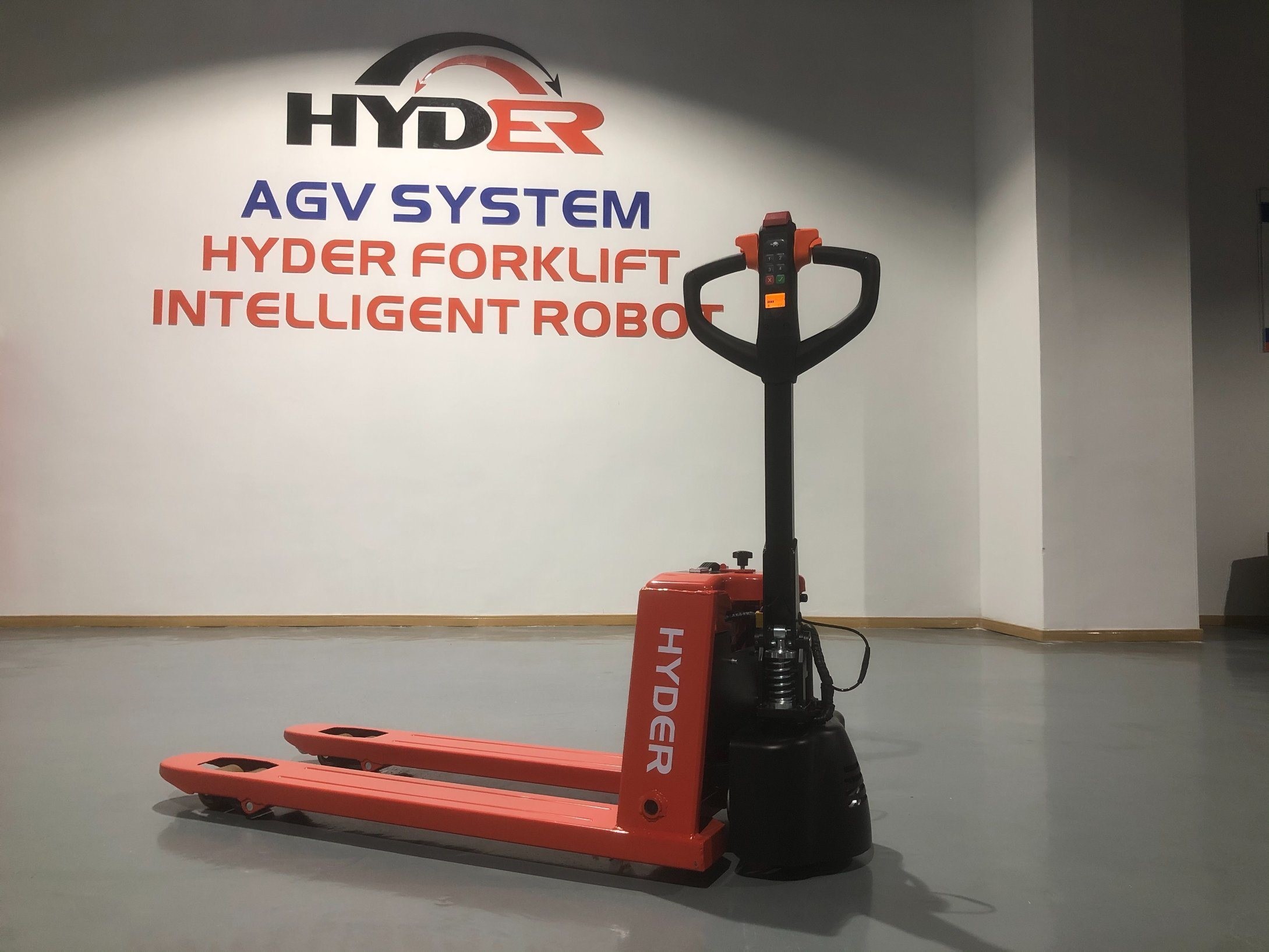

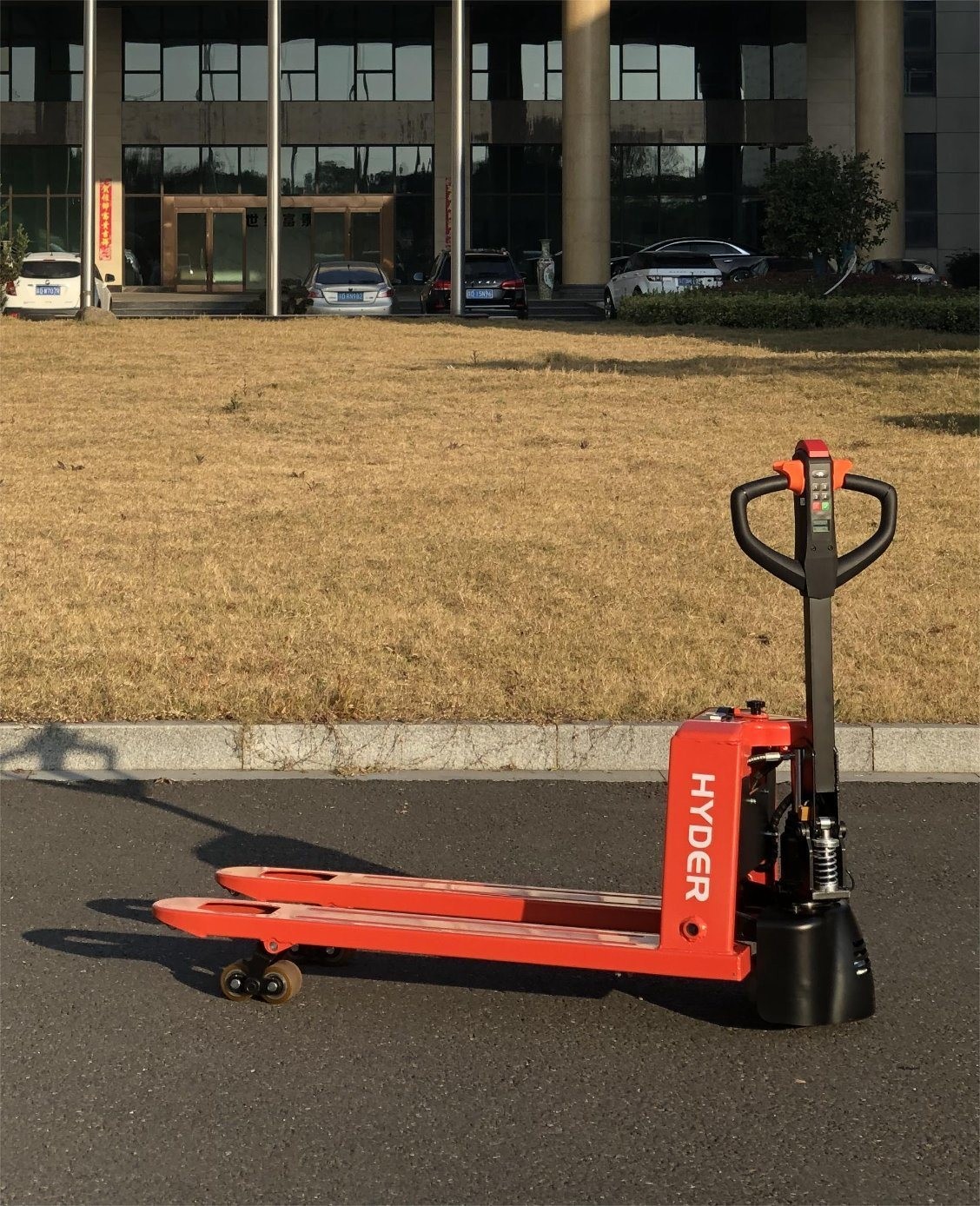

Electric Pallet Jack Truck with Polyurethane Steer and Load Wheels EPT20E Electric Fuel
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | EPT20E | Type | Pallet Jack |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 1.5-2.0t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 85-195mm | Condition | New |
| Name | 2ton Electric Pallet Truck | Drive Motor | DC Motor |
| Battery | 48V/15h | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 1653X685X1130MM | Trademark | HYDER |
| Origin | China | HS Code | 84271000 |
| Supply Ability | 3000 Sets/Year |
Product Description
Battery Pallet Forklift 2 Ton Electric Pallet Equipment 1.5 Ton Pallet Jack
| Manufacturer | HYDER | ||
| Model | EPT20E /EPT15E | ||
| power type | FULL ELECTRIC | ||
| operation | Walkie | ||
| load capacity | Q(kg) | 2000KGS/1500KGS | |
| loading center | C(mm) | 600 | |
| Wheels base | mm | 1220 | |
| service weight(including lithium battery) | kg | 138 | |
| wheel type | Polyurethane(PU) | ||
| driving wheel,number | x w(mm) | ø190*70/1 | |
| front wheel,number | x w(mm) | ø80*70/4 | |
| overall length | l1(mm) | 1540 | |
| Overall width | b(mm) | 560/680 | |
| fork lifting height | h1(mm) | 85-195 | |
| the handle height from ground(max) | h3(mm) | 1200 | |
| Height of body | h4(mm) | 560 | |
| Fork height at lowest point | h(mm) | 85 | |
| Fork dimensions | mm | 560*1150/680*1220 | |
| Ground clearance | mm | 30 | |
| Min. Right-angle stack channel width, (pallet size 1000X1200, 1200 placed along cargo fork | mm | 1500 | |
| Turning radius | R(mm) | 1350 | |
| Driving speed ( with /without load) | km/h | 4.5 | |
| Lifting speed (with /without load) | mm/s | 22/17 | |
| Lowering speed (with /without load) | mm/s | 26/30 | |
| Gradient Max load / unload | % | 6/10 | |
| Brake | Electromagnetic brake | ||
| battery voltage | V/Ah | 48/15 | |
| Battery weight(+/-5%) | kg | 4.5 | |
| Driving motor | kw | 0.8 | |
| lifting motor | kw | 0.6 | |
| Charging time | H | 2.5 | |
Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
