Package Size 2330.00cm * 920.00cm * 2780.00cm Counterbalanced Stacker for Warehouse
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTB15B | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1t 1.2t 1.5t 2t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 3.5m | Condition | New |
| Name | Standing-on Electric Pallet Stacker | Model | Htb08b |
| Drive Motor | AC Motor | Lift Motor | DC Motor |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2600X890X2080MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84271000 | Supply Ability | 3000 Sets/Year |
| Package Size | 2330.00cm * 920.00cm * 2780.00cm | Package Gross Weight | 600.000kg |
Product Description

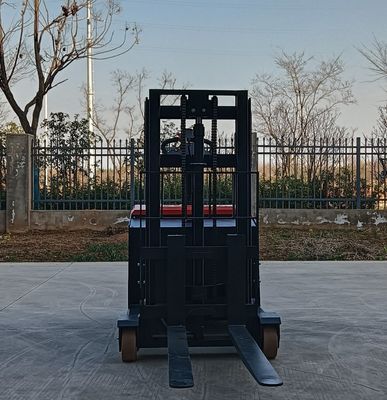

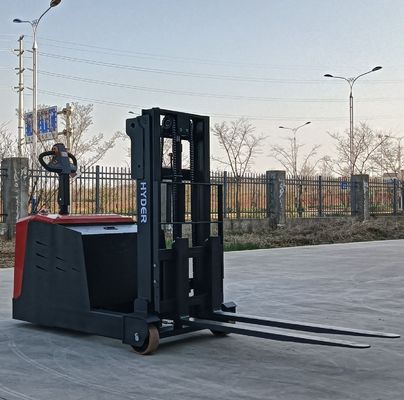

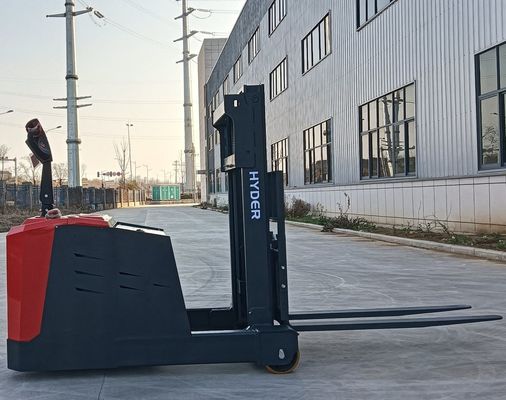

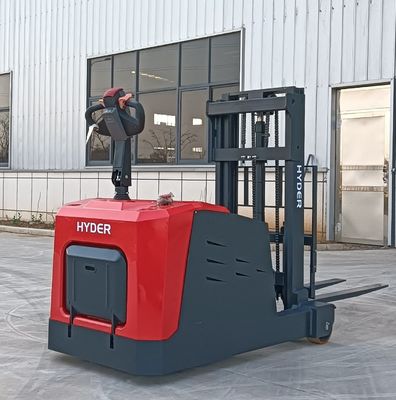

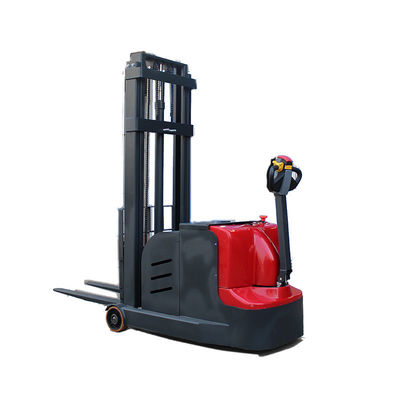

0.8ton- 2ton 3m Counterweight Truck Stand-on Countebalanced Full Electric Pallet Stacker
The counterbalanced stacker is an industrial vehicle used for lifting and moving palletized loads in confined spaces. It has a weight distribution system that includes a counterbalance at the rear to stabilize the vehicle when lifting heavy loads at the front. These stackers come in different configurations and are electrically powered for indoor use. They're prized for their versatility, efficiency, and maneuverability in industrial settings.
| Technical Specs | |||||
| Model | CPD08C | CPD10C | CPD12C | CPD15C | |
| Power source | electric | electric | electric | electric | |
| Drive type | standing-on | standing-on | standing-on | standing-on | |
| Rat load capacity | kg | 800 | 1000 | 1200 | 1500 |
| Load centre | mm | 450 | 450 | 500 | 500 |
| Wheel base | mm | 900 | 950 | 950 | 1000 |
| self weight( Battery) | kg | 950 | 1100 | 1200 | 1560 |
| Tyres | PU | PU | PU | PU | |
| Drive wheel size(Dia.*W) | mm | ∅250×80 | ∅250×80 | ∅250×80 | ∅250×80 |
| Front wheel size(Dia. *W) | mm | ∅200×80 | |||
| No. of Wheels(front/rear)(x=Drive) | 1x+2 | ||||
| Front wheel distance | mm | 840 | |||
| total height( fork lowered) | mm | 2080/1580/1830/2080/2330 | |||
| Total height(fork extended) | mm | 2080/2560/3060/3560/4060 | |||
| Lifting height | mm | 1600/2000/2500/3000/3500 | |||
| Fork lowest height( min) | mm | ≤60 | ≤60 | ≤60 | ≤60 |
| Handle height(max/min) | mm | 1540/1090 | 1540/1090 | 1540/1090 | 1540/1090 |
| Total length(pedal fold) | mm | 2330 | 2330 | 2630 | 2780 |
| Total width | mm | 920 | 920 | 920 | 920 |
| Fork size | mm | 100/35/920 | 100/35/920 | 100/35/1070 | 100/35/1070 |
| fork distance | mm | ||||
| Min Ground clearance | mm | 60 | 60 | 60 | 60 |
| Right angle stacking aisle with b 1000x1200 | mm | 3150 | 3200 | 3250 | 3300 |
| Min turning radius( pedal fold) | mm | 1590 | 1620 | 1650 | 1720 |
| Drive speed( full load/ unload) | km/h | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 |
| Lifting speed( full load) | mm/s | 100 | 100 | 100 | 100 |
| Lifting speed( no load) | mm/s | 50 | 50 | 50 | 50 |
| Max gradeability(full load/ no load) | % | 45419 | 45419 | 45419 | 45419 |
| Brake | Magnectic-electric | Magnectic-electric | Magnectic-electric | Magnectic-electric | |
| Mast | 10C+10H | 10C+10H | 12C+12H | 12C+12H | |
| Drive motor power | kw | AC1.5 | AC1.5 | AC1.5 | AC1.5 |
| Lifting motor | kw | DC2.2 | DC2.2 | DC2.2 | DC2.2 |
| Battery | V/Ah | 24V/120Ah | 24V/150Ah | 24V/150Ah | 24V/180Ah |
More Features:
1. Workable for all kinds of Pallet .
2.High ground clearance , suitable for more working conditions.
1. Workable for all kinds of Pallet .
2.High ground clearance , suitable for more working conditions.
Hyder is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
