Hyder 1000kg 1.0ton Portable Self Loading Pallet Stacker for Supermarket Load center 400
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLS1000 | Type | Stacker |
|---|---|---|---|
| Power | Semi Electric | Load Capacity | 1000kgs |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800mm | Condition | New |
| Product Name | 500kg 800mm 1000mm 1300mm Semi Electric Portable S | Model | Hsls-500 |
| Material Of Wheels | Polyurethane | Battery | 12V / 45ah |
| Drive Motor | Manual | Charger | Included |
| Lifting Height | 800/1000/1300mm | Fork Length | 1250mm |
| Weight | 193kgs | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 1650*786*1180(H)mm | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 3000units/Year |
Product Description

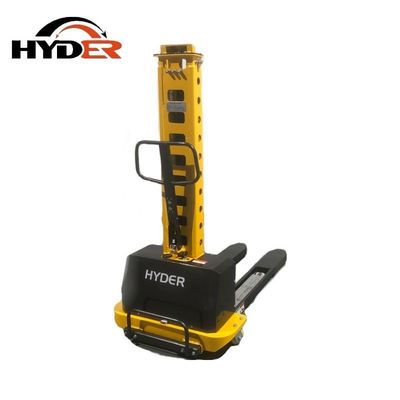

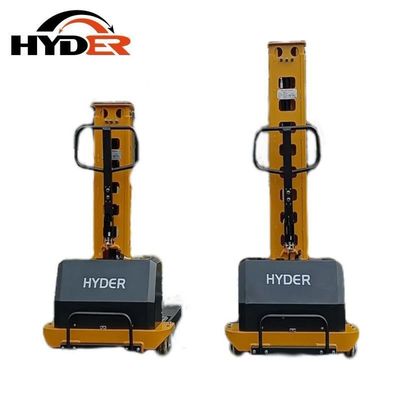

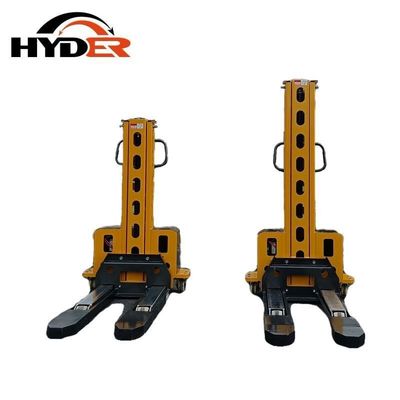

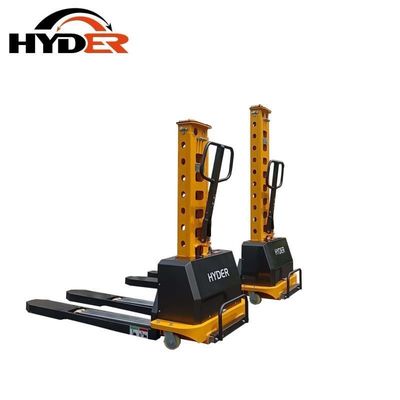

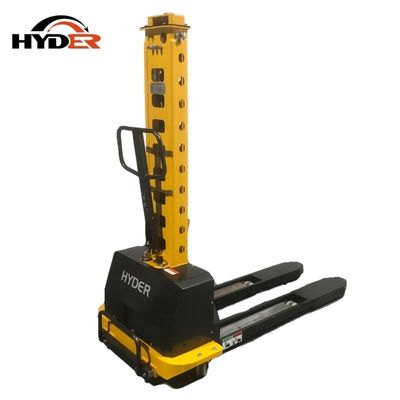

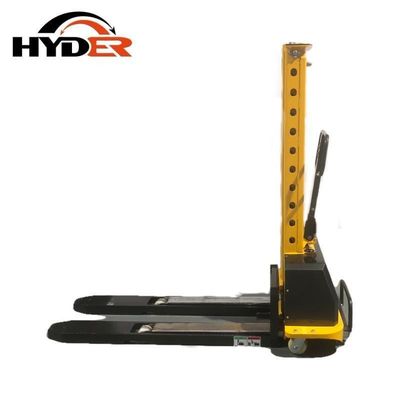

HYDER 1000kg 1.0ton Portable Self Loading Pallet Stacker for Supermarket
Semi-electric stacker is an important equipment widely used in the modern logistics and storage industry. It occupies a place in the industry due to its moderate price and small size. It is mainly used in logistics handling places such as warehouses and workshops. The battery is not used as a power source, driven by a DC motor, and the oil pump is driven to supply pressure, and the walking is driven by manpower. It is suitable for short-distance pallet transportation and stacking operations, and requires flat ground, and is now only allowed to operate inside the warehouse.
| Semi Electric Self Loading Pallet Stacker-HSLS500/HSLS1000 | ||||||
| Features | 1.1 | Model | HSLS500 | HSLS1000 | ||
| 1.2 | Motor | Battery | Battery | |||
| 1.3 | Rated load capacity | Q | kg | 500 | 1000 | |
| 1.4 | Load centre | C | mm | 400 | 400 | |
| 1.5 | Wheel distance | L0 | mm | 815 | 787 | |
| 1.6 | Front wheel distance | W1 | mm | 380 | 398 | |
| 1.7 | Back wheel distance | W2 | mm | 665 | 708 | |
| 1.8 | Operator type | Walkie | Walkie | |||
| Size | 2.1 | Front wheel size | mm | φ70×60 | φ70×60 | |
| 2.2 | Multi direction wheels | mm | φ100×45 | φ100×50 | ||
| 2.3 | Middle wheel size | mm | φ40×25 | Φ65×30 | ||
| 2.4 | Fork length | mm | 1000 | 780 | ||
| 2.5 | Max fork lifting height | H | mm | 800/1000/1300 | 1000/1200/1300 | |
| 2.6 | For outside width | W3 | mm | 540 | 563 | |
| 2.7 | Fork length | L2 | mm | 1150 | 1150 | |
| 2.8 | Fork Thickness | B1 | mm | 60 | 60 | |
| 2.9 | Fork width | B2 | mm | 155 | 193 | |
| 2.1 | Total length | L1 | mm | 1570 | 1544 | |
| 2.11 | Total width | W | mm | 786 | 835 | |
| 2.12 | Total height( Mast closed) | H1 | mm | 1150/1297/1597 | 1366/1566/1666 | |
| 3.1 | Lifting speed | mm/s | 55 | 82 | ||
| 3.2 | Lowering speed | mm/s | 70 | 66 | ||
| 3.3 | Lifting motor | kw | 0.8 | 1.6 | ||
| 3.4 | Battery voltage | V | 12 | 12 | ||
| 3.5 | Battery capacity | Ah | 45 | 45 | ||
| Weight | 4.1 | Battery weight | kg | 13.5 | 13.5 | |
| 4.2 | Truck weight(battery included) | kg | 230/240/255 | 290/300/305 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built. Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
