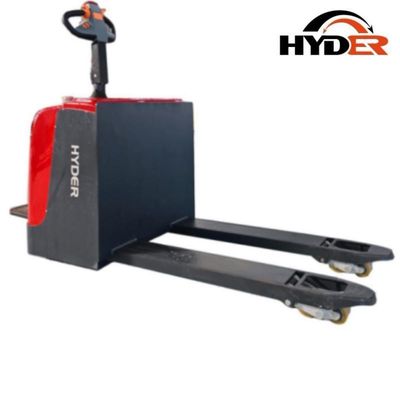

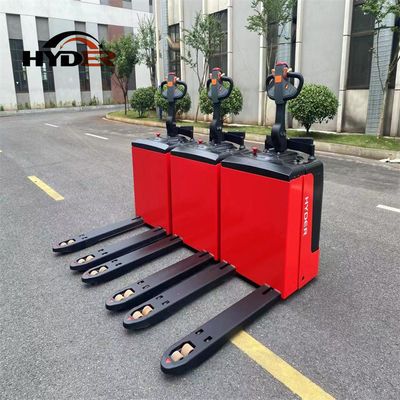

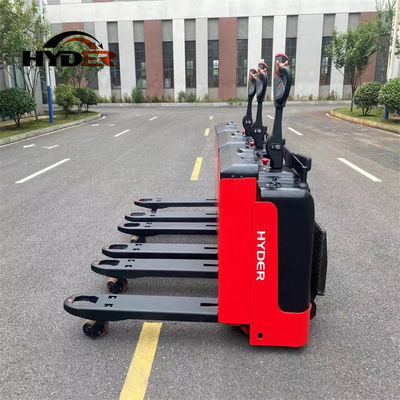

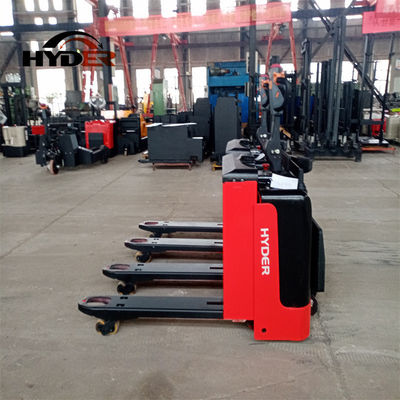

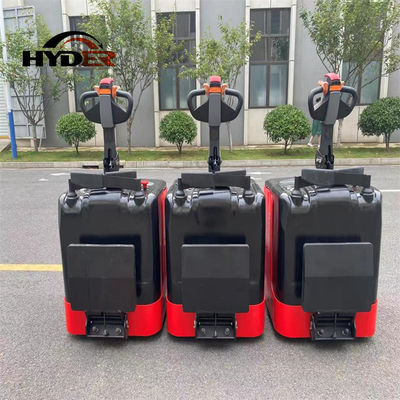

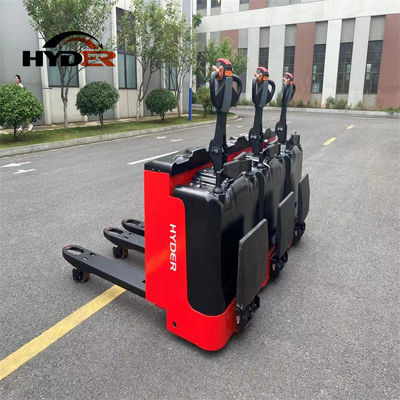

3000kgs Load Capacity Electric Stand on Pallet Truck Forklift for Transport Tasks
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTE30 | Type | Pallet Jack |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 3t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 205mm | Condition | New |
| Name | 3ton Standing On Electric Pallet Truck With EPS | Model | Hte30 |
| Drive Motor | AC Motor | Lift Motor | DC Motor |
| Battery Voltage/Capacity | 24V/280ah | Contorller | American Curtis |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2010X800X1380MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84271090 | Supply Ability | 3000 Sets/Year |
Product Description
3000KGS Electric Stand on Pallet Truck Forklift For Transport Tasks
The electric pallet truck uses the battery as the power source, the motor as the power, and drives the vehicle to walk through the gear transmission. The lifting of the fork depends on the DC motor and hydraulic transmission, and the oil cylinder moves up and down to lift the fork and the goods. Because the walking and lifting of the car are all electric, the driving mode is standing driving, and the steering operation is steering handle steering, so it has labor-saving, high efficiency, stable cargo operation, simple operation, safety and reliability, low noise, pollution etc. The forklift uses a 48-volt large-capacity battery, which greatly prolongs the use time after one charge.
*Energy -saving design
*24V electrical system
* Cost-effective deign with AC Motor
*Optimal visibility through the mast
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
*Maintenance free battery+ motor
*24V electrical system
* Cost-effective deign with AC Motor
*Optimal visibility through the mast
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
*Maintenance free battery+ motor
| ELECTRIC PALLET TRUCK | ||||||
| 1 | Standard | |||||
| 1.1 | manufacturer | HYDER FORKLIFT | HYDER FORKLIFT | |||
| 1.2 | model | HTE30 | HTE25 | |||
| 1.3 | power type | electric | electric | |||
| 1.4 | operation | stand-on | stand-on | |||
| 1.5 | load capacity | (kg) | 3000 | 2500 | ||
| 1.6 | loading center | (mm) | 600 | 600 | ||
| 2 | Tire | |||||
| 2.1 | wheel type | PU wheel | PU wheel | |||
| 2.2 | front wheel | 80*70 | 80*70 | |||
| 2.3 | driving wheel | 230*75 | 230*75 | |||
| 2.4 | balance wheel | 125*50 | 125*50 | |||
| 2.5 | wheel no. front/rear wheel | 1x2/4 | 1x2/4 | |||
| 3 | Dimension | |||||
| 3.1 | the handle height to ground | (mm) | 1435 | 1380 | ||
| 3.2 | fork max lifting height | (mm) | 205 | 205 | ||
| 3.3 | fork clearance height | (mm) | 85 | 85 | ||
| 3.4 | overall length (without pedal) | (mm) | 2010 | 2010 | ||
| 3.5 | wheel base | (mm) | 1450 | 1450 | ||
| 3.6 | tread (front/rear) | (mm) | 385/510 /560 | 385/510 /560 | ||
| 3.7 | fork size | (mm) | 1150*175 | 1150*175 | ||
| 3.8 | overall width | (mm) | 800 | 800 | ||
| 3.9 | fork spread | (mm) | 560/685 | 560/685 | ||
| 3.10 | inner width of forks | (mm) | 210/335 | 210/335 | ||
| 3.11 | pedal width | (mm) | 547 | 547 | ||
| 3.12 | turning radius | (mm) | 1785 | 1785 | ||
| 3.13 | aisle width (800*1200 pallet) | Ast(mm) | 2500 | 2500 | ||
| 3.14 | Aisle width (1000*1200 pallet) | Ast(mm) | 2590 | 2590 | ||
| 4 | Function | |||||
| 4.1 | travel speed loden/unloaden | km/h | 5/5 | 5/5 | ||
| 4.2 | lifting speed loaden / unloaden | mm/s | 30/35 | 30/35 | ||
| 4.3 | lowering speed loaden/unloaden | mm/s | 50/25 | 50/25 | ||
| 4.4 | gradeability loaden/unloaden | % | 8/10 | 8/10 | ||
| 5 | Power | |||||
| 5.1 | driving motor type | AC | AC | |||
| 5.2 | driving motor power | kw | 1.5 | 1.5 | ||
| 5.3 | lifting motor type | DC | DC | |||
| 5.4 | lifting motor power | kw | 2.2 | 1.5 | ||
| 5.5 | battery voltage/capacity | v/Ah | 24/280 | 24/210 | ||
| 5.6 | controller | contorller | American CURTIS | American CURTIS | ||
| 6 | Weight | |||||
| 6.1 | battery weight | kg | 270 | 190 | ||
| 6.2 | total weight (with battery) | kg | 800 | 700 | ||
| 7 | Steering braking | |||||
| 7.1 | steering | with EPS | with EPS | |||
| 7.2 | braking model | Electromagnetic | Electromagnetic | |||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
A5: Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
