Tilt Control 3.0ton Electric Forklift with and Variable Speed Control 2250*1160*2040mm

3000kg Load Capacity  Hyder Efficient and Eco-Friendly Electric Counter Balance Forklifts

Product Description

Counter Balance Electric Forklifts are forklifts that are powered by electric motors instead of internal combustion engines.
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.

Manufacturer	--	--
Model	--	--	FB20	FB25	FB30
Load capacity	--	kg	2000	2500	3000
Load center	--	mm	500	500	500
Power unit	Battery / Diesel / Gasoline	--	Battery	Battery	Battery
Operator type	--	--	Driver / seat	Driver / seat	Driver / seat
Tire type	Front / Rear	--	Solid	Solid	Solid
Wheel (X=driven)	Number      Front / Rear	--	2 X 2	2 X 2	2 X 2
Tire model	front		650-10	650-10	23*10-12
	Rear		500-8	18*7-8	200/50-10
Max. lifting height	--	mm	3000	3000	3000
Free lift	--	mm	160	160	150
Fork size	L*W*T	mm	1220*100*40	1220*125*45	1220*125*45
Tilt range	Mast forward / backward	deg	8 / 8	8 / 8	8 / 8
Overall length(without fork)	--	mm	2250	2320	2570
Total width	--	mm	1160	1160	1280
Mast height (fork lowering)	--	mm	2040	2040	2080
Overall height fork raised	With backrest	mm	4010	4010	4140
Height to head guard	--	mm	2050	2100	2120
Turning raduis(outside)	--	mm	2230	2230	2380
Speed	Max travelling   Full / No load	km/h	9/ 11	10 / 11	12 / 13
	Lifting               Full / No load	mm/s	220/320	220/320	200/320
	Lowering          Full / No load	mm/s	350 / 320	350 / 320	420 /380
Gradeability	Full load	%	18	18	18
service weight	--	kg	2900	3100	4700
Wheelbase	--	mm	1450	1540	1720
Tread	Front / Rear	mm	1050/935	990/950	1050/1010
Ground clearence	At lowest point (mast)	mm	120	120	100
Brake	Service brake	--	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal
	Parking brake	--	Hydraulic	Hydraulic	Hydraulic
Battery	Voltage / Capacity	v-ah/5.5hr	60V/260Ah	60V/260Ah	72V/560Ah
battery weight		kg	350	420	970
Electric motor	Driving motor	kw	5.5	7.5	11
	Hydraulic motor	kw	5	6	12
Control type	Driving		AC motor	AC motor	AC motor
	Lifting	--	AC motor	AC motor	AC motor

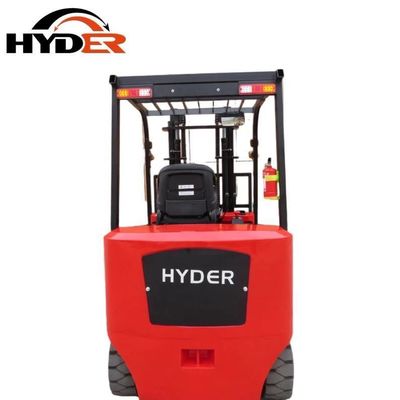

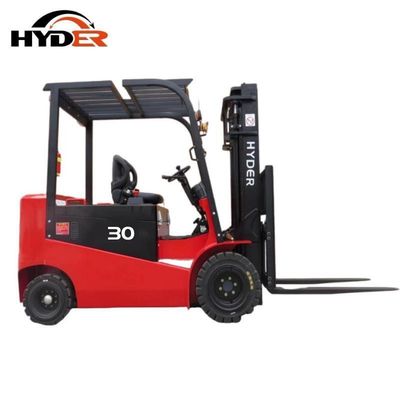

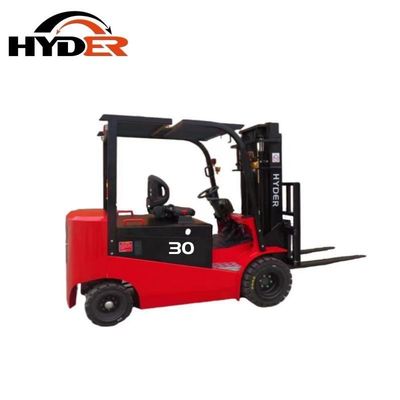

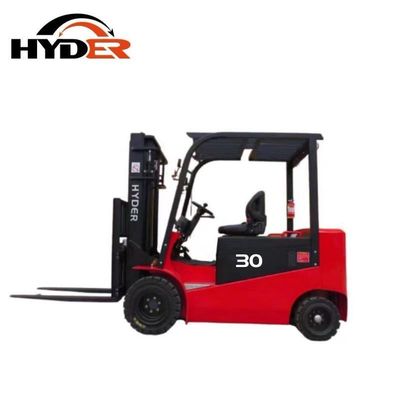

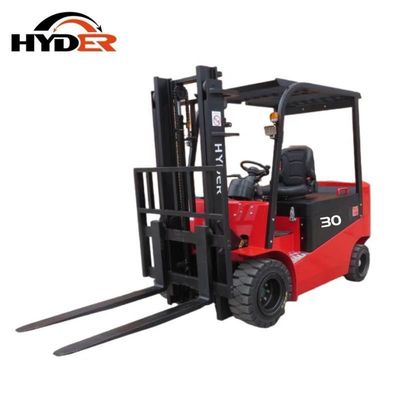

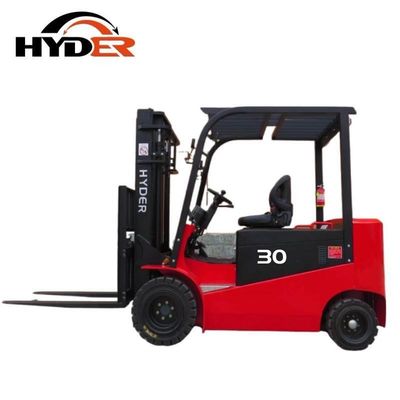

Detailed Photos




Maximizing Efficiency with Counterbalance Electric Forklifts: Tips and Tricks

Are you looking to improve the efficiency of your warehouse operations?
One effective solution is to invest in counterbalance electric forklifts. These eco-friendly and energy-efficient machines offer a range of benefits, from reducing operating costs to improving productivity.

Here are some tips and tricks for maximizing the efficiency of your counterbalance electric forklifts:

1. Choose the right load capacity: It's important to select a forklift with the right load capacity for your business needs. A forklift with a higher load capacity than necessary can result in wasted energy and decreased efficiency.
2. Optimize your warehouse layout: Design your warehouse layout with your forklifts in mind. This includes creating designated areas for loading and unloading, as well as ensuring that there is enough space for your forklifts to maneuver.
3. Train your operators: Proper operator training is crucial for maximizing the efficiency of your forklifts. Ensure that your operators are trained on the specific model of forklift they will be using, and that they know how to operate it safely and efficiently.
4. Regular maintenance: Regular maintenance is essential for keeping your forklifts running smoothly and efficiently. This includes routine inspections, cleaning, and servicing.
5. Use telematics: Telematics technology can help you monitor and optimize the performance of your forklift fleet. This includes tracking usage, identifying areas for improvement, and scheduling maintenance.
By following these tips and tricks, you can maximize the efficiency of your counterbalance electric forklifts and improve your warehouse operations. Contact a reputable forklift dealer today to learn more about the benefits of these machines and how they can help your business.



Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
