2ton Electric Forklift with Optional Load Capacity of 0.75t/1.0t/1.5t/2.0t/2.5t/3.0t

Environmentally Friendly Electric Counterbalance Forklift 0.75T Forklift Truck

Product Description

Counter Balance Electric Forklifts are forklifts that are powered by electric motors instead of internal combustion engines.
They are becoming increasingly popular due to their eco-friendliness, lower operating costs, and quieter operation compared to traditional forklifts. Electric forklifts are commonly used in indoor environments such as warehouses, manufacturing plants, and retail stores.

Specification
1	Manufacturer	--	--	HYDER
2	Model	--	--	FB7.5	FB10	FB15
3	Load capacity	--	kg	750	1000	1500
4	Load center	--	mm	500	500	500
5	Power unit	Battery / Diesel / Gasoline	--	Battery	Battery	Battery
6	Operator type	--	--	Driver / seat	Driver / seat	Driver / seat
7	Tire type	Front / Rear	--	Solid	Solid	Solid
8	Wheel (X=driven)	Number      Front / Rear	--	2 X 2	2 X 2	2 X 2
9	Tire model	front		15 X4.5-8	16 X6-8	650-10
10		Rear		3.20-8	15 X4.5-8	500-8
11	Max. lifting height	--	mm	2500	3000	3000
12	Free lift	--	mm	110	120	160
13	Fork size	L*W*T	mm	920*100*30	1070*100*30	1220*100*35
14	Tilt range	Mast forward / backward	deg	8 / 8	8 / 8	8 / 8
15	Overall length(without fork)	--	mm	1530	1800	2200
16	Total width	--	mm	880	1040	1150
17	Mast height (fork lowering)	--	mm	1900	1970	2040
18	Overall height fork raised	With backrest	mm	3650	4010	4010
19	Height to head guard	--	mm	1870	2000	2050
20	Turning raduis(outside)	--	mm	1550	1850	2180
21	Speed	Max travelling   Full / No load	km/h	10 / 12	10 / 12	10 / 11
22		Lifting               Full / No load	mm/s	150/220	150/220	220/320
23		Lowering          Full / No load	mm/s	350 / 320	350 / 320	350 / 320
24	Gradeability	Full load	%	15	15	18
25	service weight	--	kg	1600	1900	2500
26	Wheelbase	--	mm	950	1200	1350
27	Tread	Front / Rear	mm	900/900	1020/1040	1050/935
28	Ground clearence	At lowest point (mast)	mm	80	90	120
29	Brake	Service brake	--	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal
30		Parking brake	--	Hydraulic	Hydraulic	Hydraulic
31	Battery	Voltage / Capacity	v-ah/5.5hr	48V/150Ah	60V/150Ah	60V/230Ah
32	battery weight		kg	160	200	350
33	Electric motor	Driving motor	kw	3	3	5.5
34		Hydraulic motor	kw	2.5	2.5	5
35	Control type	Driving		AC motor	AC motor	AC motor
36		Lifting	--	DC motor	DC motor	AC motor

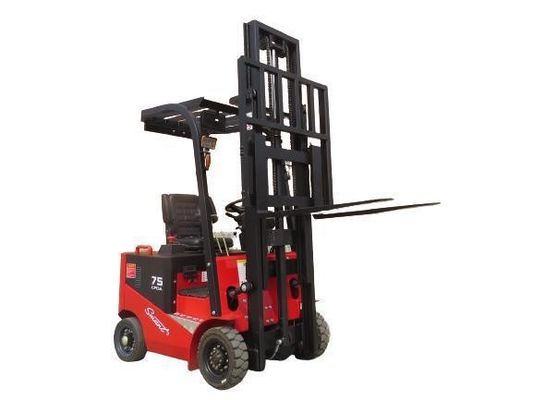

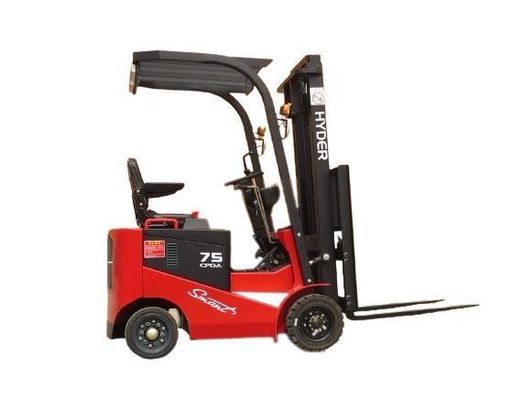

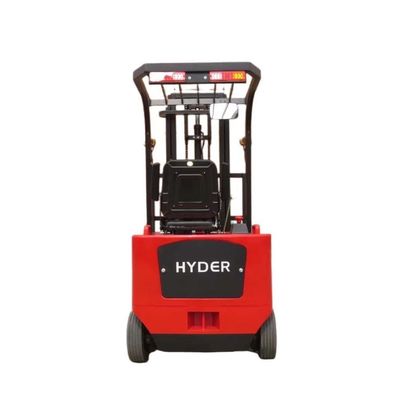

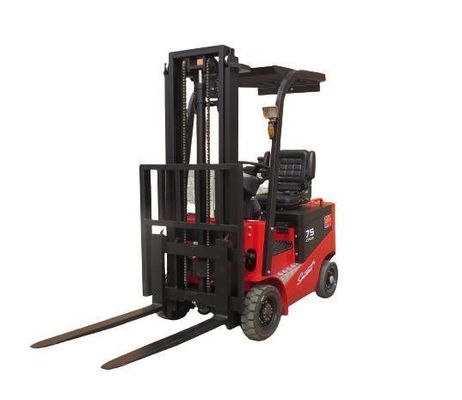

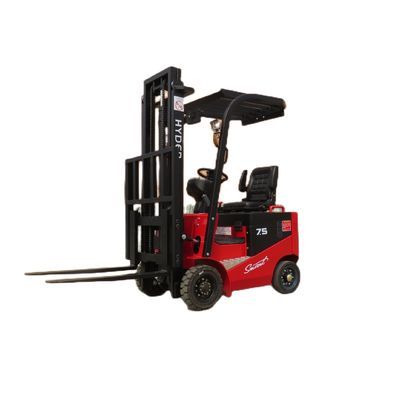

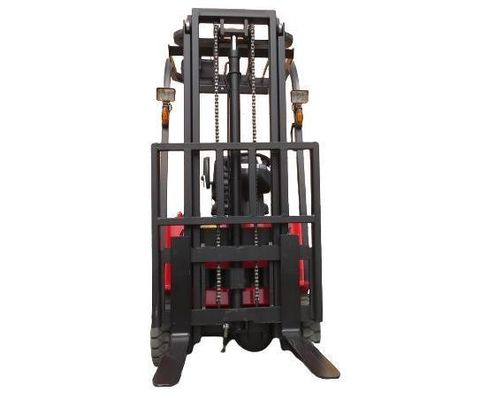

Detailed Photos











Maximizing Efficiency with Counterbalance Electric Forklifts: Tips and Tricks
Are you looking to improve the efficiency of your warehouse operations?
One effective solution is to invest in counterbalance electric forklifts. These eco-friendly and energy-efficient machines offer a range of benefits, from reducing operating costs to improving productivity.
Here are some tips and tricks for maximizing the efficiency of your counterbalance electric forklifts:
1. Choose the right load capacity: It's important to select a forklift with the right load capacity for your business needs. A forklift with a higher load capacity than necessary can result in wasted energy and decreased efficiency.
2. Optimize your warehouse layout: Design your warehouse layout with your forklifts in mind. This includes creating designated areas for loading and unloading, as well as ensuring that there is enough space for your forklifts to maneuver.
3. Train your operators: Proper operator training is crucial for maximizing the efficiency of your forklifts. Ensure that your operators are trained on the specific model of forklift they will be using, and that they know how to operate it safely and efficiently.
4. Regular maintenance: Regular maintenance is essential for keeping your forklifts running smoothly and efficiently. This includes routine inspections, cleaning, and servicing.
5. Use telematics: Telematics technology can help you monitor and optimize the performance of your forklift fleet. This includes tracking usage, identifying areas for improvement, and scheduling maintenance.
By following these tips and tricks, you can maximize the efficiency of your counterbalance electric forklifts and improve your warehouse operations. Contact a reputable forklift dealer today to learn more about the benefits of these machines and how they can help your business.




Hyder Forklift is an integrated company of manufacturing, developing and sale all kinds of forklifts and warehouse equipment in China.
Hyder, founded in 2010 in Shanghai and the predecessor is ShanghaiChallengeImported and Exported Co., Ltd in 2003.
The leading products are HYDER Branded series forklift trucks. Shanghai Hyder have invested three manufacturing bases in Anhui and Shandong Province, covering internal combustion counterbalanced forklift trucks, battery powered forklifts, material handling equipments and the related spare parts.
The head office of HYDER Industry in Pudong district,Shanghai city, possessing 23 international market employees,12 logistic support personnel and 12 purchasing staff and technicians. HYDER has built long and stable cooperation with many well-known domestic enterprises and our products have passed the CE,TUV,GS and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 30 countries where the sales network has built. Customer is first, Quality is our life.
