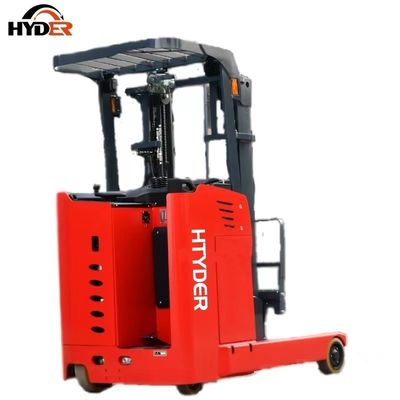

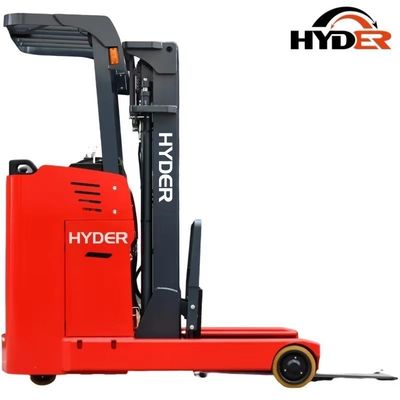

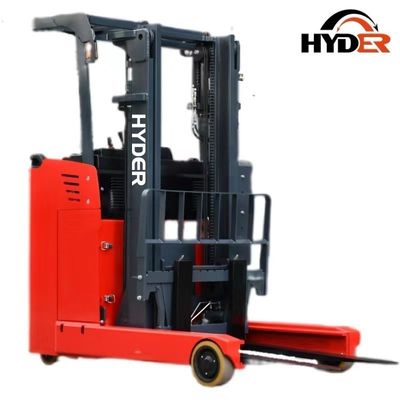

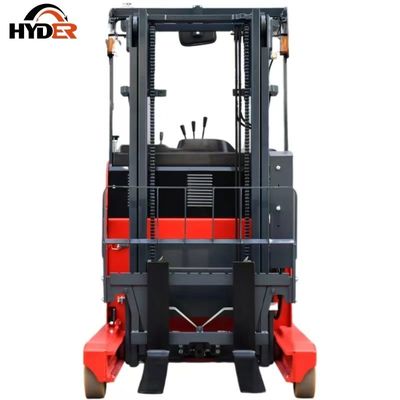

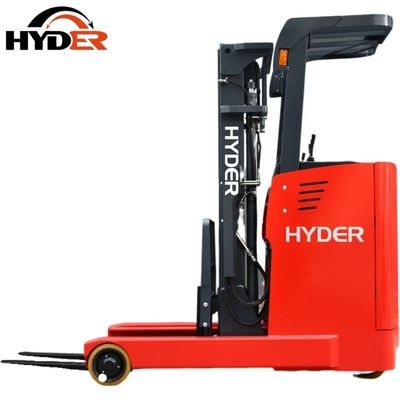

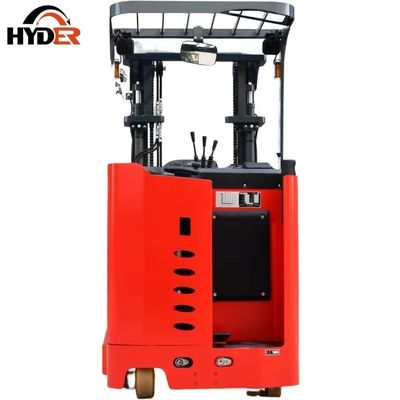

3tonne Electric Reach Forklift with DC Motor and 3000-5000mm Lift Height by Hyder
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTF30 | Type | Reach Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1T - 5T |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | 3000~5000mm | Condition | New |
| Name | 3ton Capacity Electric Reach Forklift | Model | Htf30 |
| Lifting Height | 4500 | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Weight | 3680kgs |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2284X1098X2085MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84271090 | Supply Ability | 3000 Sets/Year |
| Package Size | 220.00cm * 225.00cm * 130.00cm | Package Gross Weight | 3400.000kg |
| Lead Time | 2 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) |
Product Description
HYDER Brand Standing on Type 3tonne Electric Reach Forklift with AC Motor
Reach Forklift rely on the mast or fork frame to move back and forth to maintain balance. The mast or the fork frame of the reach-type forklift can move forward and backward. The mast-type forklift refers to that the mast drives the fork to move forward during operation, and stretches out of the front wheel to pick up or put down the goods. The fork belt cargo is retracted so that the center of gravity of the cargo is within the support surface. The forward-moving forklift refers to that the shelf drives the fork to move forward outside the front wheels for operation, and the fork frame drives the fork to retract into the support plane when walking.
1.Better passing performance through small aisle,to improve the warehouse' capacity greatly
2.AC bruchless drive motor to reduce the maintenance time and cost.AC drive motor with high effciency,better service life and energy saving,to make the forklift with long-time running based on normal output
3.Disc brake and EPS steering system coordinated with high operating efficiency,to makes the forklift with better performance during heavy working condition
4.Three braking system.They can provide the necessary protection to machine or operator whatever the forklift is
running or not.
5. Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom,and make the goods less damaged and operator feel more comfortable.
6.Ergonomic design for the small steering wheel coordinating with the panel can provide a comfortable,safe and high efficiency
environment for operators.
2.AC bruchless drive motor to reduce the maintenance time and cost.AC drive motor with high effciency,better service life and energy saving,to make the forklift with long-time running based on normal output
3.Disc brake and EPS steering system coordinated with high operating efficiency,to makes the forklift with better performance during heavy working condition
4.Three braking system.They can provide the necessary protection to machine or operator whatever the forklift is
running or not.
5. Buffering technology can reduce the vibration when the mast lifts up to the top or down to the bottom,and make the goods less damaged and operator feel more comfortable.
6.Ergonomic design for the small steering wheel coordinating with the panel can provide a comfortable,safe and high efficiency
environment for operators.
| Standard | ||||
| 1.1 | Brand | HYDER | HYDER | |
| 1.2 | Model | HTF30(Duplex mast) | HTF30(Triplex full free mast) | |
| 1.3 | Power type | Battery | Battery | |
| 1.4 | Operation type | Stand on | Stand on | |
| 1.5 | Rated capacity | Q(kg) | 3000 | 3000 |
| 1.6 | Load center | C(mm) | 500 | 500 |
| 1.7 | Front overhang | x(mm) | 180 | 180 |
| 1.8 | Wheelbase | y(mm) | 1920 | 1920 |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 3400 | 3680 |
| Wheel | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Front wheel | mm | Φ267×135 | Φ267×135 |
| 3.3 | Drive wheel | mm | Φ380×165 | Φ380×165 |
| 3.4 | Auxiliary wheel | mm | Φ204×76 | Φ204×76 |
| 3.5 | Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 725 | 725 |
| 3.7 | Wheel tread,load side | b11(mm) | 1135 | 1135 |
| Size | ||||
| 4.1 | Fork tilt | α/β(°) | 3/5 | 2/6 |
| 4.2 | Mast closed height | h1(mm) | 2082 | 2292 |
| 4.3 | Free Lift height | h2(mm) | 80 | 1550 |
| 4.4 | Lift height | h3(mm) | 3000 | 4500 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 4050 | 5550 |
| 4.6 | Overhead guard height | h6(mm) | 2300 | 2300 |
| 4.7 | Pedal height | h7(mm) | 350 | 350 |
| 4.8 | Overall length | l1(mm) | 2487 | 2534 |
| 4.9 | Overall width | b1/b2(mm) | 1190/1270 | 1190/1270 |
| 4.10 | Fork size | l/e/s(mm) | 1070/125/45 | 1070/125/45 |
| 4.11 | Fork carriage width | b3(mm) | 1148 | 1148 |
| 4.12 | Fork outside width | b5(mm) | 250-750 | 250-750 |
| 4.13 | Inner leg width | b4(mm) | 892 | 892 |
| 4.14 | Reach stroke | l4(mm) | 925 | 875 |
| 4.15 | Mast ground clearance | m1(mm) | 82 | 82 |
| 4.16 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 3045 | 3066 |
| 4.17 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 3000 | 3037 |
| 4.18 | Turning radius | Wa(mm) | 2192 | 2192 |
| Function | ||||
| 5.1 | Driving speed(load/unload) | km/h | 8/10 | 8/10 |
| 5.2 | Lifting speed(load/unload) | mm/s | 220/320 | 200/300 |
| 5.3 | Lowering speed(load/unload) | mm/s | 340/290 | 310/260 |
| 5.4 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 5.5 | Brake type | Mechanical | Mechanical | |
| Drive | ||||
| 6.1 | Driving Motor(S2-60min) | kw | 5.5 | 5.5 |
| 6.2 | Lifting Motor(S3-15%) | kw | 8.6 | 8.6 |
| 6.3 | Battery voltage/capacity | V/Ah | 48/400 | 48/400 |
| 6.4 | Battery weight | kg | 650 | 650 |
| 6.5 | Steering system | EPS | EPS | |
| Other | ||||
| 7.1 | Battery replacement type | Side pull | Side pull | |
HYDER mainly engaged in global warehousing and logistics business, and has 17+ years experiences forklift.Hyder products are Pallet truck series, Stacker series and Electric forklift series. All of them have passed the CE, BV, ISO and third-party detection institution test and certificate.
Hyder professional markting anlysis, sales, QC Systems and after-sales service teams online 24*7, whom providing high effecieny reply and solve customers proble, every forklift will be delivered after qualifying testing, so Hyder offers qualified products for the customers in more than 40 countries where the sales network has built, and get well-known repuation from Hyder servered customers.
Shaanxi hyder Intelligent Machinery Co., Ltd. based on responsible and diligent attitude towards each customer, which mission is becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage. etc.
