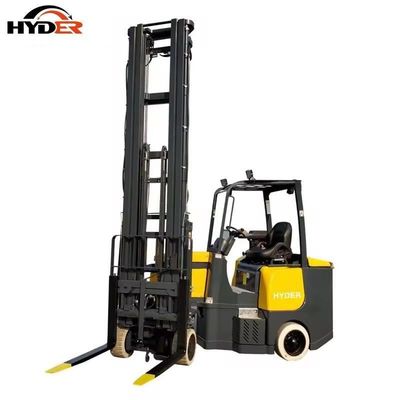

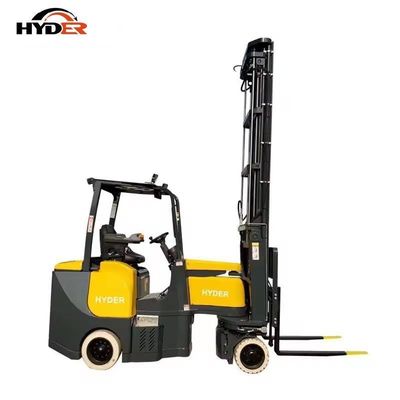

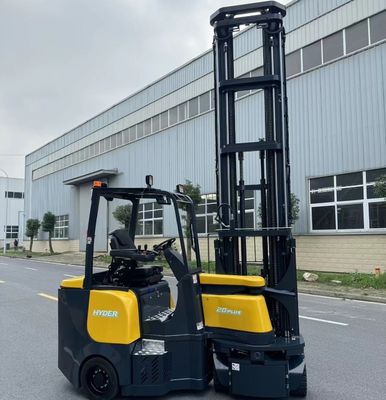

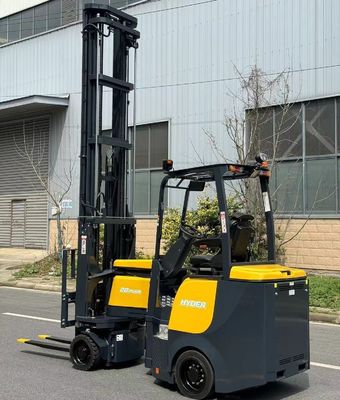

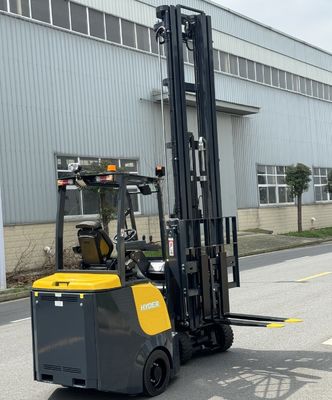

AC Motor Drive Motor Electric Articulated Forklift 2.0ton 7m Max to 14m Lifting Height

High quality Warehouse 2ton Max To 14m Articulated Narrow Aisle Electric Forklift







Product Parameters

Specification
1	Manufacturer	--	HYDER
2	Model		NA20
3	Capacity	kg	2000
4	Light height	mm	6000/7000/8000/9000/10000/14000
5	Free lift	mm	1965
6	Mast closed height	mm	2865
7	Extended height	mm	7261
8	Overall length	mm	2780
9	Ground clearance	mm	50
10	Overhead guard height	mm	2270
11	Chassis width rear	mm	1220
12	Chassis width front	mm	980
13	Load center	mm	600
14	Wheel base	mm	1735
15	Seat height	mm	1220
16	Mast tilt(back/fwd)	degree	3/1
17	Rotate angle (left/right)	degree	220
18	Ground speed	Km/h	16
19	Lift speed(load/unload)	m/s	0.44/0.5
20	Front tyre size	mm	412*174
21	Rear tyre size	mm	457*150
22	Grade ability(load/unload)	%	18/20
23	Battery voltage/Capacity	V/Ah	80V/500AH
24	Weight including battery	kg	7400
25	Weight excluding battery		5800
26	Traction motor	AC	19.5kw
27	Lifting motor	AC	15kw
28	Aisle width	mm	1960
29	Transfer aisle	mm	2700

Articulated Forklift 2000KG Electric Narrow Aisle Articulated Forklift Trucks



The Articulated Forklift double deep narrow aisle forklift provides the lowest cost of ownership while maximizing space and productivity to benefit every users.


Articulated Forklift VNA articulated forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step. Comparing to reach trucks, Articulated Forklift VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions. So the Articulated Forklift VNA articulated forklifts can save users much time, space and money.



Full Articulated Forklift articulated forklifts ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.



Our Advantages

Less Cost  Narrower Aisle  Higher Productivity Lift Up To 7000mm Smart Fingertip Armrest 80V Full AC Control System Aisle Width As Narrow As 1800mm

The full range of the articulating narrow aisle forklift trucks:
Capacity 1500KG, lift height 4300mm -7050mm
Capacity 2000KG, lift height 4300mm-10050mm
Capacity 2500KG, lift height 4300mm-12400mm
Capacity 3000KG, lift height 4300mm-12400mm

Why Choose Us

WHY CHOOSE Articulated Forklift ARTICULATED FORKLIFT?
The features of Articulated Forklift VNA truck

1. Lift height up to 12m, aisle width as narrow as 1.8m.
2. It creates 50% more pallet positions than counterbalance forklifts and 30% more positions than reach trucks.
3. 220°articulated angle, flexible working in the ultra-narrow channel.

4. Standard equipped with 80V AC ZAPI controller and 80V AC lifting&driving motor. It creats lower heating, lower failure rate. And it has stronger power, higher efficiency and maintenance free.

5. Standard equipped with Electro-hydraulic proportional valve, valve speed can be adjusted according to drivers' will, making it easier and more accurate to pick up/unload pallets in narrow aisles.
6. Standard equipped with fingertip armrest control, it provides better control experience, more flexible and accurate operation. It also has inch move mode. With better inching performance, it makes our articulated trucks very suitable for high lifting working environment.
7. The firm construction of chassis and mast ensure heavy-duty use.
8. It can work on any floor surface, both inside and outside, eliminates double handling, move pallet from lorry to rack just in one step, so it save much time and money.
9. The maintenance cost is significantly less than complicated reach trucks/swing reach truck.



The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
