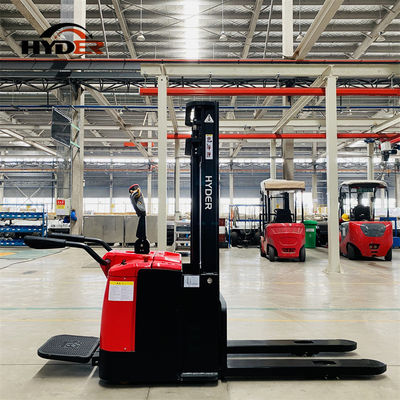

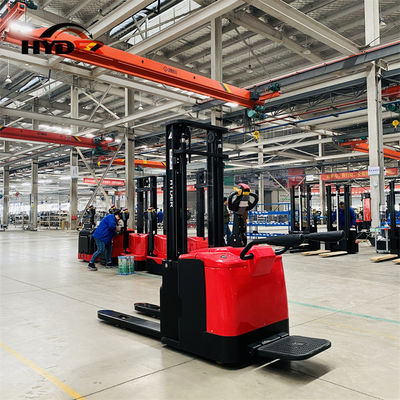

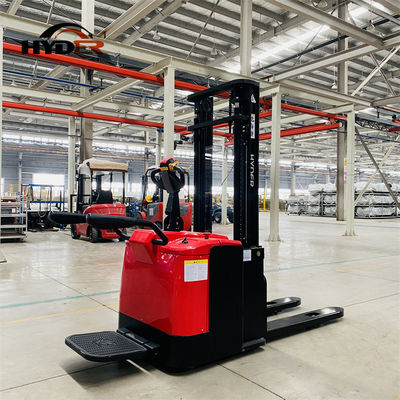

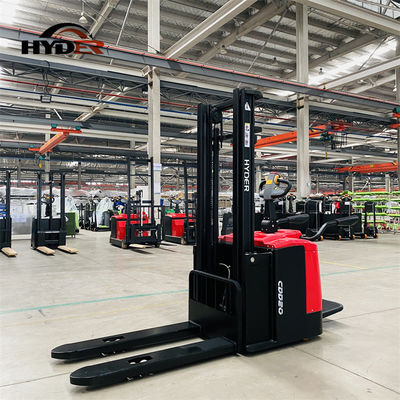

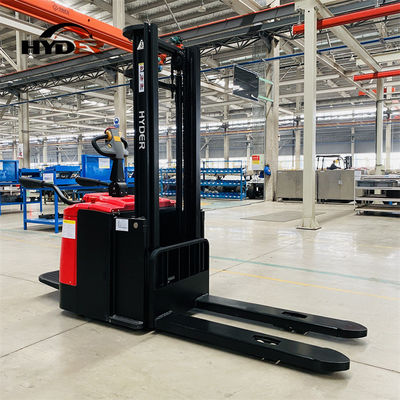

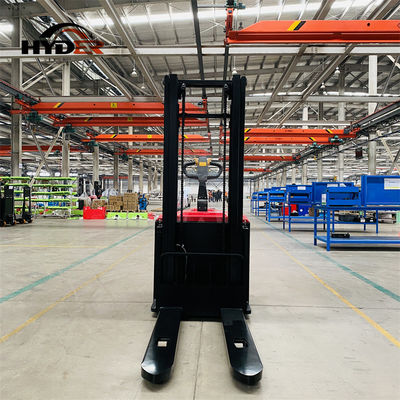

Hyder Full Electric Stacker with 3.5m Lift Height and Loading Capacity of 1500kgs
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTB15 | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1.5t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | 3.5m | Condition | New |
| Name | 1.5ton Standing-on Electric Stacker | Model | Htb15 |
| Lifting Height | 3000mm--5500mm | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2110X850X2070MM | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 3000 Sets/Year |
Product Description
Hyder Full Electric Standing on Stacker 1500kgs as Loading Capacity
The electric stacker is a kind of industrial storage equipment powered by a motor and powered by a battery. Its main function is to carry out operations such as stacking, unloading, and handling with pallets. It is an industrial vehicle required by modern factories, workshops, and warehouses. Electric stackers are widely used in factories, workshops, warehouses, distribution centers and distribution centers, ports, docks, stations, airports and other places that require logistics, and can enter containers and warehouses for operation.
| STANDING ON ELECTRIC PALLET STACKER TRUCK | ||||
| 1 | Manufacturer | HYDER | ||
| 1.1 | Model | HTB15 | HTB20 | |
| 1.2 | Name | Full electric stacker | ||
| 1. 3 | Power unit | Battery | ||
| 1. 4 | Operation | Standing-on | ||
| 1.5 | Load capality | (kg) | 1500 | 2000 |
| 1.6 | Load center | (mm) | 500 | 500 |
| 2.1 | Tire type | front/rear | polyurethane | polyurethane |
| 2.2 | Driving wheel | (mm) | Φ230X83 | Φ230X83 |
| 2.3 | Bearing wheel | (mm) | Φ80X80 | Φ80X80 |
| 2.4 | balanced wheel | (mm) | Φ150X50 | Φ150X50 |
| 2.5 | Tire no. | pcs | 1/2/4 | 1/2/4 |
| 3.1 | Mast type | duplex | duplex | |
| 3.2 | Lifting height | (mm) | 3000 | 3000 |
| 3.3 | Free lift height | (mm) | / | / |
| 3.4 | Fork lowered height | (mm) | 2070 | 2070 |
| 3.5 | Fork extend hight | (mm) | 3550 | 3550 |
| 3.6 | Fork clearence height | (mm) | 85 | 85 |
| 3.7 | Overall Length (without pedal) | (mm) | 2110 | 2110 |
| 3.8 | Fram clearence height | (mm) | 30 | 30 |
| 3.9 | Wheelbase | (mm) | 1385 | 1385 |
| 3.1 | Width | (mm) | 850/1040 | 850/1040 |
| 3.11 | Tread front/rear | (mm) | 500 /(690/890) | 500 /(690/890) |
| 3.12 | Fork size | (mm) | 1150/190/75 | 1150/190/75 |
| 3.13 | Fork width(outside) | (mm) | 690 | 690 |
| 3.14 | Aisle widthwithout pedal(1000*1200pallet) | (mm) | 2552 | 2552 |
| 3.15 | Aisle widthwithout pedal(800*1200pallet) | (mm) | 2582 | 2582 |
| 3.16 | Turning radius pedal(withou pedal) | (mm) | 1690 | 1690 |
| 4.1 | Travelling speed(full load/unload) | km/h | 5/5 | 5/5 |
| 4.2 | Lifting speed(full load/unload) | mm/s | 90/120 | 90/120 |
| 4.3 | lowering speed(full load/unload) | mm/s | 100/100 | 100/100 |
| 4.4 | Gradeability(S25) | % | 8/10 | 8/10 |
| 5 | Power | |||
| 5.1 | Driving moter type | AC | AC | |
| 5.2 | Power unit | kw | 1.5 | 1.5 |
| 5.3 | Lifting motor type | DC | DC | |
| 5.4 | Lifting motor power(S3 15%) | kw | 3 | 3 |
| 5.5 | Battery voltage/capacity | V/Ah | 24/210 | 24/210 |
| 6 | Weight | |||
| 6.1 | Battery weight | kg | 190 | 190 |
| 6.2 | Service weight | kg | 1220 | 1220 |
| 7 | Steering and Braking | |||
| 7.1 | Steering type | with EPS | with EPS | |
| 7.4 | Service parking operation | Electromagnetic | ||
Hyder Work Shop Production Lines
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
