Heavy Duty Double-Deep Reach Truck Advanced AC Control System for Your Requirements
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTF15 | Type | Reach Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1.5t-3.0t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | >5000mm | Condition | New |
| Name | 1.5t-3.0t Stand On Electric Reach Truck | Model | Htf15 |
| Lifting Height | 3000mm-8000mm | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Weight | 2450kgs |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2496*1390*2200 |
| Trademark | HYDER | Origin | China |
| HS Code | 84271090 | Supply Ability | 3000 Sets/Year |
| Package Size | 265.00cm * 160.00cm * 240.00cm | Package Gross Weight | 3450.000kg |
| Lead Time | 1 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) | Customization | Available |
| After-sales Service | 100% In Warranty | Warranty | 1 Year |
| Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. | Support Payment In USD | |
| Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description

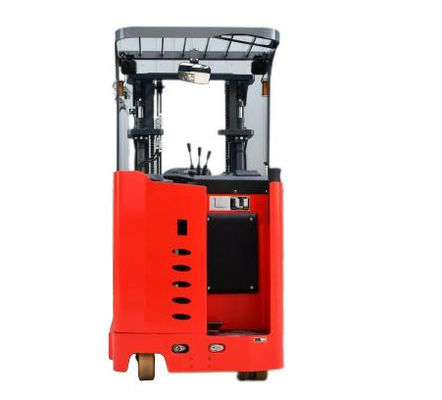

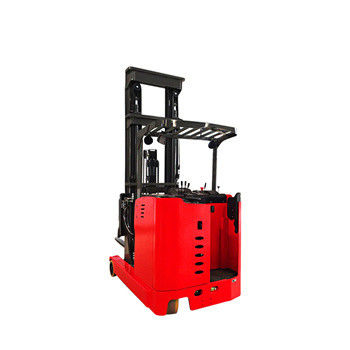

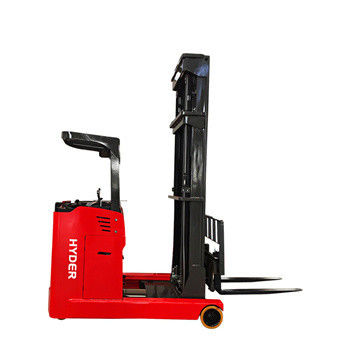

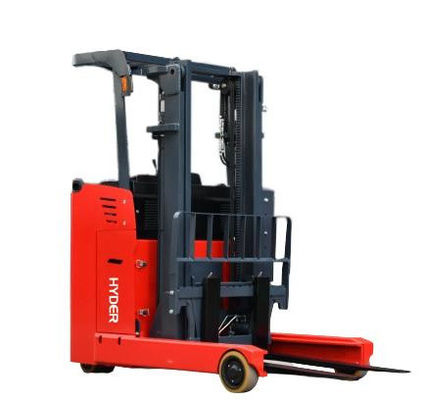

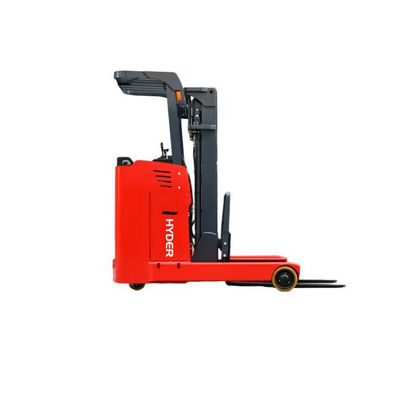

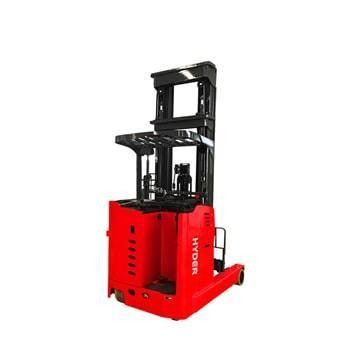

Full Electric Reach Truck 1.5ton Narrow Aisle Forklift Stand-on truck
Reach Forklift rely on the mast or fork frame to move back and forth to maintain balance.
The mast or the fork frame of the reach-type forklift can move forward and backward. The mast-type forklift refers to that the mast drives the fork to move forward during operation, and stretches out of the front wheel to pick up or put down the goods. The fork belt cargo is retracted so that the center of gravity of the cargo is within the support surface.
The forward-moving forklift refers to that the shelf drives the fork to move forward outside the front wheels for operation, and the fork frame drives the fork to retract into the support plane when walking.
The Benefits of Using a Reach Truck in Your Warehouse
A reach truck is a versatile and efficient machine that can help improve your warehouse operations. Here are some of the key benefits of using a reach truck:
-
Increased Productivity: Reach trucks are designed to move pallets quickly and efficiently, which can help increase your warehouse productivity.
-
Improved Safety: Reach trucks are equipped with safety features such as stability control and anti-tip technology, which help prevent accidents and injuries.
-
Versatility: Reach trucks can be used for a variety of tasks, from loading and unloading trucks to moving pallets around your warehouse. They can also be used in narrow aisles, making them ideal for warehouses with limited space.
-
Cost-Effective: Investing in a reach truck can be a cost-effective solution for your warehouse. With their ability to move pallets quickly and efficiently, you can save time and money on labor costs.
-
Increased Storage Capacity: Reach trucks can help you maximize your storage space by allowing you to stack pallets higher than traditional forklifts. This means you can store more products in the same amount of space, which can help increase your profitability.
In conclusion, a reach truck is a valuable tool for any warehouse looking to improve its efficiency and productivity. With their versatility, safety features, and cost-effectiveness, they can help you move products quickly and efficiently while also maximizing your storage space.
| Manufacturer | - | HYDER | |
| Operation type | - | Standing posture | |
| Model | - | HTF15-50 | |
| Power type | - | Full-Electric | |
| Capacity | kg | 1500 | |
| Max lifting height | mm | 5000 | |
| Load center | mm | 500 | |
| Wheel type | - | Pu solid tire | |
| Fork dimensions | mm | 1070X100X35 | |
| Fork spread | - | 222-650 | |
| Overall length including fork | mm | 2580 | |
| Overall width | mm | 1090 | |
| Height--mast Lowered | mm | 2309 | |
| Turning radius | Wa(mm) | 1594 | |
| The height of overhead guards | mm | 2240 | |
| Min ground clearance | mm | 80 | |
| Max travel speed | km/h | 7 | |
| Lifting speed | mm/s | 200 | |
| Total weight | kg | 2450 | |
| Driving wheel | mm | Ø343*108 | |
| front wheel | mm | Ø254*104 | |
| Battery capacity | V/Ah | 48/300 | |
| Charger-intelligent | V/A | 48/40 | |
| Driving motor | kw | 4.5(AC) | |
| Lifting motor | kw | 7.5(DC) | |
| Transmission controller type | - | Electric | |
| Walking adjustable type | - | Holzer type accelerator | |
| Braking type | - | Electromagnetic | |
Double Deep Reach Truck :
HYDER mainly engaged in global warehousing and logistics business, and has 17+ years experiences forklift.Hyder products are Pallet truck series, Stacker series and Electric forklift series. All of them have passed the CE, BV, ISO and third-party detection institution test and certificate. Hyder professional markting anlysis, sales, QC Systems and after-sales service teams online 24*7, whom providing high effecieny reply and solve customers proble, every forklift will be delivered after qualifying testing, so Hyder offers qualified products for the customers in more than 40 countries where the sales network has built, and get well-known repuation from Hyder servered customers.
Shaanxi hyder Intelligent Machinery Co., Ltd. based on responsible and diligent attitude towards each customer, which mission is becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage. etc.
