Electric Pallet Stacker with 2000kg Load Capacity and 5.5m Lift Height using AC Motor
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTB20-S | Type | Stacker |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 2.0t |
| Fuel | Electric | Load Center | >500mm |
| Lift Height | >5000mm | Condition | New |
| Name | 2.0ton Standing Electric Stacker | Model | Htb20s |
| Lifting Height | Max To 5.5m | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Feature | EPS |
| Transport Package | Sea-Worthy Packing For Exporting | Specification | 2110X850X2070MM |
| Trademark | HYDER | Origin | China |
| HS Code | 84272099 | Supply Ability | 3000 Sets/Year |
| Package Size | 225.00cm * 100.00cm * 225.00cm | Package Gross Weight | 1220.000kg |
| Lead Time | 1 Days (1 - 10 Pieces) To Be Negotiated ( > 10 Pieces) | Customization | Available |
| After-sales Service | Available | Warranty | 12 Months |
| Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. | Support Payment In USD | |
| Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description

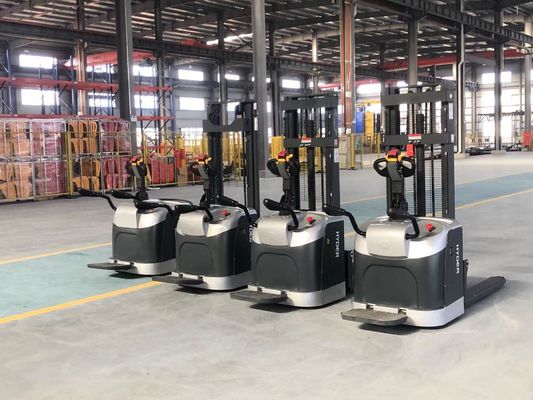

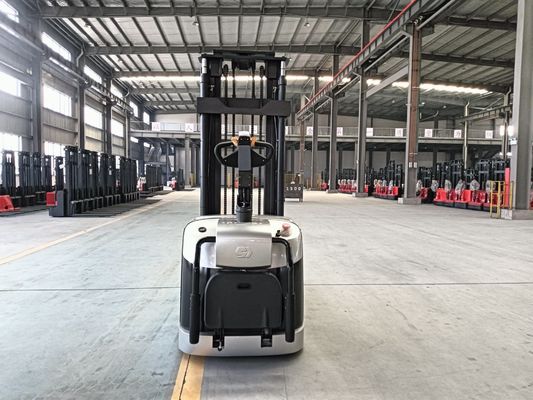

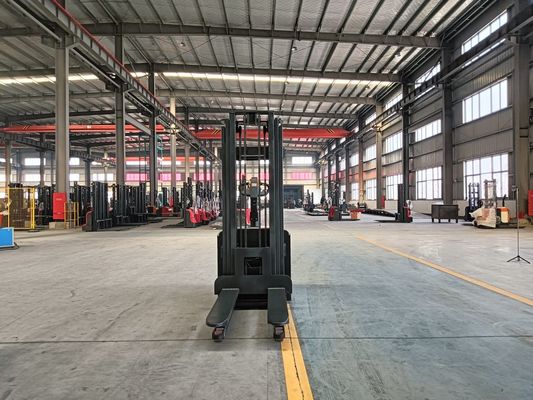

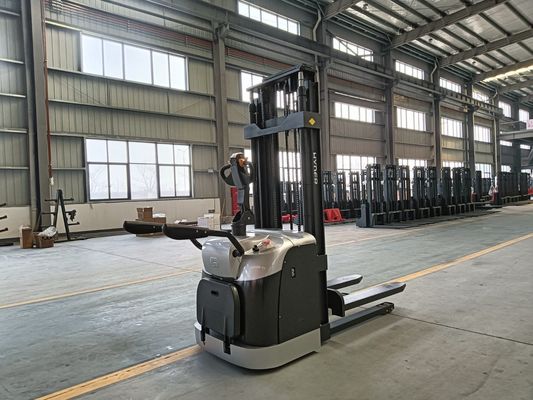

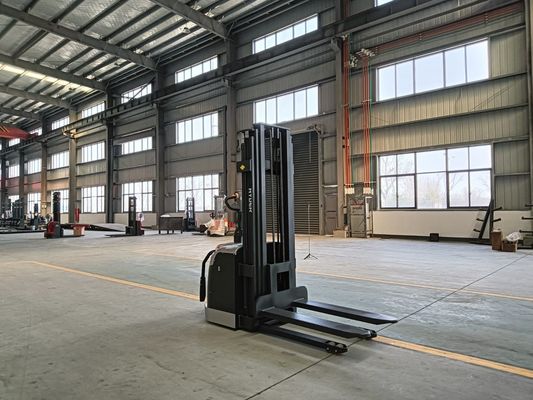

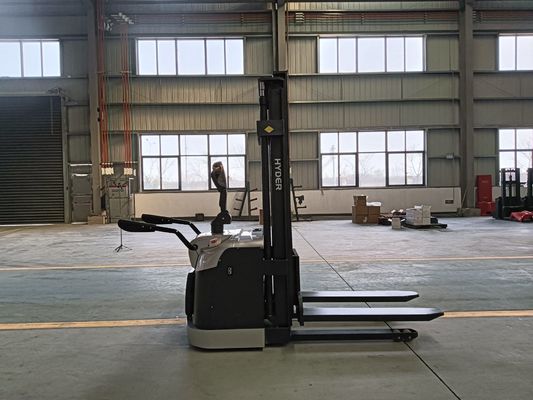

Warehouse Full Electric Standing-on Pallet Stacker forklift electric stacker-2000kg-5.5M lifting height
The electric stacker is a kind of industrial storage equipment powered by a motor and powered by a battery. Its main function is to carry out operations such as stacking, unloading, and handling with pallets. It is an industrial vehicle required by modern factories, workshops, and warehouses. Electric stackers are widely used in factories, workshops, warehouses, distribution centers and distribution centers, ports, docks, stations, airports and other places that require logistics, and can enter containers and warehouses for operation.
*Energy -saving design
*24V electrical system for different use
* Cost-effective deign with AC Motor
*EPS function optional
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
* Complete steel cover and side guards
*24V electrical system for different use
* Cost-effective deign with AC Motor
*EPS function optional
*Fingertip control of all functions
*Direction reverse switch on handle
*Emergency Power disconnect
* Complete steel cover and side guards
| Standing - on Stacker | ||||||||
| 1 | Manufacturer | HYDER | ||||||
| 2 | Model | HTB20-SA | HTB20-SB | HTB20-SA | HTB20-SA | |||
| 3 | Power type | Battery | Battery | Battery | Battery | |||
| 4 | Rated load capacity | kg | 2000 | 2000 | 1500 | 2000 | ||
| 5 | Load center | mm | 500 | 500 | 500 | 500 | ||
| 6 | Operate type | Standing on | Standing on | Standing on | Standing on | |||
| 7 | Total length | mm | 860 | 860 | 860 | 860 | ||
| 8 | Mast closed height | mm | 2080 | 2080 | 2080 | 2080 | ||
| 9 | Lift height | mm | 3000 | 3000 | 3000 | 3000 | ||
| 10 | Mast extended height | mm | 3500 | 3500 | 3500 | 3500 | ||
| 11 | Min working aisle width | mm | 2500 | 2500 | 2500 | 2500 | ||
| 12 | Fork mini ground clearance | mm | 85 | 85 | 85 | 85 | ||
| 13 | Min turning radius | mm | 1612 | 1612 | 1612 | 1612 | ||
| 14 | Fork size(L*W*H) | mm | 1150*180*55 | 1150*180*55 | 1100*170*55 | 1100*170*55 | ||
| 15 | Max lifting speed (no load) | mm/s | 100 | 100 | 100 | 100 | ||
| 16 | Max lifting speed (full load) | mm/s | 560 | 560 | ||||
| 17 | Max driving speed (no load) | km/h | 5.5 | 5.5 | 5.5 | 5.5 | ||
| 18 | Max driving speed (full load) | km/h | 4.5 | 5.5 | 4.5 | 4.5 | ||
| 19 | Max gradeability(full /noload) | % | 5.0/7.0 | 5.0/7.0 | 3.0/5.0 | 3.0/5.0 | ||
| 20 | Driving motor | kw | AC2.0(vertical) | AC1.5(horizontal type) | DC0.75 | AC1.5 | ||
| 21 | Lifting motor | kw | 2.2 | 2.2 | DC2.2 | 2.2 | ||
| 22 | Total weight | kg | 1250 | 1150 | 730 | 750 | ||
| 23 | Battery capacity | V/AH | 24V/210AH | 24V/210AH | 24V/100AH | 24V/160AH | ||
| 24 | Chager | V/A | 24V/25A | 24V/25A | 24V/18A | 24V/18A | ||
| 25 | Mast protection | Yes(Acrylic) | Yes(Metal) | Yes(Metal) | Yes(Metal) | |||
| 26 | Bearing wheel size(front) | mm | 80X70 | 80X70 | 80X70 | 80X70 | ||
| 27 | Balance wheel size(black) | mm | 125X50 | 125X50 | 125X50 | 125X50 | ||
| 28 | Service Brake | Electric magnetic | Electric magnetic | Electric magnetic | Electric magnetic | |||
| 29 | Steering type | EPS | Mechanical | Mechanical | Mechanical | |||
| 30 | Working hours | h/cycles | 6-8 | 6-8 | 4.5/80 | 4.5/80 | ||
| 31 | Mast steel | Hrs | H shaped steel | H shaped steel | C shaped steel | C+H shaped steel | ||
HYDER mainly engaged in global warehousing and logistics business, and has 17+ years experiences forklift.Hyder products are Pallet truck series, Stacker series and Electric forklift series. All of them have passed the CE, BV, ISO and third-party detection institution test and certificate.
Hyder professional markting anlysis, sales, QC Systems and after-sales service teams online 24*7, whom providing high effecieny reply and solve customers proble, every forklift will be delivered after qualifying testing, so Hyder offers qualified products for the customers in more than 40 countries where the sales network has built, and get well-known repuation from Hyder servered customers.
Shaanxi hyder Intelligent Machinery Co., Ltd. based on responsible and diligent attitude towards each customer, which mission is becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage. etc.
