Hte25-S Electric Pallet Stacker for Warehouse Unloading and Handling Palletized Goods

Electric Pallet Stacker Unloading and Handling Palletized Goods for Warehouse

Product Description

The electric pallet truck uses the battery as the power source, the motor as the power, and drives the vehicle to walk through the gear transmission. The lifting of the fork depends on the DC motor and hydraulic transmission, and the oil cylinder moves up and down to lift the fork and the goods. Because the walking and lifting of the car are all electric, the driving mode is standing driving, and the steering operation is steering handle steering, so it has labor-saving, high efficiency, stable cargo operation, simple operation, safety and reliability, low noise, pollution etc. The forklift uses a 48-volt large-capacity battery, which greatly prolongs the use time after one charge.

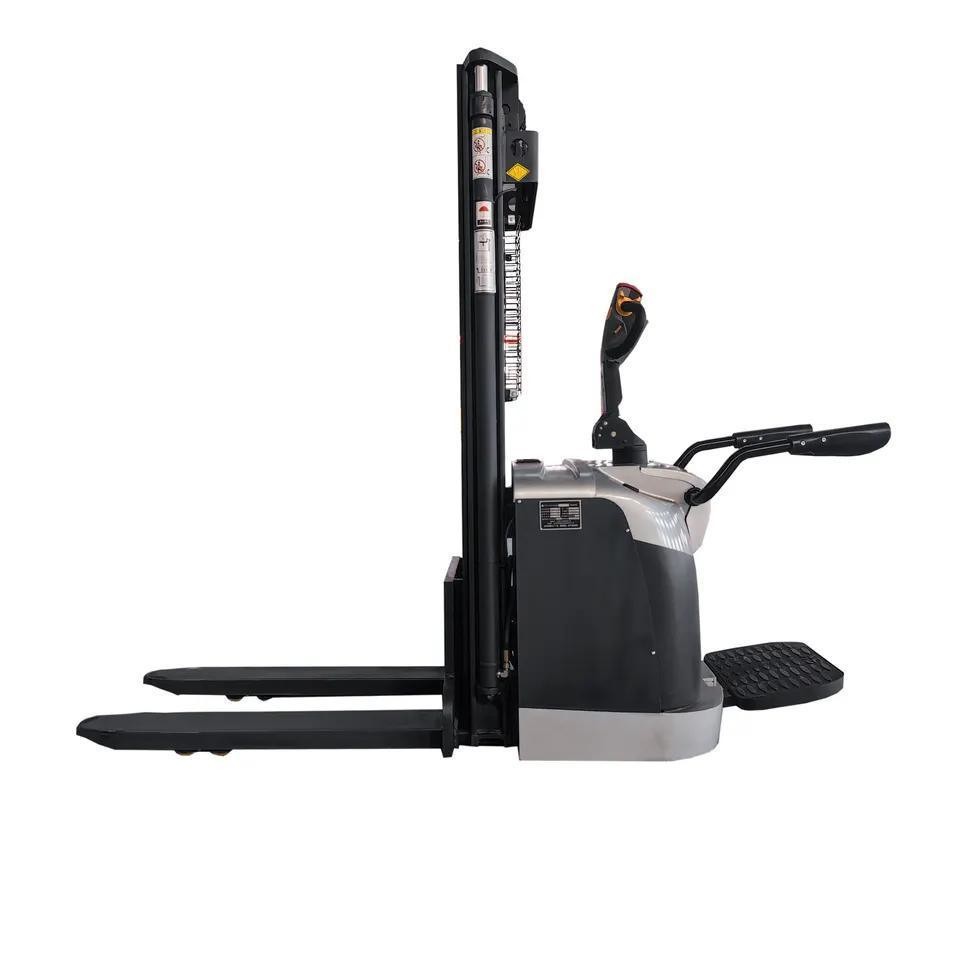

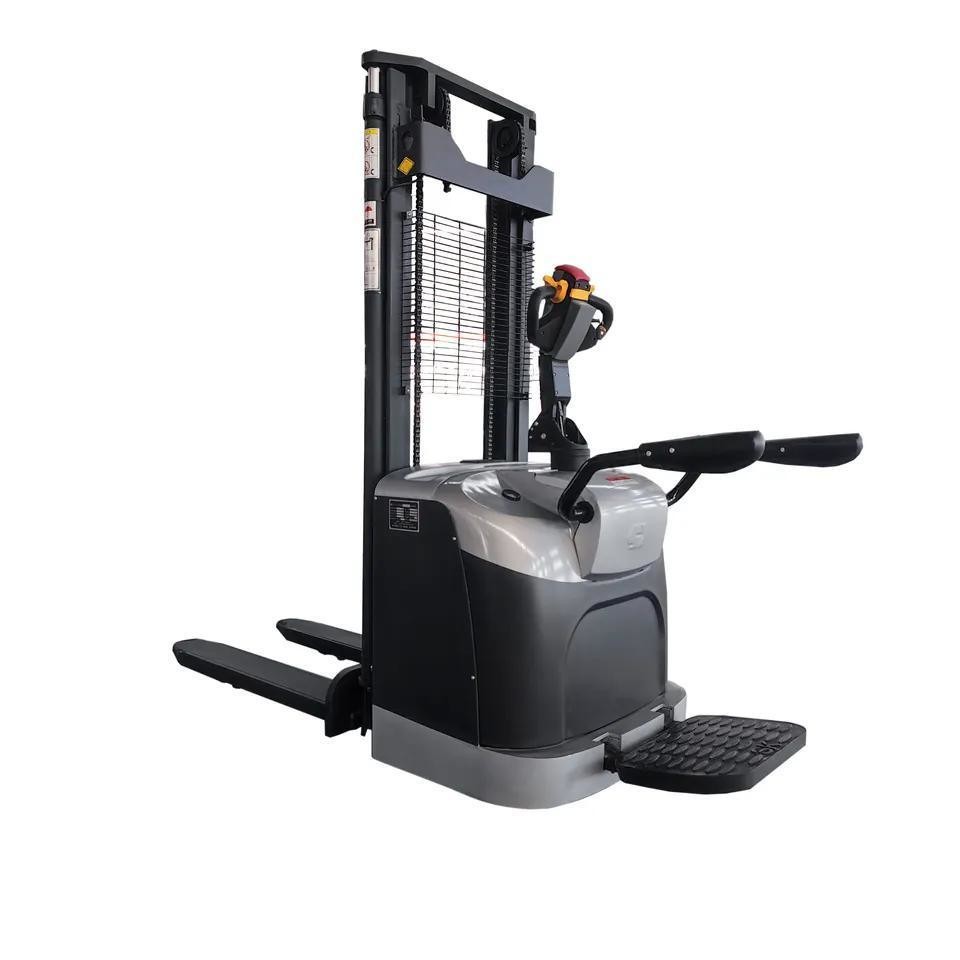

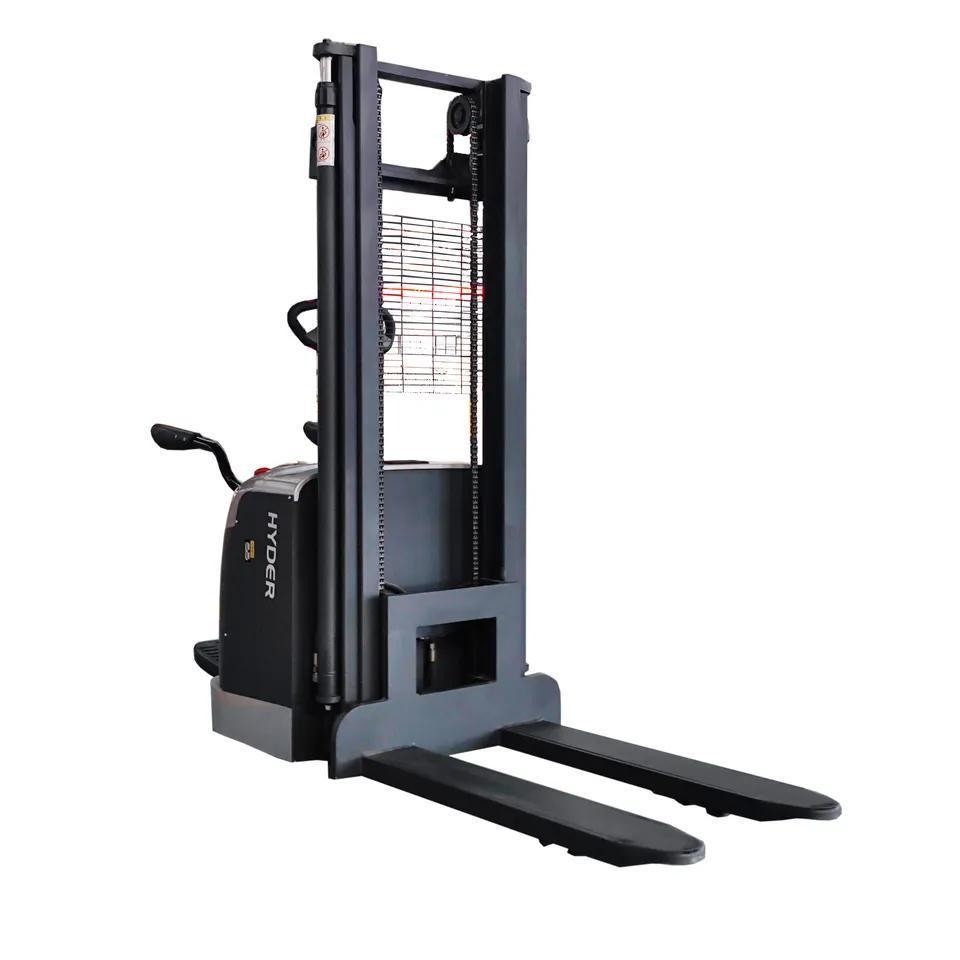

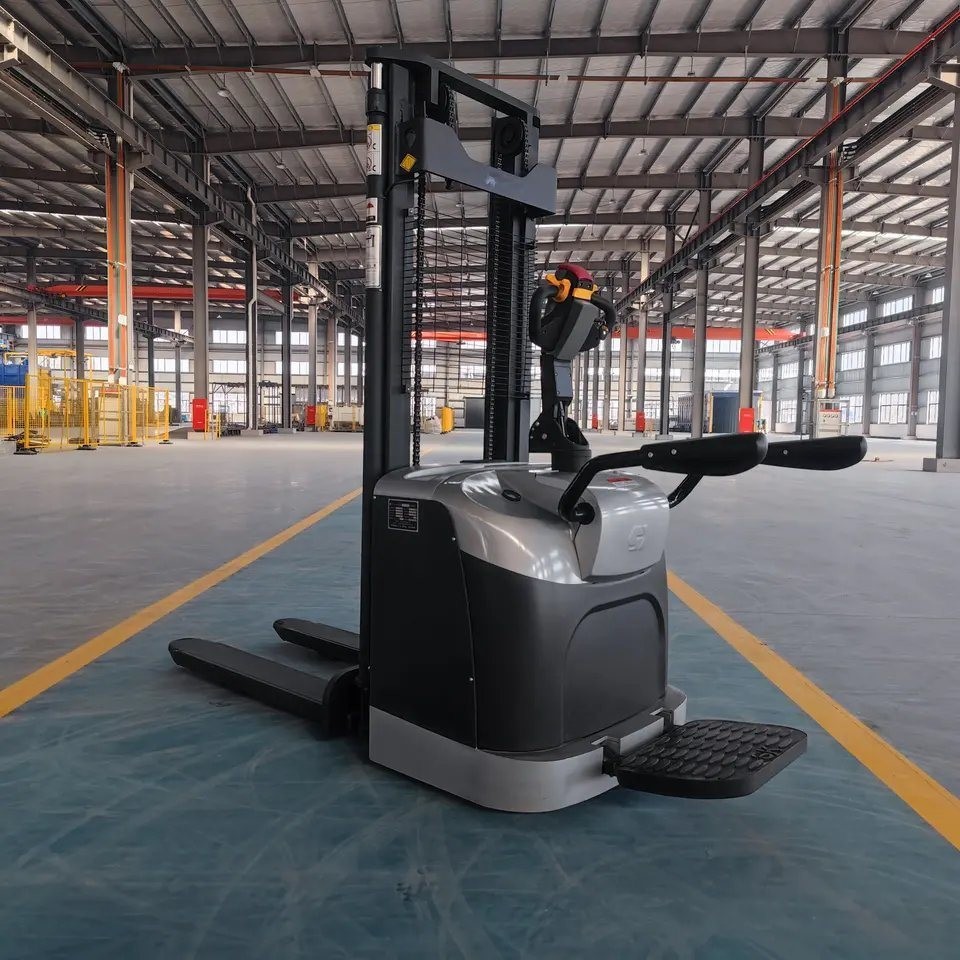

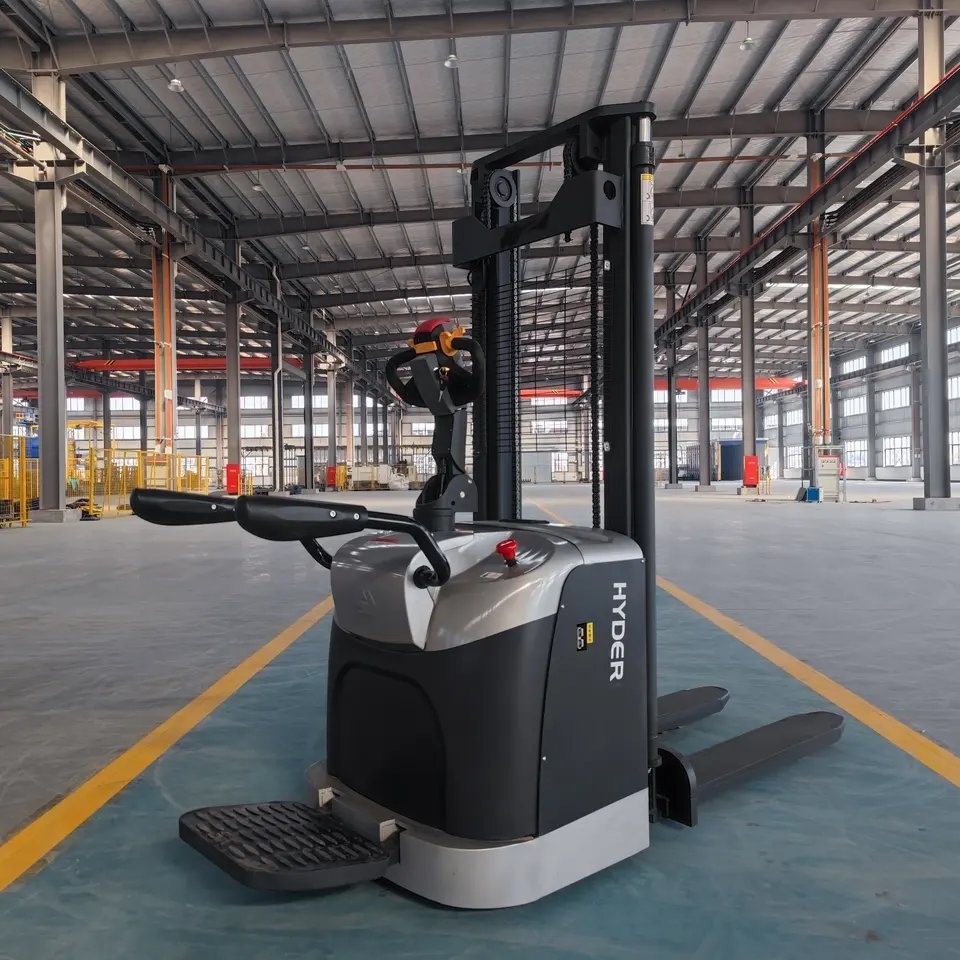

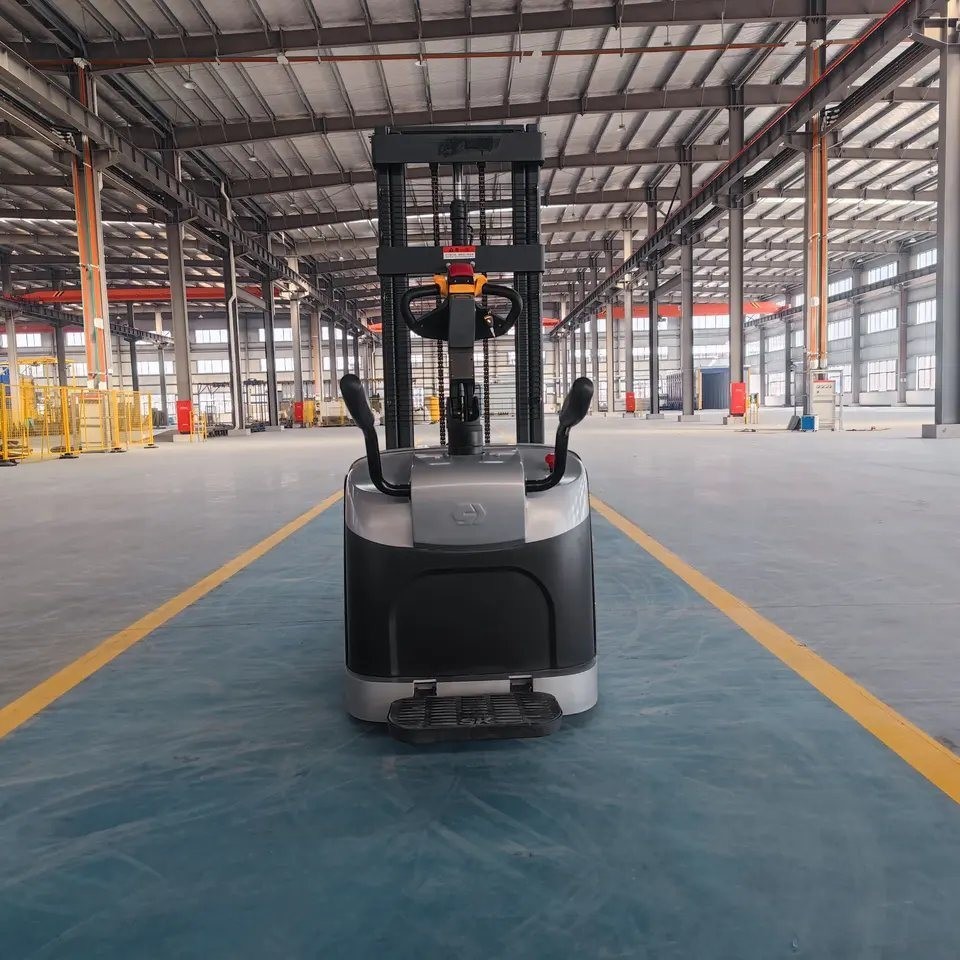

Detailed Photos







Product Parameters

NO.	Items	Unit	HTE25-S
01	Power type		Batery
02	Rated load capacity	kg	2500
03	Load centre	mm	600
04	operate type		Standing on
05	Total length ( Pedal closed>	mm	1990
06	Total width	mm	860
07	Min working aisle width 800*12 00 pallet		2500
08	Lifting height	mm	205
09	Min working aisle width 1000*1200 pallet	mm	2540
10	Fork Min ground dearance	mm	85
11	Min.Turning radius	mm	1813
12	Truck min ground clearance	mm	40
13	Fork size(L *W*H)	mm	1200*180*55
14	Fork outer width	mm	550/680
15	Type of drive control	/	MOS
16	Max lifting speed (no load)	mm/s	60
17	Max lifting speed (full load)	mm/s	55
18	Max dniving speed(no load)	km/h	6
19	Max driving speed(full load)	km/h	5.5
20	Max gradeability(full/no oad)	%	5.0/8.0
21	Driving motor	kw	AC1.5
22	Lifting motor	kw	2.2
23	Total weight	kg	810
24	Battery capacity	V/AH	24V240AH
25	Mast steel		Hsteel
26	charger	V/A	24V25A
27	Bearing wheelsize(front)	mm	80*60
28	Balance wheel size(back)	mm	125*50
29	Service Brake		Electric magnetic
30	Controller		CURTIS
31	steering		With EPS

Station-driving standard power distribution steering makes the control lighter and more flexible;

The latest CURTIS AC control system provide precise and stable control and higher efficiency;

Comfort

The platform is equipped with a shock absorption design, which greatly improves the ride comfort and reduces the fatigue of long driving.

It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand;

reliability

It adopts 5 points of low gravity design and the frame is made of high-strength steel plate frame structure.  The forklift has large rich bearing capacity and long service life;

All series adopt imported waterproof connectors and all wires and cables have reliable protection. It greatly improves the reliability of the electrical system;

High gantry and three-stage gantry adopt H-channel steel which has better rigidity and stability than C-channel steel;

safety

It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;

The stand-up guardrail is integrally formed to better protect the operator;

The driving speed of the station is automatically reduced with the increase of the steering angle;

With a falling buffer function to effectively protect cargo safety.

The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.

Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
