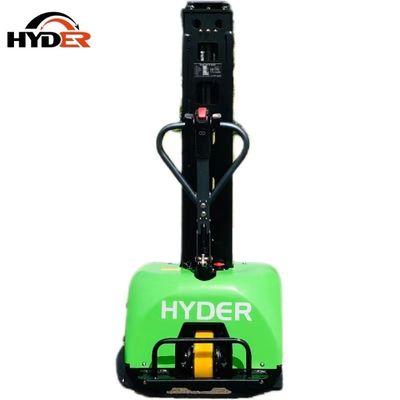

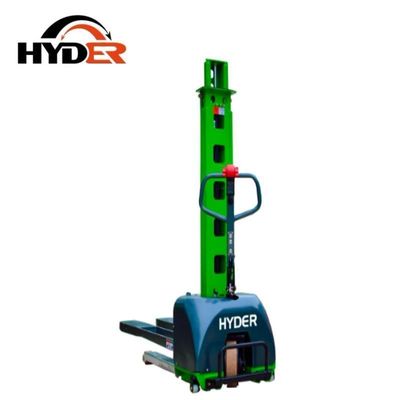

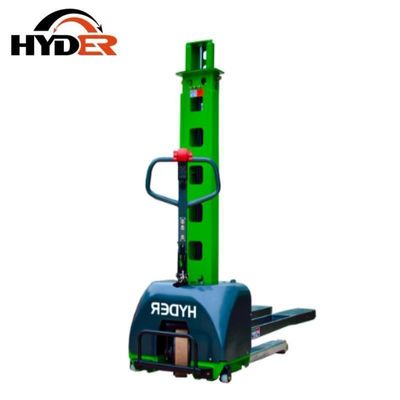

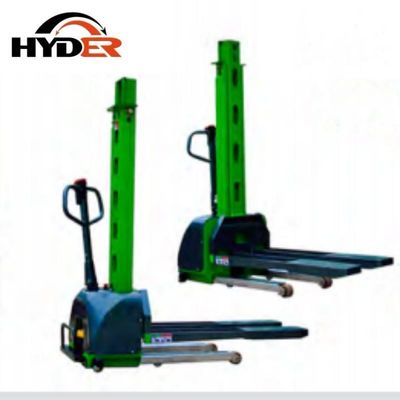

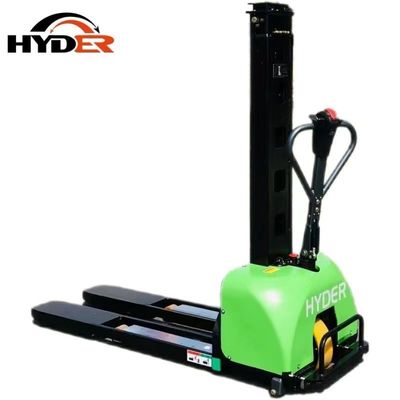

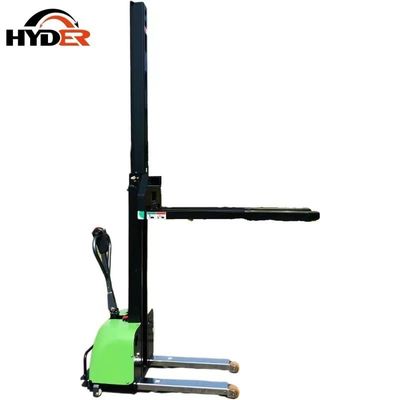

AC Motor Drive 500kg Capacity Self Loading Full Electric Pallet Stacker with Portable
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLF500 | Type | Stacker |
|---|---|---|---|
| Power | DC Motor | Load Capacity | 500kgs |
| Fuel | Electric | Load Center | 400mm |
| Lift Height | 800mm/1000mm/1300mm | Condition | New |
| Name | C Self Loading Forklift 500kgs Fully Electric Stac | Model | Hslf500 |
| Lifting Height | 1300mm | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Export |
| Specification | 1650*800*1166/1366/1666(H)mm | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 3000units/Year |
Product Description
China Manufactured 500kg Capacity Self Loading Full Electric Pallet Stacker with Portable Price
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
Full electric stacker, commonly known as a forklift, is a powerful and easy to use handling vehicle. It is widely used in factories, warehouses, stations, ports and other places. It can be used to pick up, carry, and stack unit goods, and can complete four compound operations of outbound, handling, loading and unloading, and stacking of finished goods.
| Full-Electric Pallet Stacker HSLF500/HSLF1000 | ||||||
| Characteristic | 1.1 | Model | No. | Unit | HSLF500 | HSLF1000 |
| 1.2 | Motor | Fully Electric | Fully Electric | |||
| 1.3 | Rated capacity | Q | kg | 500 | 1000 | |
| 1.4 | Load center | C | mm | 400 | 400 | |
| 1.5 | Fork distance | W3 | mm | 565 | 565 | |
| 1.6 | Fork length | L2 | mm | 1295 | 1295 | |
| 1.7 | Operate type | Self propelled | Self propelled | |||
| Wheels | 2.1 | Wheel(front/ back) | PU/ Nylon | PU/ Nylon | ||
| 2.2 | Drive wheel/ bearing wheel/Middle wheel No. | pcs | 1/4/2 | 1/4/2 | ||
| 2.3 | Drive wheel size | mm | Φ250×74 | Φ250×74 | ||
| 2.4 | Bearing wheel size | mm | Φ70×60 | Φ70×60 | ||
| 2.5 | Middle wheel size | mm | Φ65×30 | Φ65×30 | ||
| Size | 3.1 | Fork lift height | H | mm | 800/1000/1300 | 800/1000/1300 |
| 3.2 | Total cost when fork lowered | H1 | mm | 1166/1366/1666 | 1166/1366/1666 | |
| 3.3 | Total cost when fork lifted | H2 | mm | 2344/2544/2844 | 2344/2544/2844 | |
| 3.4 | Fork initial height | H3 | mm | 81 | 81 | |
| 1.5 | Wheel base | L0 | mm | 974 | 974 | |
| 3.6 | Total length | L1 | mm | 1650 | 1750/1650 | |
| 3.7 | Support leg length | L3 | mm | 771 | 771 | |
| 3.8 | Middle wheel position | L4 | mm | 177 | 177 | |
| 3.9 | Safety position when loading on forklift | L5 | mm | ≤130 | ≤130 | |
| 3.1 | Truck height | L6 | mm | 409 | 409 | |
| 3.11 | Truck width | W | mm | 658 | 658 | |
| 3.12 | Front wheel base | W1 | mm | 518 | 398/518 | |
| 3.13 | Fork width | B | mm | 253 | 193/253 | |
| 3.14 | Min. turning radius | Wa | mm | 1173 | 1173 | |
| Feature | 4.1 | Max driving wheel(turtle/ full load) | km/h | 0.5/3.0 | 0.5/3.0 | |
| 4.2 | Gradeability(full load/ unload) | % | 5/20 | 5/20 | ||
| Electric | 5.1 | Drive motor | kW | DC 0.6 | DC 0.6 | |
| 5.2 | Lifting motor | kW | DC 1.6 | DC 1.6 | ||
| 5.3 | Battery voltage | V | 48(Lithium) | 48(Lithium) | ||
| 5.4 | Battery capacity | Ah | 15 | 15 | ||
| Weight | 6.1 | Battery weight | kg | 5 | 5 | |
| 6.2 | Truck(Battery included) | kg | 290/300/320 | 368/382 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer, and we have our own factory and trading company.
Q2: How is Your Price Compare With Other Factories?
A2: We are professional forklift manufacturers with more than 12 years produce and export experience we can sure to provide
you more competitive price than other factories.
Q3: Can you guarantee your products?
A3: Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
Q4: Do you offer custom design?
A4: Custom design is surely available. We have very rich experience in customizing shelves.
Q5: Can you manufacture the forklift as per my requirement?
Yes, these items have other options: lifting height, tires, cabin,lights, fork length, colors,controller, engine, battery, charging voltage.etc
