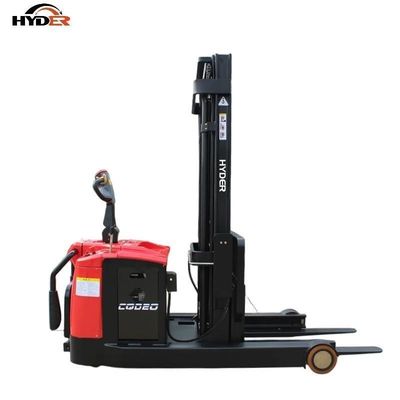

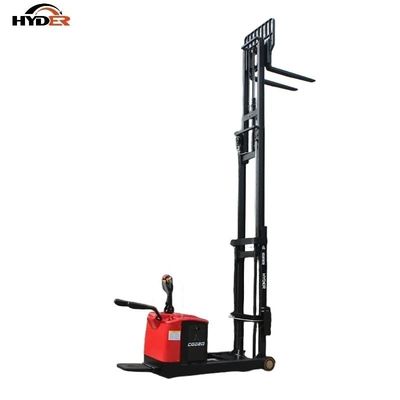

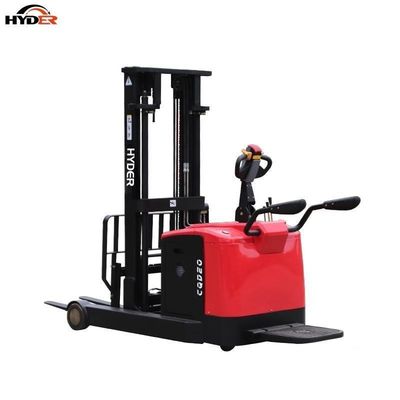

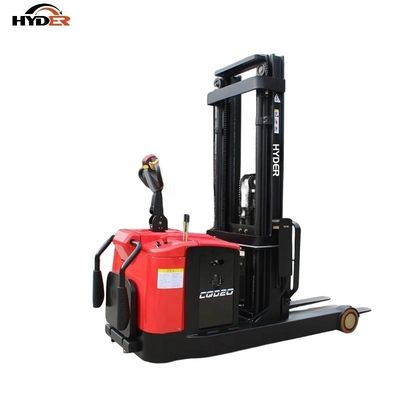

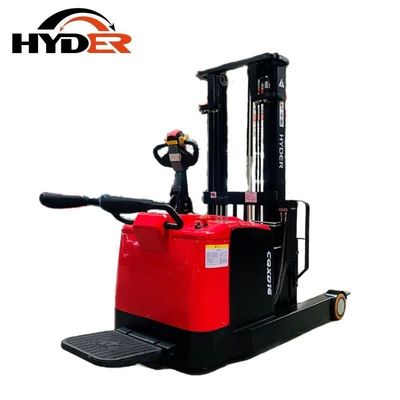

Electric Pallet Stacker with Lifting Height 2500-5000mm and Load Capacity 1.5t-2.0t
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HTFA15 | Type | Reach Forklift |
|---|---|---|---|
| Power | AC Motor | Load Capacity | 1.5t-2.0t |
| Fuel | Electric | Load Center | 500mm |
| Lift Height | >5000mm | Condition | New |
| Name | Stand-on Electric Reach Truck | Model | Htfa15 |
| Lifting Height | 2500-5000mm | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 2496*1390*2200 | Trademark | HYDER |
| Origin | China | HS Code | 84271090 |
| Supply Ability | 500 Units / Month | Customization | Available |
| After-sales Service | 1 Year After Delivery | Warranty | 12 Months |
| Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. | Support Payment In USD | |
| Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
Product Description
1.5ton 2ton Rider electric pallet stacker hydraulic stacker reach stacker price
Reach Forklift rely on the mast or fork frame to move back and forth to maintain balance. The mast or the fork frame of the reach-type forklift can move forward and backward.
The mast-type forklift refers to that the mast drives the fork to move forward during operation, and stretches out of the front wheel to pick up or put down the goods. The fork belt cargo is retracted so that the center of gravity of the cargo is within the support surface. The forward-moving forklift refers to that the shelf drives the fork to move forward outside the front wheels for operation, and the fork frame drives the fork to retract into the support plane when walking.
The Benefits of Using a Reach Truck in Your Warehouse
A reach truck is a versatile and efficient machine that can help improve your warehouse operations. Here are some of the key benefits of using a reach truck:
-
Increased Productivity: Reach trucks are designed to move pallets quickly and efficiently, which can help increase your warehouse productivity.
-
Improved Safety: Reach trucks are equipped with safety features such as stability control and anti-tip technology, which help prevent accidents and injuries.
-
Versatility: Reach trucks can be used for a variety of tasks, from loading and unloading trucks to moving pallets around your warehouse. They can also be used in narrow aisles, making them ideal for warehouses with limited space.
-
Cost-Effective: Investing in a reach truck can be a cost-effective solution for your warehouse. With their ability to move pallets quickly and efficiently, you can save time and money on labor costs.
-
Increased Storage Capacity: Reach trucks can help you maximize your storage space by allowing you to stack pallets higher than traditional forklifts. This means you can store more products in the same amount of space, which can help increase your profitability.
In conclusion, a reach truck is a valuable tool for any warehouse looking to improve its efficiency and productivity. With their versatility, safety features, and cost-effectiveness, they can help you move products quickly and efficiently while also maximizing your storage space.
| Performance | Maximum load capacity | Q | kg | 2000 |
| with load center at | C | mm | 600 | |
| Maximum lifting height | H3 | mm | 3000 | |
| Reach length | E | mm | 680 | |
| Tiltiing angle (up/down) | α/β | 4°/ 2° | ||
| Travel speed (without load) | km/h | 6 | ||
| Travel speed (with load) | km/h | 6 | ||
| Lifting speed (without load) | mm/s | 160 | ||
| Lifting speed (with load) | mm/s | 100 | ||
| Ascend slope ability (without load ) | % | 8 | ||
| Ascend slope ability (with load ) | % | 4 | ||
| Weight (without battery) | kg | 1780 | ||
| Dimensions | Overall length of frame(mast no reach) | L | mm | 2445 |
| Overall length (mast no reach) | L1 | mm | 2865 | |
| Overall length (mast reach) | L2 | mm | 3520 | |
| Overall width of frame | B | mm | 1030 | |
| Overhead guard height | mm | / | ||
| Mast lowered height | H1 | mm | 2050 | |
| Max height(mast lifted with backrest) | H2 | mm | 3855 | |
| Wheelbase | Y | mm | 1612 | |
| Fork length | mm | 1070 | ||
| Fork width | e | mm | 122 | |
| Fork lowered height | S | mm | 40 | |
| Fork spread width | mm | 250-740 | ||
| Min frounf height | m1 | mm | 52 | |
| Turning radius | Wa | mm | 1890 | |
| Min intersecting aisle width | Ast | mm | 2990 | |
| Tire | Front wheel | mm | ∅210*85 | |
| Drive wheel | mm | ∅230*75 | ||
| Caster wheel | mm | ∅115*55 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 1.5 | ||
| Hoist motor type | DC series motor | |||
| Rated output | kw | 3 | ||
| Battery | Voltage | V | 24 | |
| Capacity | AH | 240 | ||
| Weight | kg | 233 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
