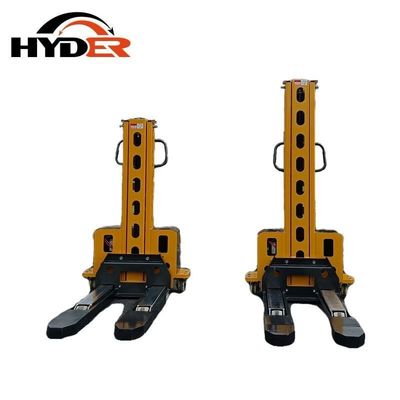

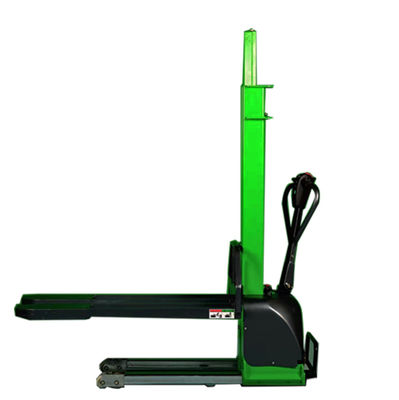

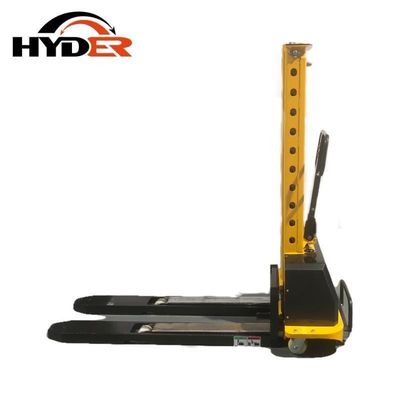

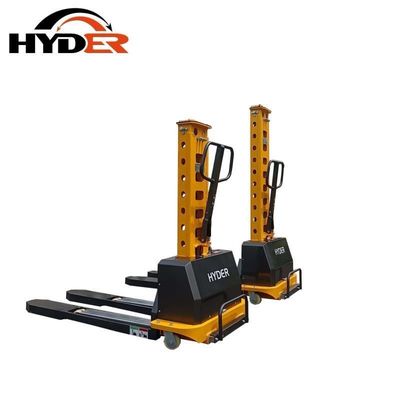

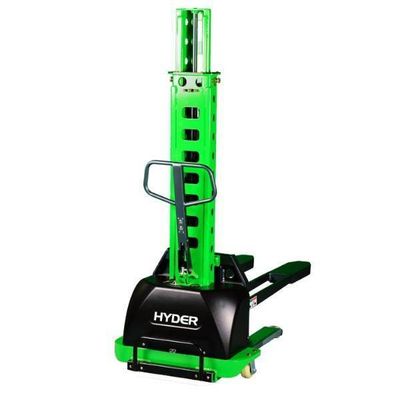

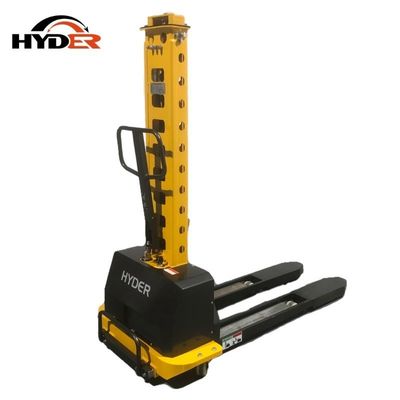

AC/DC Motor Electric Pallet Stacker with 700kg Load Capacity and 1300mm Lifting Height
| Place of Origin | China |
|---|---|
| Certification | ISO 9001 |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Sea-Worthy Packing for Exporting |
| Delivery Time | Peak Season Lead Time: 1-3 months Off Season Lead Time: one month |
| Payment Terms | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability | 3000 Sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | HSLS700 | Type | Electric Forklift |
|---|---|---|---|
| Power | AC Motor/DC Motor | Load Capacity | 700kg |
| Fuel | Electric | Load Center | 400 |
| Lift Height | 800/1000/1300/1600mm | Condition | New |
| Name | Semi Electric Self Lifting Stacker | Battery | Semi Electric |
| Color | Yellow, Green, Etc | Drive Motor | AC Motor |
| Lift Motor | DC Motor | Transport Package | Sea-Worthy Packing For Exporting |
| Specification | 1650*786*1180(H)mm | Trademark | HYDER |
| Origin | China | HS Code | 842710 |
| Supply Ability | 3000 Units Per Year |
Product Description
Hot Product Self Loading Electric Pallet Stacker 700kg 1300mm Lifting Height
Semi-electric stacker is an important equipment widely used in the modern logistics and storage industry. It occupies a place in the industry due to its moderate price and small size. It is mainly used in logistics handling places such as warehouses and workshops. The battery is not used as a power source, driven by a DC motor, and the oil pump is driven to supply pressure, and the walking is driven by manpower. It is suitable for short-distance pallet transportation and stacking operations, and requires flat ground, and is now only allowed to operate inside the warehouse
| Semi Electric Self Loading Pallet Stacker-HSLS700 | |||||
| Features | 1.1 | Model | HSLS700 | ||
| 1.2 | Motor | Battery | |||
| 1.3 | Rated load capacity | Q | kg | 700 | |
| 1.4 | Load center | c | mm | 400 | |
| 1.5 | Wheel distance | L0 | mm | 788 | |
| 1.6 | Front wheel distance | W1 | mm | 405 | |
| 1.7 | Back wheel distance | W2 | mm | 690 | |
| 1.8 | Operator type | Walkie | |||
| Size | 2.1 | Front wheel size | mm | φ80×60 | |
| 2.2 | Multi direction wheels | mm | φ100×50 | ||
| 2.3 | Middle wheel size | mm | φ65×30 | ||
| 2.4 | Length of Outriggers | L3 | mm | 735 | |
| 2.5 | Max fork lifting height | H | mm | 800/1000/1300 | |
| 2.6 | External Distance Between Forks | W3 | mm | 565 | |
| 2.7 | Fork length | L2 | mm | 1150 | |
| 2.8 | Fork Thickness | B1 | mm | 60 | |
| 2.9 | Fork width | B2 | mm | 190 | |
| 2.1 | Total length | L1 | mm | 1552 | |
| 2.11 | Total width | W | mm | 809 | |
| 2.12 | Overall Height (Mast Closed) | H1 | mm | 1155/1355/1655 | |
| 2.13 | Overall Height (Max. Fork Height) | H1 | mm | 1875/2275/2875 | |
| 3.1 | Lifting speed | mm/s | 55 | ||
| 3.2 | Lowering speed | mm/s | 70 | ||
| 3.3 | Lifting motor | kw | 0.8 | ||
| 3.4 | Battery voltage | V | 12 | ||
| 3.5 | Battery capacity | Ah | 45 | ||
| Weight | 4.1 | Battery weight | kg | 13.5 | |
| 4.2 | Total Weight(Include Battery) | kg | 230/240/255 | ||
The head office of HYDER Intelligent Machinery in Yanta district, Xi'an city, our engineer team all have more than 17 years working experience in the fields of forklift. Professional international sale and after sales service team can offer you quick response and effective service. HYDER has built long and stable cooperation with many well-known domestic and oversea enterprises and our products have passed the CE, BV, ISO and third-party detection institution test and certificate. HYDER owns a high efficient team and complete QC system and offers qualified products for the customers in more than 40 countries where the sales network has built.
Shaanxi hyder Intelligent Machinery Co., Ltd. is committed to becoming a high-end intelligent storage and logistics equipment recognized and trusted by the world. We build our national brand with advanced technology, mainly engaged in global warehousing and logistics business.
Our products are Pallet truck series, Stacker series and Electric forklift series. By repeatedly testing in the market and adopting customer feedback, while reducing costs, we are committed to every small function, improving work efficiency, reducing employee operation safety risks, and improving customer use efficiency.
Q 1 .what the lifting height ?
A: The lifting height usually takes 800mm/1000mm/1300mm , max to 1600mm
Q2.Do you have the capacity at 2 ton, lifting height at 2 .8 M ?
A: No, the reasonable lifting height is below 1.6m, If over that , there some problems :
1. Overloading: If the stacker is overloaded with excessive weight, it will lead to operational inefficiencies and potentially damage the equipment.
2.Excessive lifting height and the need for additional counterweights: Increasing the lifting height should adding more counterweights to maintain stability, which, in turn, increases the overall weight of the equipment. This can make the operation cumbersome and less convenient.
3.Safety risks during loading: If the lifting height is too high, the center of gravity of the cargo can rise during the loading process, making it more prone to accidents. Particularly, when there's a manual pushing process during loading, the likelihood of the stacker tipping over may increase.
4.Unsuitable for specific working conditions: If the stacker's extension height is too high, it might not fit inside the cargo compartment of box-type trucks.
5.The design principle of self lifting stacker is focused on ease of operation, portability, compactness, and efficiency.
If additional weight or excessive lifting height is added, it would contradict the original design intent and result in counterproductive consequences, including wasted functionality, inconvenient operation, and misalignment with the intended purpose.
6.Costs have increased across the board, resulting in a twofold increase in expenses. The cost-effectiveness is low, and from a product marketing perspective, it does not meet the company's profit requirements."
